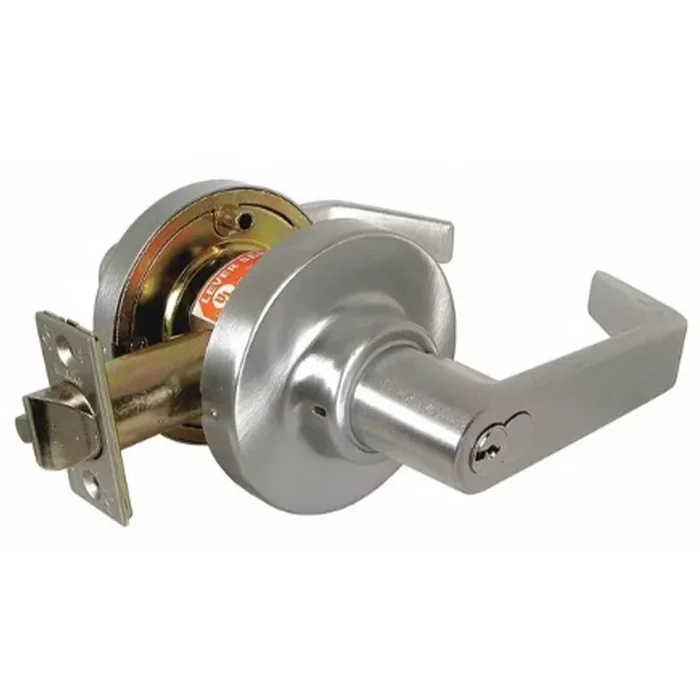

LFIC Corbin 7 Pin – Storeroom Clutched Lever Lockset, Satin Chrome

Description

Marks Hardware 195RF/26D-F13 USA Cylindrical Lock

Marks USA Survivor Series locksets are the most durable cylindrical lever locksets. The series is offered in four lever styles, conventional cylinder, IC core for “Best” size cores and Schlage® as well as others. The Survivor Series locksets are backed by Marks lifetime mechanical warranty. All functions are available in six standard finishes, are UL Listed for 3-hour fire rating, and satisfy ADA requirements.

Attributes

Accessible: Yes

Ada Compliance: Yes

Alternate Codes: 195RF/26D-F13, 195RF26DF13

Ansi: A156.2

Ansi Function: F86

Baa Qualified: Yes

Backset: 2-3/4″

Bolt Projection: 9/16″

Bore Hole Diameter: 2-1/8″

Burglar Rated: No

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Certifications: A156.2, ANSI, UL Listed 3 Hour

Commercial Residential: Commercial

Country of Origin: Usa

Country of origin: USA

Cylinder Type: Interchangeable , Less Core

Door Application: Lock Sets

Door Thickness: 1-5/8″-1-7/8″

Finish: 626/US26D

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Finish : Satin Chrome

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 120 min

Function: Storeroom

Grade: Grade 1

Handing: Non-Handed

Installation: Commercial

Latch Bore Diameter: 1″

Latch Throw: 9/16″

Latchbolt Type: Deadlatch

Lever Design: American

Lever/ Knob Cylinder Prep: Corbin 7 pin IC core

Leverknob Design: 195 – American Lever

Leverknob Design Family: Straight Return Lever

Limited Warranty: Lifetime

Lock Face Size: 1-1/8″ x 2-1/4″

Manufacturer: Marks USA

Origin: USA

Pack Qty: 1

Pins: 7

Projection: 2-3/4″

Restrictions: None

Rose/ Escutcheon: 3-7/16″ Diameter, Spring Loaded

Roseescutcheon Design: 3-7/16″ Rose Diameter

Screws: Combination

Series: 95 Line

Std Latch Backset Dim: 2-3/4″

Std Latch Number: 1834A

Std Latch Type: Dead Latch (Guarded)

Std Strike Height: 4-7/8″

Std Strike Number: 1135

Std Strike Type: ASA Curved Lip Strike

Std Strike Width: 1-1/4″

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL 10C

Unit of Measure: Each

Resources

• Marks Survivor Series Cylindrical Locksets Cut Sheet
