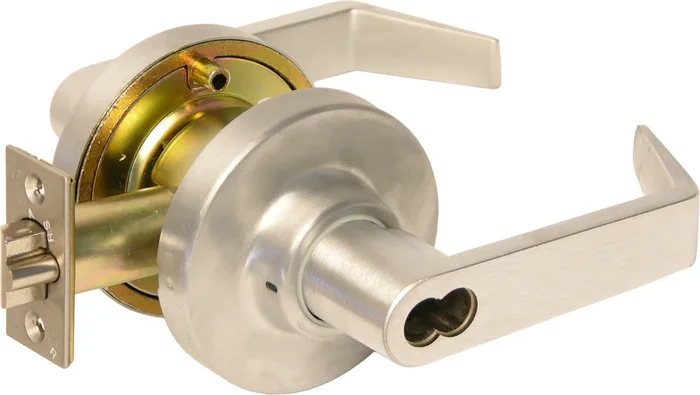

LFIC Corbin 6 Pin Entry Clutched Lever Lockset – Grade 1 Satin Bronze

Description

Marks Hardware 195RAB/10-F12 Corbin LFIC 6 Pin Entry Clutched Lever Lockset, Grade 1, Satin Bronze

Marks Hardware 195RAB/10-F12 LFIC Corbin 6 Pin – Entry Clutched Lever Lockset is engineered for durability and security in high-traffic environments. This large format interchangeable core lockset features a robust 2-3/4″ backset and is constructed to exceed BHMA Grade 1 specifications by 300%, ensuring it can withstand over 3.6 million cycles. The innovative clutch mechanism of the Survivor leverset significantly reduces wear on internal components. When locked, the levers disengage from the retractor, allowing them to swing freely without resistance. This not only mitigates wear but also eliminates issues like lever droop, leading to a longer-lasting and lower-maintenance solution. This lockset is designed with solid cast zamac levers and features a stainless steel nose latch for added durability. It accommodates door thicknesses from 1-5/8″ to 1-7/8″ and comes with a Marks “C” keyway cylinder, complete with two keys. The lockset also meets 3-hour fire rating standards and includes a 4-7/8″ ASA curved lip strike for secure installation. With its satin bronze finish, the Marks Hardware 195RAB/10-F12 not only provides exceptional functionality but also enhances the aesthetic of any commercial space. Enjoy peace of mind knowing you’ve chosen a product backed by a lifetime mechanical warranty.

LFIC Corbin 6 Pin – Entry Clutched Lever Lockset, Large Format IC, Less Core, 2-3/4in Backset, ANSI Strike, Grade 1, 612/US10 Satin Bronze

Notice: The info below is not item specific.

Cylindrical locksets are designed for use in situations where durability is the deciding factor. Our cylindrical lock chassis are all constructed with cast retractors on bronze roller bearings. This strong, durable component gives our cylindrical sets the ability to last millions of cycles and is available in knob and lever sets. The Survivor leverset has a unique “clutch” mechanism that radically reduces the wear and abuse that typical cylindrical lever sets endure. When locked, the levers of the Survivor disengage from the retractor and other interior mechanisms of the lock. The levers of the Survivor swing freely, without resistance. This reduces the amount of wear on lock components and eliminates “lever droop”. The use of a clutch results in longer lasting, lower maintenance, eloquent solution.

Features:

• High quality, longer lasting, lower maintenance design
• Competitively-priced for exceptional value
• Exceeds BHMA grade 1 spec by 300%, over 3.6 million cycles
• Unique stainless steel “clutch” and bronze bearings dramatically reduce wear and abuse & eliminates lever droop
• Marks Lifetime Mechanical Warranty
• 3-Hour Fire Rated; 2-3/8″ and 2-3/4 Backsets

Specifications:

• Backset: 2-3/4″
• Latch #1834, Front: 1-1/8″ x 2-1/4″; Throw: 9/16″; stainless steel nose
• Levers: Solid cast zamac; w/ 1/2″ return (except 395 & 495)
• Roses: Thru-bolted, 3-7/16″ dia, spring loaded 2-#10 thru-bolts
• Strike: #1135, 4-7/8″ ASA curved lip strike
• Door Thickness: 1-5/8″ to 1-7/8″; For 1-3/8″ door use K1904 spacer
• Cylinder: Marks “C” keyway, 6 pin w/ 2 keys

Functions:

• N: Passage
• L: Privacy
• P: Patio
• DC: Communicating
• AB: Entry
• AQ: Exit
• S: Classroom
• F: Storeroom
• DW: Institution
• DA: Vestibule
• T: Corridor
• TO: Time out
• TK: Hospital/privacy
• GB: Store door
• BS: Service station lock
• H : Hotel
• DB: Classroom intruder
• DO: Dummy trim outside
• DT: Full dummy trim
• NB: Communicating passage
• FB: Communicating storeroom
• SB: Communicating classroom
• FEL: Electrically locked
• FEU: Electrically unlocked

Finishes:

• 3 – Bright brass
• 32D – Stainless steel
• 10B – Dark bronze
• 26D – Satin chrome

Attributes

Alternate Codes: 133832, 195RAB/10-F12, 195RAB10F12

Backset: 2-3/4″

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Certifications: A156.2, ANSI, UL Listed 3 Hour

Cylinder Type: Interchangeable , Less Core

Door Application: Lock Sets

Door Thickness: 1-5/8″-1-7/8″

Finish Code: 612

Finish Color: Satin Bronze

Fire Rated: Yes

Fire Rating: 120 min

Function: Entrance

Grade: Grade 1

Latch Throw: 9/16″

Latchbolt Type: Deadlatch

Lever Design: American

Lever/ Knob Cylinder Prep: Corbin 6 pin IC core

Manufacturer: Marks USA

Rose/ Escutcheon: 3-7/16″ Diameter, Spring Loaded

Series: 95 Line
