Lever Handle Assembly LH/LHR, ADA Compliant Lever – Adams Rite Manufacturing

Description

Adams Rite 4568-501-130 Aluminum Door Trim

Designed to operate 4300, 4500 and 4900 Series Deadlatches by a natural downward hand movement, these handles incorporate an activator cam disc that mounts on the handles escutcheon and fits solidly into the cylinder hole of the latch.

Features

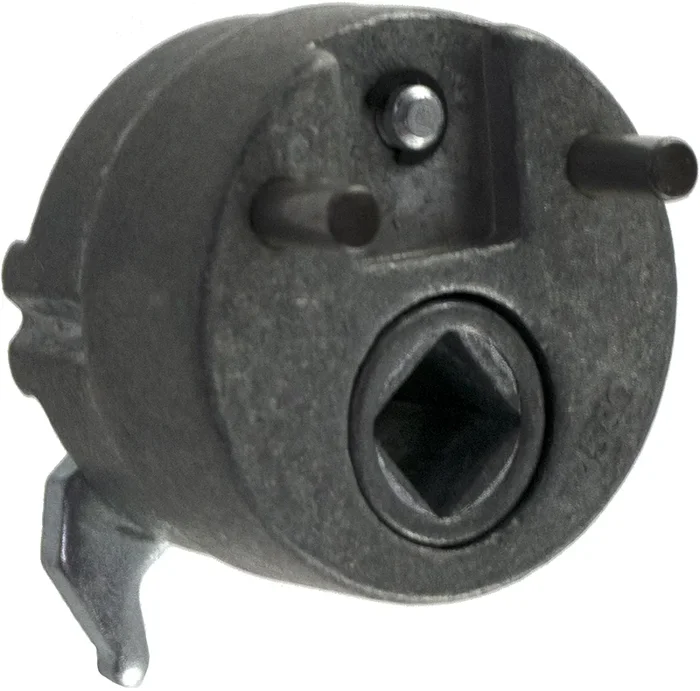

• Cam Plugs: Secured in latch body by cylinder setscrew, plug is also rigidly tied to handle escutcheon by hardened steel pins. Handing can be reversed by removing a spring clip, reversing the cam, and replacing the clip.
• Escutcheons: Both handles shown use the same 1-3/8″ x 4″ escutcheon, designed to match the clean lines of a narrow stile door. Steel mounted base is secured by hidden screws and has two large helical compression springs. (One becomes a “spare” once handing is given.) A 1/4″ square heat-treated spindle is part of escutcheon assembly, which interlocks with the cam plug. Finished to match lever.
• Standard Package: Packed individually with cam plug handed LH or RH as specified. Mounting screws included. Shipping weight: 1/2 lb.
• Levers: Lever of cast aluminum, in choice of 130 Satin Aluminum, 121 Dark Bronze, or 119 Black. Modern European styling offers a generous hand grip with shank offset from the narrow stile jamb for hand safety. 4569 has return end to meet anti-snag code requirements.
• Options: Can be ordered for left or right hand door, but is easily reconfigured in the field to accommodate either door swing. The three standard handles shown are for 1-3/4″ thick doors. Available on special order for doors up to 3-1/4″.

Attributes

Alternate Codes: 128666, 4568-501-130, 4568-501628, 4568501130, 4568501628, ADR4565-501-130, ADR4568-501628

Baa Qualified: Yes

Base Material: VARIES

Category: Glass Aluminum Hardware, Levers, Handles & Pulls, Locking Hardware, Lock Sets

Commercial Residential: Commercial

Compatibility: 4700, 4900, AdamsRite 4500

Country of Origin: Usa

Country of origin: USA

Door Application: Glass Aluminum Hardware

Door Thickness: 1-3/4″ – 2″

Door Thickness Max: 2″

Door Thickness Min: 1-3/4″

Finish: Satin Aluminum

Finish Code: 628

Finish Color: Satin Aluminum

Finish : Satin Aluminum Ritecoat Paint

For Use With: 4300, 4500 and 4900 Series

Function: Deadlatch Trim Lever

Hand: LH

Handing: Left Handed, Left Handed Reverse

Installation: Commercial

Knob/ Lever Design: Straight

Knob/ Lever Style: Lever

Lever Knob Design: Flat Euro Lever, No Return

Lever Style: Lever For Deadlatches, Straight

Leverknob Design: Flat Euro Lever, No Return

Limited Warranty: 5 Years

Origin: USA

Pack Height: 2.75″

Pack Length: 5″

Pack Qty: 1

Pack Volume: 61.88 in³

Pack Width: 4.5″

Product Height: 2.34″

Product Length: 3.95″

Product Width: 1.34″

Rose Escutcheon Design: Rectangle

Roseescutcheon Design: Rectangle

Screws: Machine

Series: 4560

Ship Weight: 0.7 lbs.

Subtype: Aluminum Door Trim

Supplier: Adams Rite

Type: GLASS ALUMINUM HARDWARE

Unit of Measure: Each
