Description

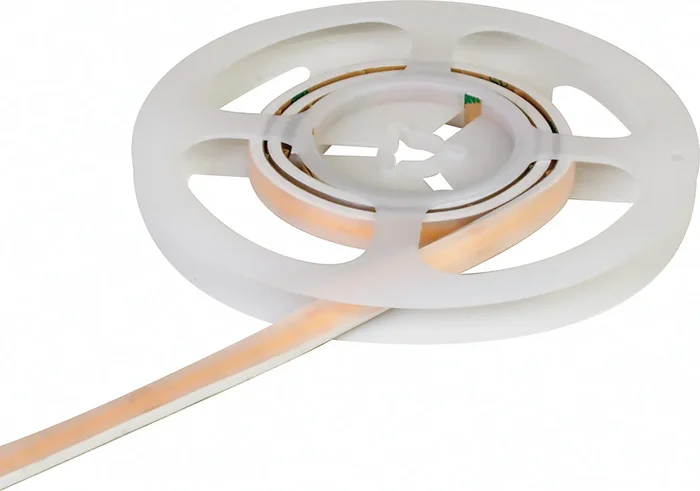

Hafele 833.02.305 LED 1203 COB Tunable White 2-Wire Strip, Medium Intensity, 12V
Hafele 833.02.305 LED 1203 COB Complete Strip offers versatile and customizable lighting solutions for any space. With a width of 10 mm (3/8″) and a generous length of 2.2 m (86 9/16″), this tunable white strip features a color temperature range from 2700 to 5000K, allowing you to create the perfect ambiance. The uniform light output ensures that LED dots remain invisible, providing a seamless lighting experience. Encased in a silicone sleeve, this strip eliminates the need for an additional profile, making it ideal for closet storage spaces and other applications. The IP67 degree of protection allows for installation in various environments, ensuring durability and reliability. The strip can easily be shortened every 25 mm (1″) and can be divided into two sections, providing flexibility for your design needs. Control the color temperature effortlessly using a 4-way Connect Mesh distributor or a manual 6-way distributor, with compatible switches sold separately. The 2 m (78 3/4″) lead cable, pre-attached at both ends, simplifies installation. With a luminous efficacy of 82–90 lm/W and a luminous flux of 246–270 lm per meter, the Hafele 833.02.305 LED strip combines functionality and sophistication for a truly modern lighting solution.
LED 1203 COB Complete Strip, Tunable White 2-Wire, Medium Intensity, 12V
10 mm width (3/8″), 2.2 m (86 9/16″) length
Tunable color temperature (2700–5000K) Uniform light output: LED dots are not visible Encased in a silicone sleeve eliminating the need for a profile
Suitable for use within closet storage spaces
Color temperature can be controlled via 4-way Connect Mesh distributor (850.00.912) paired with any Häfele Connect mesh wireless switch; a 4-way press-to-pair distributor (850.00.810) paired with a Kinetic double rocker wall switch; or with a 6-way distributor with manual color temperature control (833.95.894). Please order separately. Can be shortened every 25 mm (1″). A 2 m (78 3/4″) lead cable (5.0A/18 AWG) is soldered on each end of the roll. Strip can be divided into 2 sections. 10 x 3.8 mm (3/8″ x 5/32″) dado leaves a 1.2 mm crown when installed. Silicone compresses when a shelf is pushed against it.
Attributes
Color temperature: 2700 – 5,000 K
Degree of protection: IP67
Height (inch): 5 mm (3/16″)
Installation: For recess mounting, For surface mounting
Installation reference: IP67 rating allows strip to be used in almost any application
Length (inch): 2.2 m (86 9/16″)
Light color: Warm white to cool white
Luminous efficacy: 82 – 90 lm/W
Luminous flux/m: 246 – 270 lm
Nominal voltage: 12.00 V
Order reference: Max. strip length (visual): 5 m (196 13/16″) Maximum visual strip length applies for an imperceptible drop in luminous flux of max. 30%
Supplied with: 1 roll Each roll is supplied with leads pre-attached to each end
Wattage/m: 3.00 W
Width (inch): 10 mm (3/8″)
Resources
- Certificate of Compliance_E489945_Vol1-Sec4-202401103
- Hafele_Lighting_ 2024 | Page 63
- Hafele_Lighting_ 2024 | Page 67
- Technical data sheet
