Description

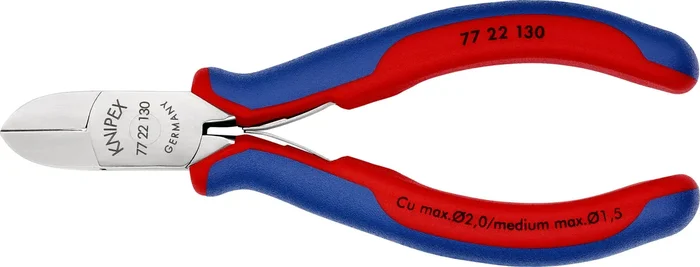

77 22 130 Electronics Diagonal Cutter For fine cutting work, e.g. in electronics and fine mechanics. Load-optimised for a more direct feel when working. Sturdy, zero-backlash box joint. Low-friction double spring for gentle and even opening. The polish or mirror polish together with a fine film of oil offer effective rust protection – no circuit faults caused by peeling chrome from plated tools. Cutters additionally laser hardened, cutter hardness at least 60 HRC. Narrow sleeves pulled up to the head of the pliers enable the tool to be guided securely and comfortably, also between thumb and index finger. round head, with small bevel. cutting edge hardness approx. 60 HRC. – Cutting capacities medium hard wire (diameter): Ø 1.5mm- Cutting capacities soft wire (diameter): Ø 0.3 – 2mm- Jaw length (B): 18mm- Jaw thickness (joint) (D): 9mm- Head width (A): 15mm
| Specifications | |
|---|---|
| EF000019 | false |
| EF000051 | EV005866 |
| EF001438 | 130 |
| EF001463 | false |
| EF001814 | false |
| EF005383 | false |
| EF006645 | 15 |
| EF009013 | – |
| EF009014 | false |
| EF025409 | – |
| Weight | 124 |
| Griffe | with multi-component grips |
| Kopf | mirror polished |
| Facette | cutting edges with small bevel |
| Schneidwert weicher Draht | 0.3 – 2 |
| Kopfbreite | 15 |
| Backenlänge | 18 |
| Backendicke (Gelenk) | 9 |
| Gelenkausführung | box joint |
| Artikellänge | 130 |
| RoHs | n |
| Knipex | |
| EAN | 4003773040446 |
| Item No. | 77 22 130 |
