Description

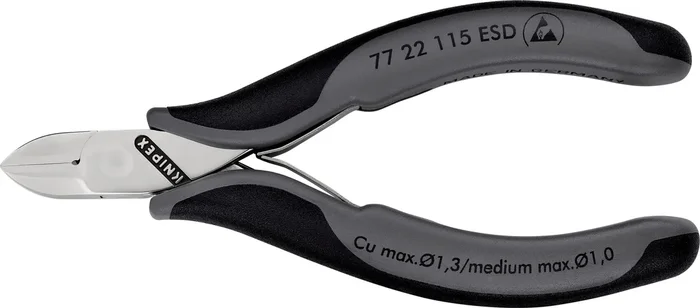

77 22 115 ESD Electronics Diagonal Cutter ESD For fine cutting work, e.g. in electronics and fine mechanics. Electrically discharging handles – dissipative. Sturdy, zero-backlash box joint. Low-friction double spring for gentle and even opening. The mirror polish together with a fine film of oil offer effective rust protection – no circuit faults caused by peeling chrome from plated tools. Cutting edges additionally induction-hardened, cutting edge hardness approx. 62 HRC. Handles with two-colour multi-component grips black/grey. round head, without bevel. cutting edge hardness approx. 57 HRC. – Cutting capacities medium hard wire (diameter): Ø 1.0mm- Cutting capacities soft wire (diameter): Ø 0.3 – 1.3mm- Jaw length (B): 14mm- Jaw thickness (joint) (D): 7.5mm- Head width (A): 11mm- ESD: yes
| Specifications | |
|---|---|
| EF000019 | false |
| EF000051 | EV005866 |
| EF001438 | 115 |
| EF001463 | false |
| EF001814 | false |
| EF005383 | false |
| EF006645 | 11 |
| EF009013 | – |
| EF009014 | true |
| EF025409 | – |
| Weight | 70 |
| Griffe | with multi-component grips |
| Kopf | mirror polished |
| Facette | cutting edges without bevel |
| Schneidwert weicher Draht | 0.3 – 1.3 |
| Kopfbreite | 11 |
| Backenlänge | 14 |
| Backendicke (Gelenk) | 7.5 |
| Gelenkausführung | box joint |
| Norm DIN | DIN ISO 9654, DIN EN 61 340-5 |
| Artikellänge | 115 |
| RoHs | n |
| Knipex | |
| EAN | 4003773025115 |
| Item No. | 77 22 115 ESD |
