KIT – SVR Surface Vertical Rod Exit Device – Von Duprin

Description

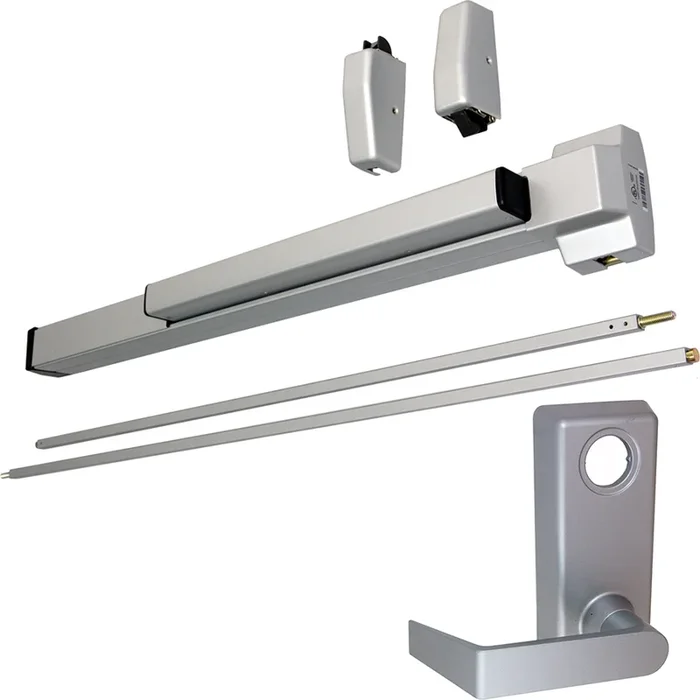

Von Duprin 2227L-689-36 LHR SVR Surface Vertical Rod Exit Device, 230L Lever Trim, LHR, Grade 1, Aluminum

Von Duprin 2227L-689-36 LHR KIT is a robust surface vertical rod exit device designed for single and double doors, ensuring reliable and secure panic exit solutions. This UL-listed device meets ANSI A156.3 – 2008 Grade 1 standards, making it an ideal choice for high-traffic environments. Its non-handed design allows for easy installation on doors with stiles as narrow as 3 5/8″, providing flexibility in various applications. The 2227 series accommodates door heights up to 7 feet, with optional extension rods for taller doors. Featuring hex key dogging as standard, this exit device ensures simplicity and ease of use during emergency situations. The deadlocking anti-friction latch bolts provide a secure closure, with a 5/8″ throw for added security. Available in a sleek powder-coated aluminum finish (689), the device is designed to withstand the rigors of everyday use while maintaining its aesthetic appeal. It offers a range of trim options, including the 230L lever trim, which combines functionality with modern design. With features like electrification options for enhanced security, the Von Duprin 2227L-689-36 LHR KIT is a reliable choice for professionals seeking top-tier exit hardware solutions.

KIT – SVR Surface Vertical Rod Exit Device, 230L Lever Trim, LHR Left Hand Reverse/Reversible Handing, 36in x 84in, Hex Dogging, Grade 1, 689/SP28 Powder-Coated Aluminum

Notice: The info below is not item specific.

2227 Surface mounted vertical rod exit device for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8″ (92 mm). The device is non-handed.

Features:

• Available for rim and surface-mounted vertical applications
• Several trim and electronic options
• Non-handed design

Specifications:

• Device Functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device Lengths:
• 3′ (914 mm) see minimum door opening chart in cut sheet
• 4′ (1219 mm) see minimum door opening chart in cut sheet
• Door Height: 7′ (2134 mm) standard door height. Note: 3′ extension rods available for door heights up to 10′ (3048 mm).
• Device Centerline From Finished Floor: 39 13⁄16″ (1011 mm)
• Center Case Dimensions: 4 5⁄32″ (105 mm) x 3 3⁄16″ (81 mm) x 2 3⁄8″ (60 mm)
• Mechanism Case Dimensions: 2″ (51 mm) x 2 3/8″ (60 mm)
• Projection: Push bar neutral – 3 11/16″ (94 mm) push bar depressed – 2 7/8″ (73 mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8″ (16 mm) throw
• Fasteners and Through Bolts (SNB): Includes screw pack for 1 3/4″ (44 mm) and 2 1/4″ (57 mm) wood and metal doors; optional SNB available for device
• Electrified Options:
• ALK: Alarm exit kit
• CON: Allegion Connect
• LX: Latch bolt monitor switch
• LX-LC: Latch bolt monitoring, low current
• LX-RX: Latch bolt monitoring, request to exit
• LX-RX-LC: Latch bolt monitoring, request to exit low current
• QEL: Quiet electric latch retraction
• RX: Request to exit
• RX2: Double request to exit
• WP-RX: Waterproof request to exit
• Mechanical options:
• GBK: Glass bead kit
• HW: Hurricane device — Wind-Only
• PL: Pullman latch
• LBR: Less bottom rod
• AX: Accessible device, LBR only
• Dogging Feature: Hex key dogging standard
• Dogging Options: LD: less dogging, QEL option available
• Strikes:
• Top: 299 – Dull black
• Bottom: 248L4 and 304L – Unfinished

Minimum Door Opening for 3′ Device:

• 25.875″ (657 mm):
• Stop height: 1⁄2″
• Single door: Yes
• Double door: Vert. x Vert.
• 26.000″ (664 mm):
• Stop height: 5⁄8″
• Single door: Yes
• Double door: Vert. x Vert.

Standard Trim:

• EO: No outside trim
• Exit only
• ANSI: 01
• DT: Dummy Trim
• Trim : 210DT
• Pull when dogged (not recommended for fire device)
• Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
• Projection: 1-31/32″ (42 mm)
• ANSI: 02
• NL: Night latch
• Trim : 210NL
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
• Projection: 1-31/32″ (42 mm)
• ANSI: 03
• NL-OP: Night latch
• Trim : 110NL-MD, 110NL-WD
• Key retracts latchbolt, pull required
• ANSI: 03
• Cylinder Type: Rim
• TP: Thumbpiece
• Trim : 230TP
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Escutcheon Plate Size: 3″ x 12-1/16″ x 3/32″ (76 x 306 x 2 mm)
• Pull Center to Center: 5-1/2″ (140 mm)
• Projection: 2″ (51 mm)
• ANSI: 05
• K: Knob
• Trim : 2227K
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3″ x 4-25/32″ x 3/32″ (76 x 121 x 2 mm)
• Projection: 2-15/16″ (75 mm)
• ANSI Function: 08
• L: Lever
• Trim : 2227L
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3″ x 6-3/8″ x 15/16″ (76 x 162 x 24 mm)
• Projection: 2-5/8″ (67 mm)
• ANSI Function: 08

Finishes:

• 526 – Powder coated chrome
• 622 – Powder coated matte black
• 689 – Powder coated aluminum
• 695 – Powder coated dark bronze
