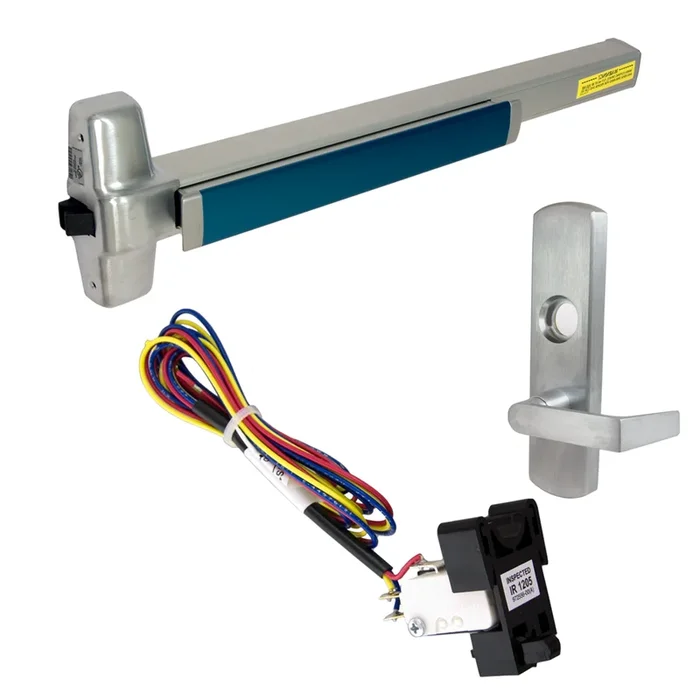

KIT – RX Request to Exit Switch with Rim Exit Device – Von Duprin

Description

Von Duprin RX-98L-626-36-RHR 06 KIT – RX Rim Exit Device 996L-06 Lever Trim RHR 36in Hex Dogging Grade 1 Satin Chrome

Von Duprin RX-98L-626-36-RHR 06 KIT combines advanced security features with exceptional ease of use, making it an ideal choice for high-traffic areas such as schools, hospitals, and government facilities. This rim exit device is UL listed for panic exit hardware and certified to ANSI/BHMA A156.3, grade 1, ensuring reliable performance and safety. Designed for flexibility, the RX-98L features a universal center case that allows for easy upgrades to meet evolving security needs. Its modular design simplifies maintenance with extensive serviceable parts, while the hex key dogging feature provides additional control. The device is configured for right-hand reverse handing and accommodates doors ranging from 2’4″ to 3′ in width. With a deadlocking latch bolt featuring a 3/4″ throw, the RX-98L guarantees security without compromising accessibility. The variety of available electrical and mechanical options, including a request to exit switch, enhances its usability in various applications. The satin chrome finish not only adds a sleek appearance but also provides durability against wear and tear. Whether you’re upgrading existing hardware or installing a new system, the Von Duprin RX-98L-626-36-RHR 06 KIT stands out for its robust design, versatility, and high performance, making it an essential component for modern security solutions.

KIT – RX (Request to Exit Switch), Rim Exit Device, 996L-06 Lever Trim, RHR Right Hand Reverse/Reversible Handing, 36in, Hex Dogging, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

98 and 99 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. The 98 device has a smooth mechanism case and the 99 device has a grooved case. The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch). Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs – consult template).

Features:

• Built-in flexibility with a universal center case that provides migration path to new technology
• Highly modular allowing product upgrades to meet customer’s changing needs
• Easy maintenance with extensive serviceable parts options
• Modular design allows ability to upgrade device to keep up with changing technology and meet a facility’s changing needs
• Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
• A variety of field-configurable options and retrofit kits available

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
• Device Lengths:
• 3′ – 2’4″ to 3′ (711mm to 914 mm) Door size
• 4′ – 2’10” to 4′ (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor:
• 39-13/16″ (1011 mm)
• 39-11/16″ (1008 mm) with mullion
• Center case dimensions: 8″ x 2 3⁄4″ x 2 3⁄8″ (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1⁄4″ x 2 1⁄4″ (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16″ (97 mm)
• Push bar depressed – 3-1/16″ (78 mm)
• Latch Bolt: Deadlocking, 3⁄4″ (19mm) throw
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1 3⁄4″ (44mm) and 2 1⁄4″ (57mm) thick metal or wood doors. (optional 425 SNB available)
• Electrical Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• GBK: Glass bead kit
• PN: Pneumatic latch retraction
• QM: Quiet mechanical
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• XP: Extra protection
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• CD-CX: Chexit cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• SD: Special center case dogging
• LD: Less dogging
• DI: Dogging indicator
• CI: Cylinder dogging indicator
• Strikes: 299 – Dull black

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4″ mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4″ mortise cylinder

Finishes:

• 605 – Bright brass
• 606 – Satin brass
• 612 – Satin bronze
• 625 – Bright chrome
• 626/626AM – Satin chrome
• 628 – Aluminum, anodized
• 710 – Duranodic dark bronze
• 711 – Matte black/anodized
• 643e – Aged bronze

Attributes

Access Type: Request to Exit

Alternate Codes: VONRX-98L-626-36-RHR 06

Category: Electrified Panic Devices, Panic Devices & Exit Alarms

Certifications: A156.3, ANSI, ANSI/UL 305, BHMA

Device Width: 36″

Door And Lock Sensor: Pushbar Monitor

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Rim Exit

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Function: Classroom, Lever

Grade: Grade 1

Handing: Right Handed Reverse

Lever Design: 6

Manufacturer: Von Duprin

Series: 98/99

Strike Type: Standard
