KIT – RX Request to Exit Switch – Von Duprin Alarmed Rim Exit Device

Description

Von Duprin RX-22DT-689-36 ALK KIT – RX Alarmed Rim Exit Device, 36in, No Dogging, Grade 1, Powder-Coated Aluminum

Von Duprin RX-22DT-689-36 ALK KIT combines advanced security features with robust design, making it an ideal choice for high-traffic areas. This alarmed rim exit device is engineered for both single and double doors, providing a reliable panic exit solution. With a Grade 1 rating per ANSI A156.3, 2014 standards, it ensures top-tier performance and durability. The RX-22DT features a non-handed design, meaning it can be easily installed on various door configurations. Its 36-inch length fits standard openings, making it versatile for numerous applications. The device is equipped with a deadlocking latch bolt with a 3/4″ throw, offering enhanced security against unauthorized access. The included 210DT offset pull dummy trim adds functionality without compromising aesthetics. Among its standout features is the ALK (Alarm Exit Kit), which activates an alarm when the exit device is used, providing an additional layer of security. The device also accommodates a range of electrified options, such as the request to exit functionality and latch bolt monitoring, to enhance your security system. Finished in powder-coated aluminum, the RX-22DT is designed for longevity and resilience. With easy installation and versatile application, this exit device is an optimal choice for ensuring safety in your building.

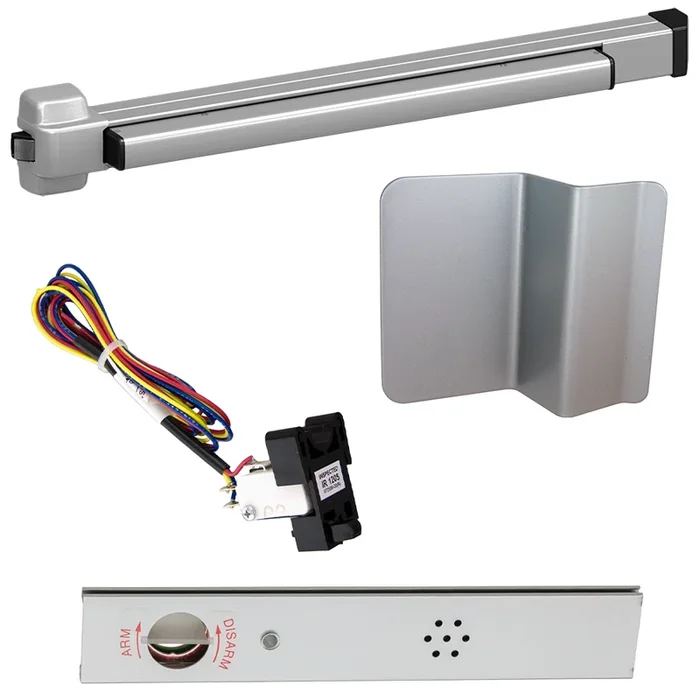

KIT – RX (Request to Exit Switch), Alarmed Rim Exit Device, 210DT Offset Pull Dummy Trim, 36in, No Dogging, Grade 1, 689/SP28 Powder-Coated Aluminum

Notice: The info below is not item specific.

22 Rim exit device for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are grade 1 rated to ANSI A156.3, 2014. Devices cover stock hollow metal doors with 161 door prep cutouts. Fits door stiles as narrow as 3 13⁄16″ (97 mm). The device is non-handed.

Features:

• Available for rim and surface-mounted vertical applications
• Several trim and electronic options
• Non-handed design

Specifications:

• Device Functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device Lengths:
• 3′ (914 mm) see minimum door opening chart in cut sheet
• 4′ (1219 mm) see minimum door opening chart in cut sheet
• Device Centerline From Finished Floor:
• 39-13/16″ (1011 mm)
• 39-11/16″ (1008 mm) with mullion
• Center Case Dimensions: 4 5⁄32″ (105 mm) x 3 3⁄16″ (81 mm) x 2 3⁄8″ (60 mm)
• Mechanism Case Dimensions: 2″ (51 mm) x 2 3/8″ (60 mm)
• Projection: Push bar neutral – 3 11/16″ (94 mm) push bar depressed – 2 7/8″ (73 mm)
• Latch Bolt: Deadlocking, 3/4″ (19 mm) throw
• Fasteners and Through Bolts (SNB): Includes screw pack for 1 3/4″ (44 mm) and 2 1/4″ (57 mm) wood and metal doors; optional SNB available for device
• Notes:
• Black end caps are standard for all finishes, with the exception of 526.
• Optional black metal end caps are available; order #900397 as a separate line item. Additional charges apply.
• All devices configured in 526 finish will be supplied with a metal endcap in 526 finish as standard.
• Order 900397-622 for the 622, 689, and 695 devices, and 900397-526 for the 526 device (service).
• Electrified Options:
• ALK: Alarm exit kit
• CON: Allegion Connect
• LX: Latch bolt monitor switch
• LX-LC: Latch bolt monitoring, low current
• LX-RX: Latch bolt monitoring, request to exit
• LX-RX-LC: Latch bolt monitoring, request to exit low current
• QEL: Quiet electric latch retraction
• RX: Request to exit
• RX2: Double request to exit
• WP-RX: Waterproof request to exit
• Mechanical options:
• AX: Accessible device
• GBK: Glass bead kit
• HW: Hurricane device – Wind-Only
• Dogging feature: Hex key dogging standard
• Dogging options: LD: less dogging, QEL option available
• Strikes: 299 – dull black

Minimum Door Opening for 3′ Device:

• For 4′ device, add 6″ (152 mm)
• 26.500″ (673 mm):
• Stop height: 1⁄2″
• Strike: 299
• Single door: Yes
• 25.687″ (652 mm):
• Stop height: 1⁄2″
• Strike: 1439
• Single door: Yes
• 27.000″ (686 mm):
• Stop height: 1⁄2″
• Strike: 299
• Double door w/mullion: 4754, 4854, 4954
• 25.812″ (656 mm):
• Stop height: 1⁄2″
• Strike: 299
• Double door w/mullion: 5654
• 25.750″ (679 mm):
• Stop height: 1⁄2″
• Strike: 1408
• Double door w/mullion: 5754
• 26.562″ (675 mm):
• Stop height: 1⁄2″
• Strike: 1606
• Double door w/mullion: 1654
• 26.750″ (679 mm):
• Stop height: 1⁄2″
• Strike: 299
• Single door: Yes
• 25.937″ (659 mm):
• Stop height: 5⁄8″
• Strike: 1439
• Single door: Yes
• 27.125″ (689 mm):
• Stop height: 5⁄8″
• Strike: 299
• Double door w/mullion: 4754, 4854, 4954
• 26.687″ (678 mm):
• Stop height: 5⁄8″
• Strike: 299
• Double door w/mullion: 5654
• 25.875″ (657 mm):
• Stop height: 5⁄8″
• Strike: 1408
• Double door w/mullion: 5754
• 26.687″ (678 mm):
• Stop height: 5⁄8″
• Strike: 1606
• Double door w/mullion: 1654

Standard Trim:

• EO: No outside trim
• Exit only
• ANSI: 01
• DT: Dummy Trim
• Trim : 210DT
• Pull when dogged (not recommended for fire device)
• Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
• Projection: 1-31/32″ (42 mm)
• ANSI: 02
• NL: Night latch
• Trim : 210NL
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
• Projection: 1-31/32″ (42 mm)
• ANSI: 03
• NL-OP: Night latch
• Trim : 110NL-MD, 110NL-WD
• Key retracts latchbolt, pull required
• ANSI: 03
• Cylinder Type: Rim
• TP: Thumbpiece
• Trim : 230TP
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Escutcheon Plate Size: 3″ x 12-1/16″ x 3/32″ (76 x 306 x 2 mm)
• Pull Center to Center: 5-1/2″ (140 mm)
• Projection: 2″ (51 mm)
• ANSI: 05
• K: Knob
• Trim : 2227K
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3″ x 4-25/32″ x 3/32″ (76 x 121 x 2 mm)
• Projection: 2-15/16″ (75 mm)
• ANSI Function: 08
• L: Lever
• Trim : 2227L
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3″ x 6-3/8″ x 15/16″ (76 x 162 x 24 mm)
• Projection: 2-5/8″ (67 mm)
• ANSI Function: 08

Finishes:

• 526 – Powder coated chrome
• 622 – Powder coated matte black
• 689 – Powder coated aluminum
• 695 – Powder coated dark bronze
