KIT – RX Request to Exit Switch – Fire Rated Rim Exit Device

Description

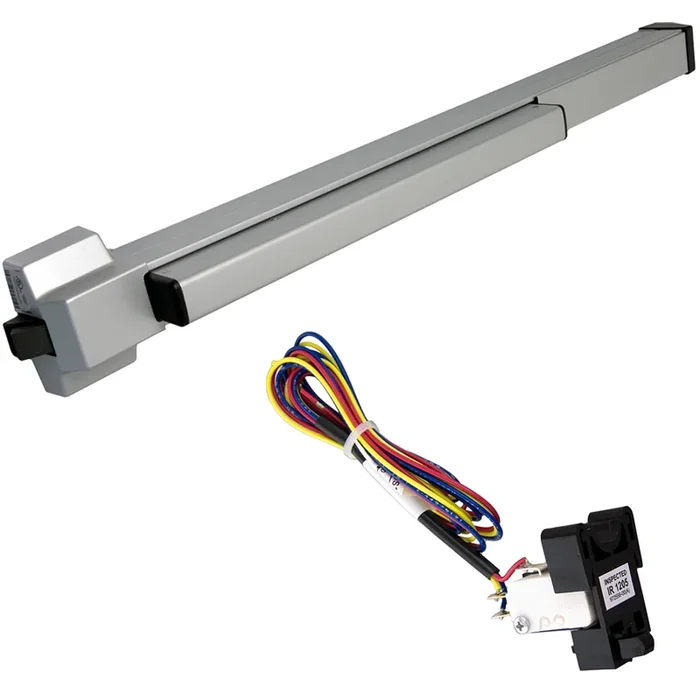

Von Duprin RX-22EO-F-689-48 RX Fire Rated Rim Exit Device, Exit Only No Trim, 48in, Grade 1, Aluminum

Von Duprin RX-22EO-F-689-48 KIT is a robust, fire-rated rim exit device designed for safe and reliable egress in emergency situations. With a generous length of 48 inches, this exit device is tailored for doors up to 8′ x 10′ (2438mm x 3048mm) and is UL listed to meet rigorous fire exit hardware standards. The RX-22EO features a no trim design, making it ideal for exit-only applications, and is constructed from durable, powder-coated aluminum to ensure longevity and resistance to wear. This Grade 1 device is engineered for ease of installation and operation, fitting door stiles as narrow as 3 5⁄8″ (92mm) and offering a non-handed design for versatility. The latch bolt is equipped with a deadlocking anti-friction feature, providing enhanced security with a 5⁄8″ (16mm) throw. Additionally, the device is compatible with a range of electrified options, including request to exit functionality, ensuring seamless integration into modern access control systems. With a fire rating of 180 minutes, the Von Duprin RX-22EO not only meets safety regulations but also enhances the overall security of your building. Whether for commercial or residential use, this exit device is a reliable choice for effective safety solutions.

KIT – RX (Request to Exit Switch), Fire Rated Rim Exit Device, Exit Only No Trim, 48in, No Dogging, Grade 1, 689/SP28 Powder-Coated Aluminum

Notice: The info below is not item specific.

2227-F Surface mounted vertical rod fire exit device for pairs of doors up to 8′ x 10′ (2438mm x 3048mm), UL listed for fire exit hardware. Devices are ANSI A156.3 – 2014 grade 1. Fits door stiles as narrow as 3 5⁄8″ (92mm). The device is non-handed.

Features:

• Available for rim and surface-mounted vertical applications
• Several trim and electronic options
• Non-handed design

Specifications:

• Device Functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device Lengths:
• 3′ (914 mm) see minimum door opening chart in cut sheet
• 4′ (1219 mm) see minimum door opening chart in cut sheet
• Door Height:
• 7′ (2134 mm) standard door height
• 12″ (205 mm), door height
• 36″ (914 mm), door height
• Note: Extension rods available for door heights up to 10′ (3048mm).
• Device Centerline From Finished Floor: 39 13⁄16″ (1011mm)
• Center Case: 4 5⁄32″ (105mm) x 3 3⁄16″ (81mm) x 2 3⁄8″ (60mm)
• Mechanism Case: 2″ (51mm) x 2 3/8″ (60mm)
• Projection: Push bar neutral – 3 11/16″ (94 mm) push bar depressed – 2 7/8″ (73mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8″ (16mm) throw
• Fasteners and Through Bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) wood and metal doors; optional SNB available for device
• Electrified Options:
• ALK: Alarm exit kit
• CON: Allegion Connect
• LX: Latch bolt monitor switch
• LX-LC: Latch bolt monitoring, low current
• LX-RX: Latch bolt monitoring, request to exit
• LX-RX-LC: Latch bolt monitoring, request to exit low current
• QEL: Quiet electric latch retraction
• RX: Request to exit
• RX2: Double request to exit
• WP-RX: Waterproof request to exit
• Mechanical options:
• GBK: Glass bead kit
• HW: Hurricane device — Wind-Only
• PL: Pullman latch
• LBR: Less bottom rod
• AX: Accessible device, LBR only
• Dogging Feature: No mechanical dogging QEL option available
• Strikes:
• Top – 299F –(499F LBR) Dull black
• Bottom – 304L – Unfinished

Minimum Door Opening for 3′ Device:

• 25.875″ (657 mm):
• Stop height: 1⁄2″
• Single door: Yes
• Double door: Vert. x Vert.
• 26.000″ (664 mm):
• Stop height: 5⁄8″
• Single door: Yes
• Double door: Vert. x Vert.

Standard Trim:

• EO: No outside trim
• Exit only
• ANSI: 01
• DT: Dummy Trim
• Trim : 210DT
• Pull when dogged (not recommended for fire device)
• Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
• Projection: 1-31/32″ (42 mm)
• ANSI: 02
• NL: Night latch
• Trim : 210NL
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
• Projection: 1-31/32″ (42 mm)
• ANSI: 03
• NL-OP: Night latch
• Trim : 110NL-MD, 110NL-WD
• Key retracts latchbolt, pull required
• ANSI: 03
• Cylinder Type: Rim
• TP: Thumbpiece
• Trim : 230TP
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Escutcheon Plate Size: 3″ x 12-1/16″ x 3/32″ (76 x 306 x 2 mm)
• Pull Center to Center: 5-1/2″ (140 mm)
• Projection: 2″ (51 mm)
• ANSI: 05
• K: Knob
• Trim : 2227K
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3″ x 4-25/32″ x 3/32″ (76 x 121 x 2 mm)
• Projection: 2-15/16″ (75 mm)
• ANSI Function: 08
• L: Lever
• Trim : 2227L
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3″ x 6-3/8″ x 15/16″ (76 x 162 x 24 mm)
• Projection: 2-5/8″ (67 mm)
• ANSI Function: 08

Finishes:

• 526 – Powder coated chrome
• 622 – Powder coated matte black
• 689 – Powder coated aluminum
• 695 – Powder coated dark bronze

Attributes

Access Type: Request to Exit

Alternate Codes: RX-22EO-F-689-48, RX22EOF68948

Category: Electrified Panic Devices, Panic Devices & Exit Alarms

Certifications: A156.3, ANSI, ANSI/UL 10C, ANSI/UL 305, BHMA, CAN/ULC-S104

Device Width: 36″

Dogging: HD – Hex Dogging

Door And Lock Sensor: Pushbar Monitor

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Rim Exit

Finish Code: 689

Finish Color: Aluminum Powder Coated, EN, Sprayed Aluminum

Fire Rated: Yes

Fire Rating: 180 min

Function: Exit Only

Grade: Grade 1

Manufacturer: Von Duprin

Series: 22

Strike Type: Fire Rated, Standard
