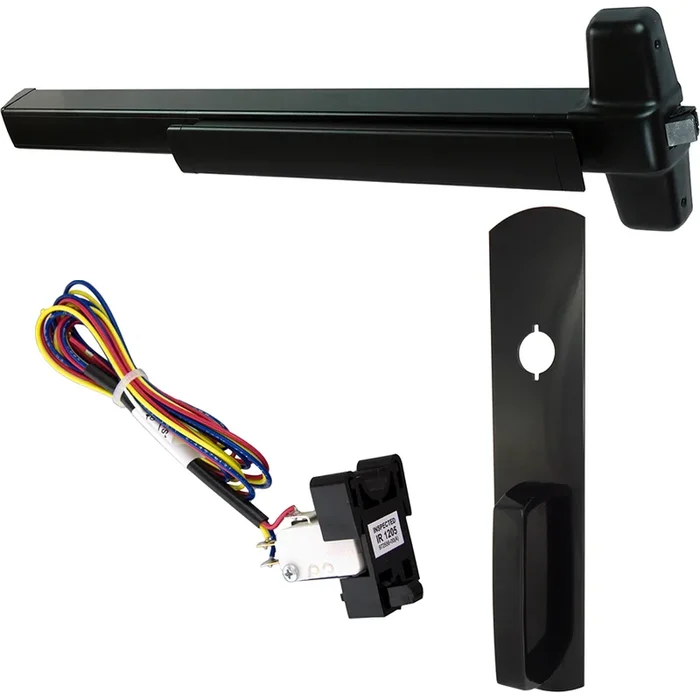

KIT – RX Request to Exit Switch by Von Duprin – Rim Exit Device with Nightlatch Trim

Description

Von Duprin RX-98NL-711-48 KIT – RX Rim Exit Device 990NL Nightlatch Trim, 48in, Hex Dogging, Grade 1

Von Duprin RX-98NL-711-48 KIT combines high-security features with versatile design, making it an ideal choice for high-traffic areas requiring reliable panic exit solutions. This kit includes an RX (Request to Exit Switch), a Rim Exit Device, and 990NL Nightlatch Trim, all finished in a sleek Flat Black to enhance any architectural aesthetic. Built to meet rigorous standards, the RX-98NL is certified to ANSI/BHMA A156.3 2014, Grade 1, ensuring top-tier performance and durability. The device is compatible with both single and double doors, featuring a universal center case that allows easy upgrades to keep pace with evolving security technologies.Maintenance is straightforward thanks to its modular design, which includes a variety of field-configurable options and extensive serviceable parts. The deadlocking latch bolt with a 3/4″ throw ensures superior security, while the hex key dogging feature provides added convenience.Designed for institutional applications such as schools, hospitals, and government buildings, this exit device stands up to the demands of high usage and abuse. With a device width of 48″ and a centerline height of 39-13/16″, the RX-98NL-711-48 KIT offers a perfect blend of functionality, security, and style for any facility.

KIT – RX (Request to Exit Switch), Rim Exit Device, 990NL Nightlatch Trim, 48in, Hex Dogging, Grade 1, 711/315 Flat Black

Notice: The info below is not item specific.

98 and 99 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. The 98 device has a smooth mechanism case and the 99 device has a grooved case. The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch). Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs – consult template).

Features:

• Built-in flexibility with a universal center case that provides migration path to new technology
• Highly modular allowing product upgrades to meet customer’s changing needs
• Easy maintenance with extensive serviceable parts options
• Modular design allows ability to upgrade device to keep up with changing technology and meet a facility’s changing needs
• Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
• A variety of field-configurable options and retrofit kits available

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
• Device Lengths:
• 3′ – 2’4″ to 3′ (711mm to 914 mm) Door size
• 4′ – 2’10” to 4′ (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor:
• 39-13/16″ (1011 mm)
• 39-11/16″ (1008 mm) with mullion
• Center case dimensions: 8″ x 2 3⁄4″ x 2 3⁄8″ (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1⁄4″ x 2 1⁄4″ (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16″ (97 mm)
• Push bar depressed – 3-1/16″ (78 mm)
• Latch Bolt: Deadlocking, 3⁄4″ (19mm) throw
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1 3⁄4″ (44mm) and 2 1⁄4″ (57mm) thick metal or wood doors. (optional 425 SNB available)
• Electrical Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• GBK: Glass bead kit
• PN: Pneumatic latch retraction
• QM: Quiet mechanical
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• XP: Extra protection
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• CD-CX: Chexit cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• SD: Special center case dogging
• LD: Less dogging
• DI: Dogging indicator
• CI: Cylinder dogging indicator
• Strikes: 299 – Dull black

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4″ mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4″ mortise cylinder

Finishes:

• 605 – Bright brass
• 606 – Satin brass
• 612 – Satin bronze
• 625 – Bright chrome
• 626/626AM – Satin chrome
• 628 – Aluminum, anodized
• 710 – Duranodic dark bronze
• 711 – Matte black/anodized
• 643e – Aged bronze

Attributes

Access Type: Request to Exit

Category: Electrified Panic Devices, Panic Devices & Exit Alarms

Certifications: A156.3, ANSI, ANSI/UL 305, BHMA

Device Width: 48″

Door And Lock Sensor: Pushbar Monitor

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Rim Exit

Finish Code: 711

Finish Color: Flat Black

Function: Night Latch

Grade: Grade 1

Manufacturer: Von Duprin

Series: 98/99

Strike Type: Standard
