KIT – RX Request to Exit Switch by Von Duprin – Fire Rated Panic Device

Description

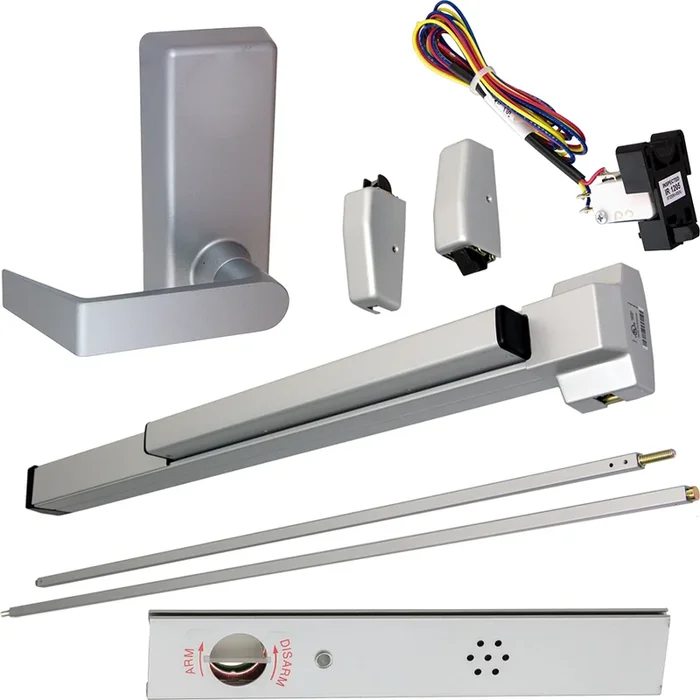

Von Duprin RX-2227L-BE-F-689-36 LHR ALK KIT – RX Fire Rated Alarmed Exit Device, 230L-BE Lever Trim, 36″x84″, Grade 1

Von Duprin RX-2227L-BE-F-689-36 LHR ALK KIT is a robust, fire-rated exit device designed for optimal security and safety in high-traffic environments. This alarmed surface vertical rod exit device is compatible with pairs of doors measuring up to 8′ x 10′, ensuring compliance with UL fire exit hardware standards. Its non-handed design allows for easy installation on door stiles as narrow as 3 5⁄8″, making it versatile for various applications. Constructed from durable powder-coated aluminum, this Grade 1 device features a deadlocking anti-friction latch bolt with a 5⁄8″ throw for enhanced security. The device is ready for multiple functions, including exit only, dummy trim, and night latch, ensuring it meets diverse operational needs. Moreover, the RX option offers a convenient request-to-exit feature, enhancing user accessibility. Designed for ease of use, the RX-2227L comes with a 36″ length configured for left-hand reversible handing. The device’s centerline is set at 39-13⁄16″ from the finished floor, providing an ergonomic solution for daily operations. With no mechanical dogging, the option for quiet electric latch retraction makes it suitable for sensitive environments. Trust the Von Duprin RX-2227L to deliver safety, reliability, and functionality in any setting.

KIT – RX (Request to Exit Switch), Fire Rated, Alarmed SVR Surface Vertical Rod Exit Device, 230L-BE Passage Lever Trim, LHR Left Hand Reverse/Reversible Handing, 36in x 84in, No Dogging, Grade 1, 689/SP28 Powder-Coated Aluminum

Notice: The info below is not item specific.

2227-F Surface mounted vertical rod fire exit device for pairs of doors up to 8′ x 10′ (2438 mm x 3048 mm), UL listed for fire exit hardware. Devices are ANSI A156.3 – 2014 grade 1. Fits door stiles as narrow as 3 5⁄8″ (92 mm). The device is non-handed.

Features:

• Available for rim and surface-mounted vertical applications
• Several trim and electronic options
• Non-handed design

Specifications:

• Device Functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device Lengths:
• 3′ (914 mm)
• 4′ (1219 mm)
• Door Height: 7′ (2134 mm) standard door height, 12″ (205 mm), door height, 36″ (914 mm), door height. Note: Extension rods available for door heights up to 10′ (3048mm).
• Device Centerline From Finished Floor: 39-13⁄16″ (1011 mm)
• Center Case Dimensions: 4-5⁄32″ (105 mm) x 3-3⁄16″ (81 mm) x 2-3⁄8″ (60 mm)
• Mechanism Case Dimensions: 2″ (51 mm) x 2-3/8″ (60 mm)
• Projection: Push bar neutral – 3-11/16″ (94 mm) push bar depressed – 2-7/8″ (73 mm)
• Latch Bolt: Deadlocking anti-friction top and bottom bolt, 5⁄8″ (16 mm) throw
• Fasteners and Through Bolts (SNB): Includes screw pack for 1-3/4″ (44 mm) and 2-1/4″ (57 mm) wood and metal doors; optional SNB available for device
• Electrified Options:
• ALK: Alarm exit kit
• CON: Allegion Connect
• LX: Latch bolt monitor switch
• LX-LC: Latch bolt monitoring, low current
• LX-RX: Latch bolt monitoring, request to exit
• LX-RX-LC: Latch bolt monitoring, request to exit low current
• QEL: Quiet electric latch retraction
• RX: Request to exit
• RX2: Double request to exit
• WP-RX: Waterproof request to exit
• Mechanical options:
• GBK: Glass bead kit
• HW: Hurricane device — Wind-Only
• LBR: Less bottom rod
• AX: Accessible device, LBR only
• Dogging Feature: No mechanical dogging, QEL option available
• Strikes:
• Top: 299F –(499F LBR) Dull black
• Bottom: 304L – Unfinished

Minimum Door Opening for 3′ Device:

• 25.875″ (657 mm):
• Stop height: 1⁄2″
• Single door: Yes
• Double door: Vert. x Vert.
• 26.000″ (664 mm):
• Stop height: 5⁄8″
• Single door: Yes
• Double door: Vert. x Vert.

Standard Trim:

• EO: No outside trim
• Exit only
• ANSI: 01
• DT: Dummy Trim
• Trim : 210DT
• Pull when dogged (not recommended for fire device)
• Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
• Projection: 1-31/32″ (42 mm)
• ANSI: 02
• NL: Night latch
• Trim : 210NL
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• Escutcheon Plate Size: 5-3/8″ x 4-25/32″ x 3/32″ (137 x 121 x 2 mm)
• Projection: 1-31/32″ (42 mm)
• ANSI: 03
• TP: Thumbpiece
• Trim : 230TP
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Escutcheon Plate Size: 3″ x 12-1/16″ x 3/32″ (76 x 306 x 2 mm)
• Pull Center to Center: 5-1/2″ (140 mm)
• Projection: 2″ (51 mm)
• ANSI: 05
• K: Knob
• Trim : 2227K
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3″ x 4-25/32″ x 3/32″ (76 x 121 x 2 mm)
• Projection: 2-15/16″ (75 mm)
• ANSI Function: 08
• L: Lever
• Trim : 2227L
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• Escutcheon Plate Size: 3″ x 6-3/8″ x 15/16″ (76 x 162 x 24 mm)
• Projection: 2-5/8″ (67 mm)
• ANSI Function: 08

Finishes:

• 526 – Powder coated chrome
• 622 – Powder coated matte black
• 689 – Powder coated aluminum
• 695 – Powder coated dark bronze

Attributes

Alternate Codes: RX-2227L-BE-F-689-36 LHR ALK, RX2227LBEF68936LHRALK

Category: Panic Devices, Panic Devices & Exit Alarms, SVR Panic Devices

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
