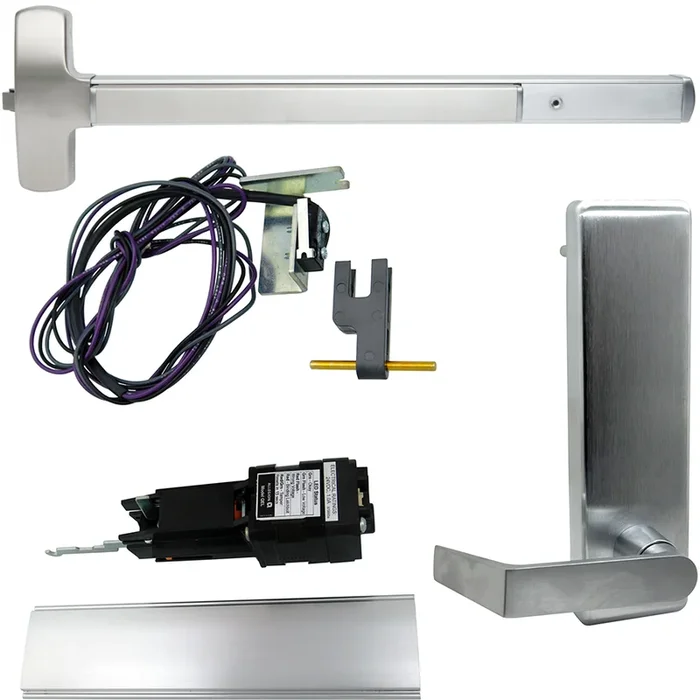

KIT – RX Request to Exit Motorized Electric Latch Retraction Rim Exit Device

Description

Falcon Lock RX-MEL-25R-L-BE-DAN-US26D-48-LHR KIT – RX Motorized Exit Device, Rim Latch, Dane Lever Trim 510L-BE, Satin Chrome

Falcon Lock RX-MEL-25R-L-BE-DAN-US26D-48-LHR KIT is an advanced exit device featuring motorized electric latch retraction (MEL) designed for optimal functionality in multifamily and commercial applications. This rim exit device incorporates a sleek Dane Lever Trim 510L-BE and is suitable for left-hand reverse/reversible installations. With its energy-efficient design, the MEL offers enhanced electronic control of the exit device, facilitating both authorized access and mechanical egress. It is compatible with credential readers, allowing for momentary unlatching for authorized users, or can be set for extended free entry-eliminating the need for mechanical dogging.Constructed with a Grade 1 rating and finished in durable satin chrome (626/US26D), this device not only meets industry standards but also adds an elegant touch to any entryway. The self-calibrating motor assembly and on-board diagnostics simplify installation and troubleshooting, while the vandal-resistant features ensure robustness against tampering. This product requires a power transfer solution and is compatible with a range of power supplies, making it versatile for various setups. The Falcon Lock RX-MEL-25R-L-BE-DAN is the ideal choice for building professionals seeking a reliable and efficient exit device solution.

KIT – RX Request to Exit, Motorized Electric Latch Retraction, Rim Exit Device, Blank Escutcheon x Dane Lever Trim 510L-BE, 48in, LHR Left Hand Reverse/Reversible, 24VDC1 Amp, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

Motorized electric latch retraction (MEL) provides energy efficient electronic control of an exit device for an affordable around the door solution. The MEL option is Falcon’s solution of choice for multifamily and commercial real estate facilities where cost competitive electromechanical latch retraction is desired. It is available on most Falcon 24 and 25 Series exit devices (not available for mortise 25-M or F-25-M). These devices always provide mechanical egress. Motorized electric latch retraction can be used with credential readers to unlatch doors momentarily for authorized users, or it can be incorporated with systems to retract latches for extended periods of time to allow free entry. This is a convenient alternative to mechanical dogging. Doors with automatic operators also may use exit devices with electric latch retraction.

Features:

• MEL option available on 24 and 25 Series exit devices, except 25-M (mortise)
• Energy efficient motorized latch retraction enables longer wire runs and the use of a standard Schlage power supply with option board
• Modular design allows for a simplified installation of the available MEL Conversion kit to existing mechanical Falcon 24 or 25 exit devices
• On-board installation and troubleshooting diagnostics built into the motor assembly
• Self-calibrating motor assembly
• Push bar is pulled in electronically when dogged
• Vandal resistant – detects and responds to events of attack and tampering

Requirements:

• The MEL has a low inrush current = 1.0 amps, so it can be used with standard Schlage power supplies. When powering multiple components, verify that the amperage requirement of all components combined does not exceed the power supply output rating.
• The MEL device is compatible with the following equipment: PS900 Series power supplies – PS902, 904, 906, 914; 900 Series Option Boards – 900-2RS, 900-4R and 900-4RL
• A power transfer (EPT, electrified hinge, or door loop) is required and sold separately
• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

Compatible Options:

• Security monitoring (DM, LM, RX)
• Fail Safe/Fail Secure electric trim (FSA/FSE)

EPT Options:

• EPT-2: Two 18AWG wires with a max rating of 24VDC, 5A or 120 VAC NEC class 3
• EPT-10: Ten 24AWG wires with a max rating of 24VDC, 1A

Stock Sizes:

Device	Door Size	Door Strike	Min Door Opening Width (Add 3.5″ to standard)
MEL-24-R	3′	299	2′ 11″
MEL-24-R	3’	264	2′ 10 7⁄8″
MEL-24-R	3’	1439	2′ 10 1⁄4″
MEL-24-R	3’	1606	2′ 10 5⁄8″
MEL-24-R	4′	299	3′ 5″
MEL-24-R	4′	264	3′ 4 7⁄8″
MEL-24-R	4′	1439	3′ 4 1⁄4″
MEL-24-R	4′	1606	3′ 4 5⁄8″
MEL-24-C	3’	All	2′ 10 5⁄8″
MEL-24-C	4’	All	3′ 4 5⁄8″
MEL-24-V	3’	All	2′ 10 5⁄8″
MEL-24-V	4’	All	3′ 4 5⁄8″
MEL-25-R	3’	299	2′ 11″
MEL-25-R	3’	264	2′ 10 7⁄8″
MEL-25-R	3’	1439	2′ 10 1⁄4″
MEL-25-R	3’	1606	2′ 10 5⁄8″
MEL-25-R	4’	299	3′ 5″
MEL-25-R	4’	264	3′ 4 7⁄8″
MEL-25-R	4’	1439	3′ 4 1⁄4″
MEL-25-R	4’	1606	3′ 4 5⁄8″
MEL-25-C	3′	All	2′ 10 5⁄8″
MEL-25-C	4’	All	3′ 4 5⁄8″
MEL-25-V	3’	All	2′ 10 5⁄8″
MEL-25-V	4’	All	3′ 4 5⁄8″

Finishes:

• 605/US3 – Brass, Bright
• 606/US4 – Brass, Satin
• 613/US10B – Bronze, Oil Rubbed
• 619/US15 – Nickel, Satin
• 622/US19 – Black, Matte
• 625/US26 – Chromium, Bright
• 626/US26D – Chromium, Satin
• 629/US32 – Satinless Steel, Bright
• 630/US32D – Satinless Steel, Satin
• 643e/US11 – Bronze, Aged

Attributes

Alternate Codes: FALRX-MELK-25R-L-BE-DAN-US26D-48-LHR, RX-MEL-25R-L-BE-DAN-US26D-48-LHR, RXMEL25RLBEDANUS26D48LHR, RX-MELK-25R-L-BE-DAN-US26D-48-LHR, RXMELK25RLBEDANUS26D48LHR

Category: Electrified Panic Devices, Panic Devices & Exit Alarms
