Description

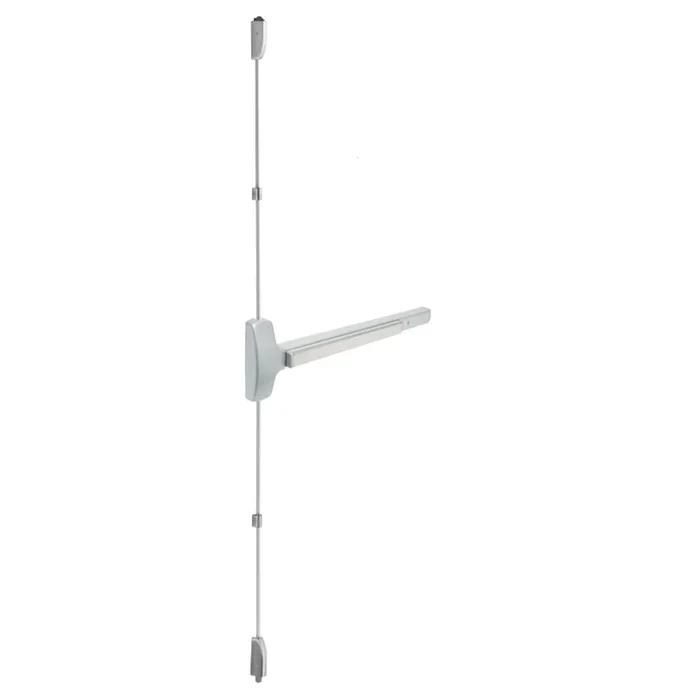

Falcon Lock RX-MEL-25V-EO-US28-3684 RX Request to Exit Motorized Electric Latch, SVR Vertical Rod, Satin Chrome
Falcon Lock RX-MEL-25V-EO-US28-3684 KIT offers cutting-edge motorized electric latch retraction (MEL) technology for enhanced security in multifamily and commercial spaces. Designed for 36-inch by 84-inch doors, this Grade 1 exit device operates on a 24VDC, 1 Amp system, ensuring energy-efficient performance while meeting rigorous security standards. The RX-MEL is engineered for convenience, allowing authorized users to unlatch doors with credential readers, or enabling free entry for extended periods. This capability serves as an excellent alternative to mechanical dogging, making it ideal for high-traffic areas. The self-calibrating motor assembly and built-in diagnostics ensure smooth installation and troubleshooting, while its vandal-resistant features provide peace of mind against tampering. Compatible with standard Schlage power supplies, the MEL system simplifies wiring with longer runs. It requires a power transfer solution, such as an electrified hinge or door loop, sold separately. Additionally, the RX-MEL supports security monitoring options, making it a versatile choice for comprehensive access control. Finished in a sleek satin chrome (626/US26D), the Falcon Lock RX-MEL-25V-EO-US28-3684 KIT not only enhances security but also complements modern architectural aesthetics. Upgrade your exit solutions today with this reliable and efficient locking system.
KIT – RX Request to Exit, Motorized Electric Latch Retraction, SVR Surface Vertical Rod Exit Only, 36in x 84in, 24VDC1 Amp, Grade 1, 626/US26D Satin Chrome
Notice: The info below is not item specific.
Motorized electric latch retraction (MEL) provides energy efficient electronic control of an exit device for an affordable around the door solution. The MEL option is Falcon’s solution of choice for multifamily and commercial real estate facilities where cost competitive electromechanical latch retraction is desired. It is available on most Falcon 24 and 25 Series exit devices (not available for mortise 25-M or F-25-M). These devices always provide mechanical egress. Motorized electric latch retraction can be used with credential readers to unlatch doors momentarily for authorized users, or it can be incorporated with systems to retract latches for extended periods of time to allow free entry. This is a convenient alternative to mechanical dogging. Doors with automatic operators also may use exit devices with electric latch retraction.
Features:
- MEL option available on 24 and 25 Series exit devices, except 25-M (mortise)
- Energy efficient motorized latch retraction enables longer wire runs and the use of a standard Schlage power supply with option board
- Modular design allows for a simplified installation of the available MEL Conversion kit to existing mechanical Falcon 24 or 25 exit devices
- On-board installation and troubleshooting diagnostics built into the motor assembly
- Self-calibrating motor assembly
- Push bar is pulled in electronically when dogged
- Vandal resistant – detects and responds to events of attack and tampering
Requirements:
- The MEL has a low inrush current = 1.0 amps, so it can be used with standard Schlage power supplies. When powering multiple components, verify that the amperage requirement of all components combined does not exceed the power supply output rating.
- The MEL device is compatible with the following equipment: PS900 Series power supplies – PS902, 904, 906, 914; 900 Series Option Boards – 900-2RS, 900-4R and 900-4RL
- A power transfer (EPT, electrified hinge, or door loop) is required and sold separately
- Security monitoring (DM, LM, RX)
- Fail Safe/Fail Secure electric trim (FSA/FSE)
Compatible Options:
- Security monitoring (DM, LM, RX)
- Fail Safe/Fail Secure electric trim (FSA/FSE)
EPT Options:
- EPT-2: Two 18AWG wires with a max rating of 24VDC, 5A or 120 VAC NEC class 3
- EPT-10: Ten 24AWG wires with a max rating of 24VDC, 1A
Stock Sizes:
| Device | Door Size | Door Strike | Min Door Opening Width (Add 3.5″ to standard) |
|---|---|---|---|
| MEL-24-R | 3′ | 299 | 2′ 11″ |
| MEL-24-R | 3’ | 264 | 2′ 10 7⁄8″ |
| MEL-24-R | 3’ | 1439 | 2′ 10 1⁄4″ |
| MEL-24-R | 3’ | 1606 | 2′ 10 5⁄8″ |
| MEL-24-R | 4′ | 299 | 3′ 5″ |
| MEL-24-R | 4′ | 264 | 3′ 4 7⁄8″ |
| MEL-24-R | 4′ | 1439 | 3′ 4 1⁄4″ |
| MEL-24-R | 4′ | 1606 | 3′ 4 5⁄8″ |
| MEL-24-C | 3’ | All | 2′ 10 5⁄8″ |
| MEL-24-C | 4’ | All | 3′ 4 5⁄8″ |
| MEL-24-V | 3’ | All | 2′ 10 5⁄8″ |
| MEL-24-V | 4’ | All | 3′ 4 5⁄8″ |
| MEL-25-R | 3’ | 299 | 2′ 11″ |
| MEL-25-R | 3’ | 264 | 2′ 10 7⁄8″ |
| MEL-25-R | 3’ | 1439 | 2′ 10 1⁄4″ |
| MEL-25-R | 3’ | 1606 | 2′ 10 5⁄8″ |
| MEL-25-R | 4’ | 299 | 3′ 5″ |
| MEL-25-R | 4’ | 264 | 3′ 4 7⁄8″ |
| MEL-25-R | 4’ | 1439 | 3′ 4 1⁄4″ |
| MEL-25-R | 4’ | 1606 | 3′ 4 5⁄8″ |
| MEL-25-C | 3′ | All | 2′ 10 5⁄8″ |
| MEL-25-C | 4’ | All | 3′ 4 5⁄8″ |
| MEL-25-V | 3’ | All | 2′ 10 5⁄8″ |
| MEL-25-V | 4’ | All | 3′ 4 5⁄8″ |
Finishes:
- 605/US3 – Brass, Bright
- 606/US4 – Brass, Satin
- 613/US10B – Bronze, Oil Rubbed
- 619/US15 – Nickel, Satin
- 622/US19 – Black, Matte
- 625/US26 – Chromium, Bright
- 626/US26D – Chromium, Satin
- 629/US32 – Satinless Steel, Bright
- 630/US32D – Satinless Steel, Satin
- 643e/US11 – Bronze, Aged
Attributes
Alternate Codes: FALRX-MEL-25V-EO-US28-36, RX-MEL-25V-EO-US28-36, RXMEL25VEOUS2836, RX-MEL-25V-EO-US28-3684, RXMEL25VEOUS283684
Category: Electrified Panic Devices, Panic Devices & Exit Alarms
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
