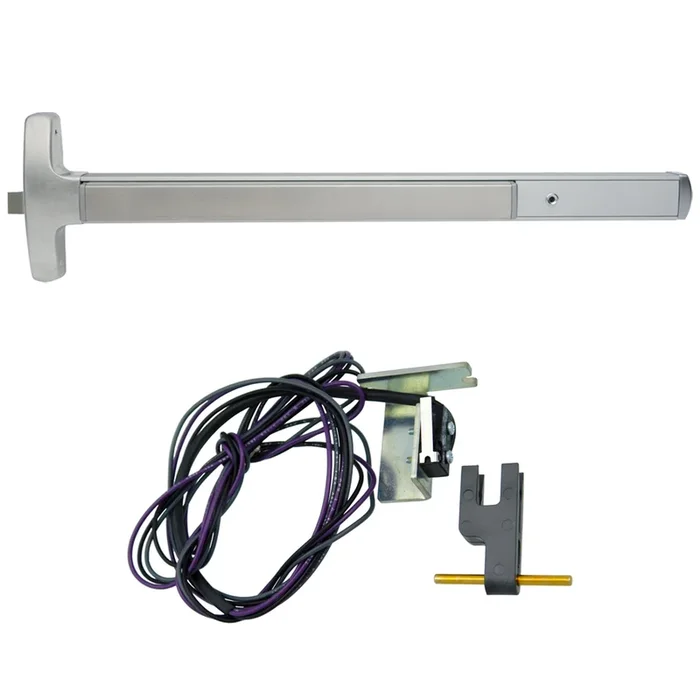

KIT – RX Request to Exit, Fire Rated Rim Exit Device, 36in Satin Chrome

Description

Falcon Lock RX-F25R-EO-US26D-36 RX Fire Rated Rim Exit Device, 36in, Less Dogging, UL, Grade 1, Satin Chrome

Falcon Lock RX-F25R-EO-US26D-36 KIT is a fire-rated rim exit device designed for optimal security and ease of access. This exit-only device measures 36 inches and features a durable extruded aluminum construction that provides enhanced strength and impact resistance, making it ideal for high-traffic areas. The sleek design ensures no exposed screws or rivets, allowing for a streamlined and attractive installation. The RX-F25R is non-handed and offers maximum versatility with a single trim input design, accommodating various trims. Its stainless steel push pad cover is scratch-resistant, ensuring a long-lasting and professional appearance. The device is designed for 1-3/4″ thick wood or metal doors and includes a 3/4″ stainless steel latchbolt with a standard deadlocking feature, meeting ANSI A156.3 grade 1 standards. With a 90-minute fire rating and UL certification, this device is perfect for situations requiring both safety and compliance. Additionally, it can interface with building security systems for added functionality, including motorized latch retraction and exit alarms. The RX-F25R is a reliable choice for those seeking a robust exit solution in commercial and residential settings.

KIT – RX Request to Exit, Fire Rated Rim Exit Device, Exit Only, 36in, Less Dogging, UL, 299F Strike, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

The F-25-R Series rim device combines sleek styling and durability with the protection of a fire-rated device. The F-25-R also Features a single-point, rim type latch and can be electrified.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Non-handed.
• UL:
• “A” label (3 hr.); 4’ 0″ x 8’ 0″ 8’ 0″ x 8’ 0″ with F-4023 mullion.
• “B” label (1-1⁄2 hr.); 8’ 0″ x 8’ 0″ with KRF4023.
• Strikes: 299F strike standard. 499F standard for pairs with mullion.
• Latchbolt: Stainless steel, 3⁄4″ throw.
• Deadlocking Latchbolt: Standard.
• Doors: 1-3⁄4″ thick, wood or metal. Specify thickness if other than 1-3⁄4″.
• Projections: 2-3⁄4″ maximum.
• Mounting Height: 40-1⁄4″ from CL to finished floor.
• Electric Functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• Sex Bolts: Required for use in EO applications when used with wood, composite or non-reinforced hollow metal doors. For EO device, specify 8 – 425 (#10-24) SNB. For devices with trim, specify 2 – 425 (#10-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center Case and Working Parts: Center case is heavy wrought and sintered metal parts.
• Shim Kits: For glass lite applications; 1⁄4″ thick, specify SK25-RM.

Stock Sizes:

• Single Door Application:

Device	Door Size	Door Strike	Min Stile (in)	Min Door Opening Width
F-25-R	3’	299-F	4″	2’ 7-1/2″
F-25-R	4’	299-F	4″	3’ 1-1/2″

• Double Door Application:

Device	Door Size	Door Strike	Min Stile (in)	Min Door Opening Width
F-25-R	3’	499-F x F-4023	4-1/2″	2’ 7-5/8″
F-25-R	4’	499-F x F-4023	4-1/2″	3’ 1-5/8″

Finishes:

• US3/605 – Brass, Bright
• US4/606 – Brass, Satin
• US10/612 – Bronze, Satin
• US11/643e – Bronze, Aged
• US15/619 – Nickel, Satin
• US19/622 – Black, Matte
• US26/625- Chromium, Bright
• US26D/626 – Chromium, Satin
• US28/628 – Anodized, Aluminum
• US32/629 – Stainless Steel, Bright
• US32D/630 – Stainless Steel, Satin
• 313AN/710 – Anodized Duranodic

Attributes

Access Type: Request to Exit

Alternate Codes: RX-F25R-EO-US26D-36, RXF25REOUS26D36

Category: Electrified Panic Devices, Panic Devices & Exit Alarms

Certifications: A156.3, ANSI, “B” Label (90min.), UL 10C, UL 305

Device Width: 36″

Dogging: HD – Hex Dogging

Door And Lock Sensor: Pushbar Monitor

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Rim device

Finish Code: US26D

Finish Color: Brushed Chrome

Fire Rated: Yes

Fire Rating: 90 min

Function: Exit Only

Grade: Grade 1

Manufacturer: Falcon Lock

Series: 25

Strike Type: Fire Rated Rim Strike, Standard
