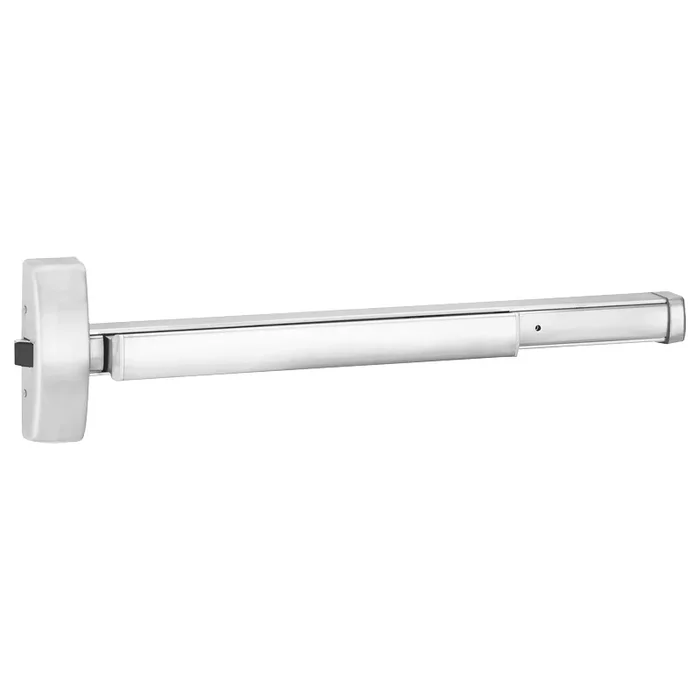

KIT – Rim Exit Device, Hex Dogging, 36in, Stainless Steel – Grade 1 by Precision Hardware

Description

PHI 2101-630-36 Precision Hardware Inc Exit Device

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nationÍs largest healthcare and educational facilities prefer the Apex for itÍs aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

• RETROFIT APPLICATIONS – The 2100 and FL2100 Series Devices are designed to retrofit into other manufacturers’ mounting hole locations.
• 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix “R”
• DOORS – For all types of single and double doors with a mullion.
• Available for 1-3/4″ to 2-1/4″ thick, up to 4′-0″ wide opening.
• For thicker doors, consult factory.
• Furnished standard for 1-3/4″ thick, 3′-0″ wide opening.
• DEVICE – Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
• FUNCTIONS – Functions are field selectable except for the Double Cylinder option.
• The device is furnished for a desired function if specified.
• If not specified the “03” function is furnished standard.
• CYLINDERS – Rim Type, not furnished standard. Specify when required.
• DOUBLE CYLINDER – Handed, “10” Function available.
• Requires two rim type cylinders
• not furnished standard.
• BASE MATERIAL – The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
• 628 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
• CHASSIS – Investment Cast Steel, Zinc Dichromated.
• LATCHBOLT – Stainless Steel, Deadlocking, 3/4″ throw.
• STRIKES – No. S300, Investment Cast Stainless Steel, Black Powder Coated furnished standard.
• No. S988, optional strike for use on Aluminum Door applications, please specify when ordering.
• No. S458, optional strike for use on Mullion applications, please specify when ordering.
• DOGGING – 1/4″ turn hex key dogging standard.
• NOT available on Fire Exit Hardware.
• TOUCHBAR HEIGHT – 39-15/16″ from floor standard.
• May be varied as situation dictates.
• REVERSIBLE – Reversible for all functions and Trims.
• Standard packaging RHRB.

Attributes

Alternate Codes: 2101-630, 2101-630-36, 2101630, 210163036, PHG2101-630

Ansi: BHMA A156.3 Grade 1 Listed

Baa Qualified: Yes

Bar Style: Push Bar

Base Material: Stainless Steel

Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices

Commercial Residential: Commercial

Country of Origin: Usa

Country of origin: USA

Device Length: 36 In.

Device Type: Rim

Device Width: 36″

Dogging Options: Hex Key Dogging

Door Application: Panic Devices & Exit Alarms

Door Material: All Types

Door Thickness: 1-3/4″ to 2-1/4″

Door Type: Aluminum, Metal, Wood

Door Width: 36″

Exit Device Category: Rim device

Exit Device Type: Rim Exit

Finish: 630

Finish Code: 630

Finish Color: Satin Stainless Steel

Finish : Satin Stainless Steel

Finish Family: Matte Silver

Fire Rated: No

Function: Exit Only

Grade: Grade 1

Hand: Field Reversible

Handing: Field Reversible

Includes Trim: No

Installation: Commercial

Limited Warranty: 5 Years

Mechanical Function: Exit Only

Minimum Stile Size: 4-1/4″

Minimum Style Size: 4-1/4″

Origin: USA

Pack Qty: 1

Physical Appearance: Wide Stile Pushpad

Reversible: Yes

Series: 3R0

Strike Standard: S300

Subtype: Exit Device

Supplier: Stanley

Type: PANIC DEVICES & EXIT ALARMS

Ul Listing: UL 10C

Unit of Measure: Each
