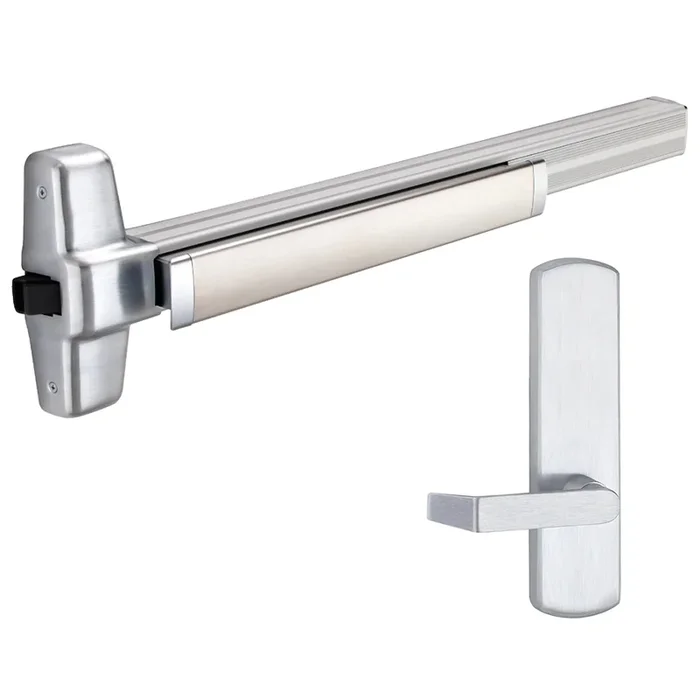

KIT – Rim Exit Device 996L-BE-06 Passage Lever Trim – Satin Chrome

Description

Von Duprin 99L-BE-626-48-LHR 06 KIT – Rim Exit Device 996L-BE-06, LHR Passage Lever Trim, Satin Chrome

Von Duprin 99L-BE-626-48-LHR 06 KIT is a premium rim exit device designed for both single and double doors, ensuring reliable panic exit functionality. This model features a 48-inch length and is built to meet the rigorous standards of ANSI/BHMA A156.3, grade 1 certification, making it suitable for high-traffic environments such as schools, hospitals, and government facilities. The satin chrome finish adds a touch of elegance while maintaining durability. With its non-handed design and field-selectable options, the 99L-BE is incredibly versatile, adapting to various installation requirements. The hex key dogging feature provides secure, easy access when needed. Additionally, extensive serviceable parts options ensure straightforward maintenance, prolonging the life of the device. The device’s modular design allows for future upgrades, accommodating evolving security technologies. The deadlocking latch bolt features a ¾-inch throw for added security, while the standard trim includes lever functionality for ease of use. With a centerline height from the finished floor set at 39-13/16 inches, it fits well within standard door specifications. Investing in the Von Duprin 99L-BE-626-48-LHR 06 KIT means choosing a reliable, efficient solution for your emergency exit needs, combining safety, functionality, and style in one comprehensive package.

KIT – Rim Exit Device, 996L-BE-06 Passage Lever Trim, LHR Left Hand Reverse/Reversible Handing, 48in, Hex Dogging, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

98 and 99 rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are certified to ANSI/BHMA A156.3 2014, grade 1. The 98 device has a smooth mechanism case and the 99 device has a grooved case. The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch). Covers stock hollow metal doors with 86 or 161 cutouts on single doors (may cover cutouts on pairs – consult template).

Features:

• Built-in flexibility with a universal center case that provides migration path to new technology
• Highly modular allowing product upgrades to meet customer’s changing needs
• Easy maintenance with extensive serviceable parts options
• Modular design allows ability to upgrade device to keep up with changing technology and meet a facility’s changing needs
• Designed for high use and abuse in institutional applications like schools, hospitals and government facilities
• A variety of field-configurable options and retrofit kits available

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
• Device Lengths:
• 3′ – 2’4″ to 3′ (711mm to 914 mm) Door size
• 4′ – 2’10” to 4′ (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor:
• 39-13/16″ (1011 mm)
• 39-11/16″ (1008 mm) with mullion
• Center case dimensions: 8″ x 2 3⁄4″ x 2 3⁄8″ (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1⁄4″ x 2 1⁄4″ (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16″ (97 mm)
• Push bar depressed – 3-1/16″ (78 mm)
• Latch Bolt: Deadlocking, 3⁄4″ (19mm) throw
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1 3⁄4″ (44mm) and 2 1⁄4″ (57mm) thick metal or wood doors. (optional 425 SNB available)
• Electrical Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• GBK: Glass bead kit
• PN: Pneumatic latch retraction
• QM: Quiet mechanical
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• XP: Extra protection
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• CD-CX: Chexit cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• SD: Special center case dogging
• LD: Less dogging
• DI: Dogging indicator
• CI: Cylinder dogging indicator
• Strikes: 299 – Dull black

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4″ mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4″ mortise cylinder

Finishes:

• 605 – Bright brass
• 606 – Satin brass
• 612 – Satin bronze
• 625 – Bright chrome
• 626/626AM – Satin chrome
• 628 – Aluminum, anodized
• 710 – Duranodic dark bronze
• 711 – Matte black/anodized
• 643e – Aged bronze

Attributes

Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices

Certifications: A156.3, ANSI, ANSI/UL 305, BHMA

Device Width: 48″

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Rim Exit

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Function: Blank Escutcheon, Lever

Grade: Grade 1

Handing: Left Handed Reverse

Lever Design: 6

Manufacturer: Von Duprin

Series: 98/99

Strike Type: Standard
