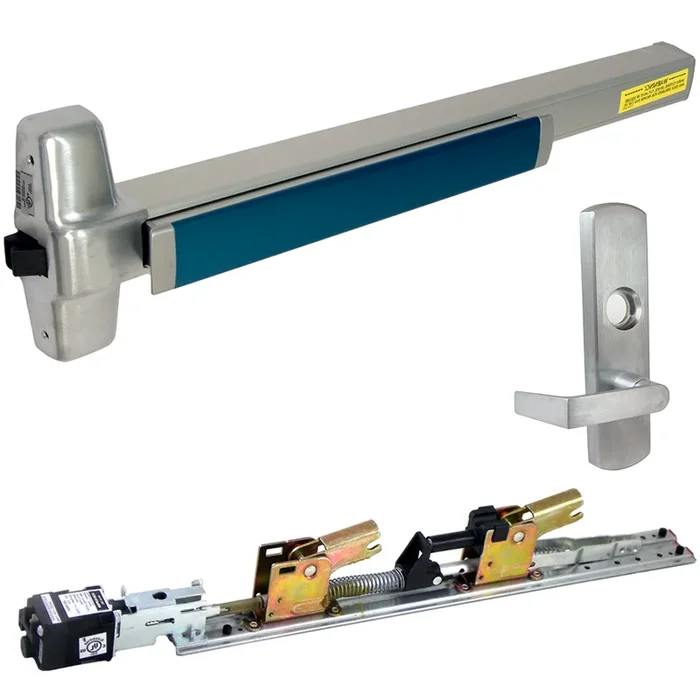

KIT – QEL Quiet Electric Latch Retraction Fire Rated Rim Exit Device by Von Duprin

Description

Von Duprin QELA-98L-NL-F-626-36-LHR 06 QEL Fire Rated Rim Exit Device, 996L-NL-06 Nightlatch, 36in, Satin Chrome

Von Duprin QELA-98L-NL-F-626-36-LHR 06 KIT is a premium Quiet Electric Latch Retraction exit device that combines safety with innovative design. This fire-rated rim exit device is certified to ANSI/BHMA A156.3 2014, Grade 1, and is UL listed for fire exit hardware, ensuring reliable performance in critical situations. Designed for left-handed reverse installation, the QELA-98L features a 36-inch length and a deadlocking latch bolt with a ¾-inch throw, providing robust security. The device’s satin chrome finish (626/US26D) not only enhances its aesthetic appeal but also contributes to its durability. With a mechanism case measuring 2 ¼” x 2 ¼” and a center case of 8″ x 2 ¾” x 2 ⅜”, this exit device fits seamlessly into various door applications. The QEL option allows for quiet electric latch retraction, making it ideal for environments where noise reduction is crucial. Additionally, it offers multiple electrical options such as request-to-exit switches and latch bolt monitor switches, enhancing functionality and user convenience. This exit device is an excellent choice for building professionals and knowledgeable homeowners seeking a reliable, high-quality exit solution that meets stringent safety standards while providing ease of use.

KIT – QEL (Quiet Electric Latch Retraction), Fire Rated Rim Exit Device, 996L-NL-06 Nightlatch Lever Trim, LHR Left Hand Reverse/Reversible Handing, 36in, No Dogging, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

98-F and 99-F Rim fire exit devices are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. The 98-F device has a smooth mechanism case and the 99-F device has a grooved case. The rim device is non-handed except when the following device options are used: -2 (double cylinder) or SS (signal switch).

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
• Device Lengths:
• 3′ – 2’4″ to 3′ (711mm to 914 mm) Door size
• 4′ – 2’10” to 4′ (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor:
• 39-13/16″ (1011 mm)
• 39-11/16″ (1008 mm) with mullion
• Center case dimensions: 8″ x 2 3⁄4″ x 2 3⁄8″ (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1⁄4″ x 2 1⁄4″ (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16″ (97 mm)
• Push bar depressed – 3-1/16″ (78 mm)
• Latch Bolt: Deadlocking, 3⁄4″ (19mm) throw
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1 3⁄4″ (44mm) and 2 1⁄4″ (57mm) thick metal or wood doors; Optional 425 SNB available for metal doors; 425 and 825 SNB required on wood doors without SLM blocking
• Electrical Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• GBK: Glass bead kit
• PN: Pneumatic latch retraction
• QM: Quiet mechanical
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• XP: Extra protection
• Dogging Options: No mechanical dogging; QEL options available
• Strikes: 299F – Dull black, 499F with mullions

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4″ mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4″ mortise cylinder

Finishes:

• 605 – Bright brass
• 606 – Satin brass
• 612 – Satin bronze
• 625 – Bright chrome
• 626/626AM – Satin chrome
• 628 – Aluminum, anodized
• 710 – Duranodic dark bronze
• 711 – Matte black/anodized
• 643e – Aged bronze

Features

• XP: Extra protection
• Center case dimensions: 8″ x 2 3⁄4″ x 2 3⁄8″ (203mm x 70mm x 60mm)
• Projection:
• Strikes: 299F – Dull black, 499F with mullions
• RX: Request to exit
• GBK: Glass bead kit
• ALK: Alarm exit kit
• -2SI: Double cylinder with security indicator
• AX: Accessible device
• 3′ – 2’4″ to 3′ (711mm to 914 mm) Door size
• Push bar neutral – 3-13/16″ (97 mm)
• Fasteners and Sex Bolts (SNB): Includes screw pack for 1 3⁄4″ (44mm) and 2 1⁄4″ (57mm) thick metal or wood doors; Optional 425 SNB available for metal doors; 425 and 825 SNB required on wood doors without SLM blocking
• EL: Electric latch retraction
• SNB: Sex bolts
• Dogging Options: No mechanical dogging; QEL options available
• CON: Allegion Connect
• -2: Double cylinder
• PN: Pneumatic latch retraction
• Latch Bolt: Deadlocking, 3⁄4″ (19mm) throw
• QEL: Quiet electric latch retraction
• 4′ – 2’10” to 4′ (864 mm to 1219 mm) Door size
• 39-11/16″ (1008 mm) with mullion
• Mechanical Options:
• WP-RX: Waterproof request to exit
• Device Lengths:
• E: Electric locking and unlocking trim
• SS: Signal switch
• ESL: Emergency secure lockdown
• CX: Chexit delayed exit
• Push bar depressed – 3-1/16″ (78 mm)
• LX: Latch bolt monitor switch
• Mechanism case dimensions: 2 1⁄4″ x 2 1⁄4″ (57mm x 57mm)
• QM: Quiet mechanical
• Electrical Options:
• 39-13/16″ (1011 mm)
• Device Centerline from Finished Floor:
• SEC: Security screws
• Device Functions: Device ships EO/DT/NL; field selectable; for TP, K or L remove NL drive screw from device
• RX2: Double request to exit
• WH: Weep holes

Attributes

Alternate Codes: VONQELA-98L-NL-F-626-36-LHR 06

Category: Electrified Panic Devices, Panic Devices & Exit Alarms

Certifications: A156.3, ANSI, ANSI/UL 10C, ANSI/UL 305, BHMA, CAN/ULC-S104

Device Width: 36″

Door Application: Panic Devices & Exit Alarms

Electrical Option: Electric Latch Retraction, Quiet

Exit Device Category: Rim Exit

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Fire Rated: Yes

Fire Rating: 180 min

Function: Lever, Night Latch

Grade: Grade 1

Handing: Left Handed Reverse

Lever Design: 6

Manufacturer: Von Duprin

Series: 98/99

Strike Type: Standard Rim Fire
