Description

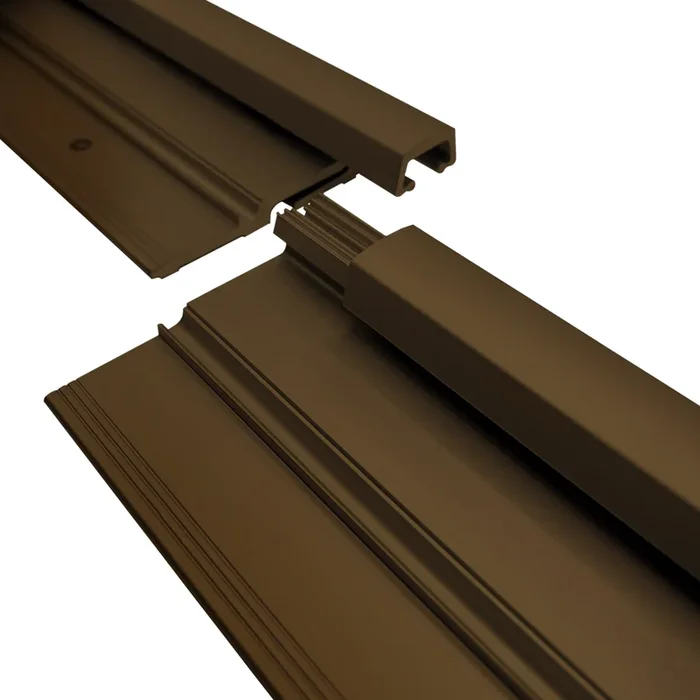

Pemko DFS95HD1-M PemKonnect Heavy Duty Geared Continuous Hinge Kit, 95in, Dark Bronze Aluminum
Pemko Manufacturing Co DFS95HD1-M KIT offers a robust solution with its PemKonnect Modular Full Surface Heavy Duty Geared Continuous Hinge. This 95-inch hinge is crafted from dark bronze aluminum, designed specifically for retrofit applications where durability and strength are paramount. Ideal for swinging fire doors made from hollow metal, tin-clad, sheet metal, or steel-covered composite rated up to three hours, it ensures reliable performance in demanding environments. The heavy-duty model features a non-handed design, accommodating doors with a thickness of 1 3/4 inches and a maximum width of 4 feet. With a maximum swing of 180 degrees, it provides ample clearance while maintaining a minimum hinge clearance of 1/16 inch, ensuring smooth operation. This hinge is guaranteed for the life of the opening against defects in material or workmanship, offering peace of mind to building professionals and homeowners alike. It requires no special hinge reinforcements, making installation straightforward. Additionally, various finishes are available, including clear anodized, gold powder coat, and dark bronze anodized, allowing for customization to fit aesthetic preferences. For those seeking a high-performance hinge that merges functionality with durability, the Pemko DFS95HD1-M is an excellent choice, backed by certifications from ANSI, BHMA, and UL 10C.
KIT – PemKonnect Modular Full Surface Heavy Duty Geared Continuous Hinge, 3 Pieces – 95in, Dark Bronze Aluminum
Notice: The info below is not item specific.
The FS series full surface continuous geared hinge is designed mainly for retrofit work and is applied to the exposed surfaces of the door and frame. This hinge is available in standard and heavy duty models, as well as our PemKonnect modular version (FS_HD1-M) that is primarily designed for freight savings and ease of transportation.
Features:
- Standard and heavy duty versions available
- For swinging fire doors of hollow metal, tin-clad, sheet metal or steel covered composite type rated up to 3 hours
- Hollow metal door and frame manufacturers’ standard reinforcement is acceptable
- For wood covered composite type rated up to and including 1-1/2 hours
- Applied to the exposed surfaces of the door and frame
- Guaranteed for the life of the opening against defects in material or workmanship (HD only)
- Removal of hinge reinforcements in the door and frame is not advised
- Custom lengths available
- Special hinge reinforcements are not required
- Fire pins are required on 3-Hour (A-Label) assemblies
- Excessive clearance on fire rated assemblies may violate NFPA 80
Specifications:
- Grade: Grade 1
- Hinge Material: Aluminum
- Hinge Mounting Type: Full surface
- Hinge Strength: Heavy weight
- Handing: Non-handed
- Fastener: Teks
- Fastener Type: Self drilling
- Maximum Door Thickness: 1 3/4″
- Minimum Door Thickness: 1 3/4″
- Maximum Door Width: 4′
- Maximum Hinge Length: 10′
- Minimum Length: 79″
- Maximum Swing: 180°
- Minimum Hinge Clearance: 1/16″
- Weight: 1.29lbs. per foot
Models:
- FS:
- Hinge Strength: Standard
- Bearing Spacing: 3″
- FS_HD1:
- Hinge Strength: Heavy Weight
- Bearing Spacing: 3″
Options:
- SER: Serviceable section prep with wires – 4, 8, or 12 wire options available
- QC: ElectroLynx wires with Molex connectors – 4, 8, or 12 wire options available
- CUT: Cut charge
- HT: Hospital tip
- ALP: Anti ligature package for continuous geared hinges
- SSHT_ALP: Stainless steel anti ligature package for continuous geared hinges
- TORX: TORX Security screws
- WS: Wood screws
- M: PemKonnect modular hinge
Finishes:
- C – Clear anodized
- D – Dark bronze anodized
- G – Gold powder coat
- BSP – Black suede powder coat
- WSP – White suede powder coat
- SN – Satin nickel powder coat
Attributes
Ship via: No UPS – Common Carrier Only
Alternate Codes: DFS95HD1-M, DFS95HD1M
Category: Continuous Hinges, Hinges
Certifications: A156.26, ANSI, BHMA, Health Product Declaration (HPD), UL 10C
Door Application: Continuous Hinges
Fasteners: Teks Self Drilling
Finish Color: Dark Bronze Anodized
Grade: Grade 1
Hinge Features: Modular Hinge
Hinge Height: 7′ 11″
Hinge Rating: Heavy Weight
Manufacturer: Pemko Manufacturing Co
Material: Aluminum
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Weight: 10.21lbs
