KIT – Networx Prox Reader Keypad Mortise Lock RH – Alarm Lock Systems Inc

Description

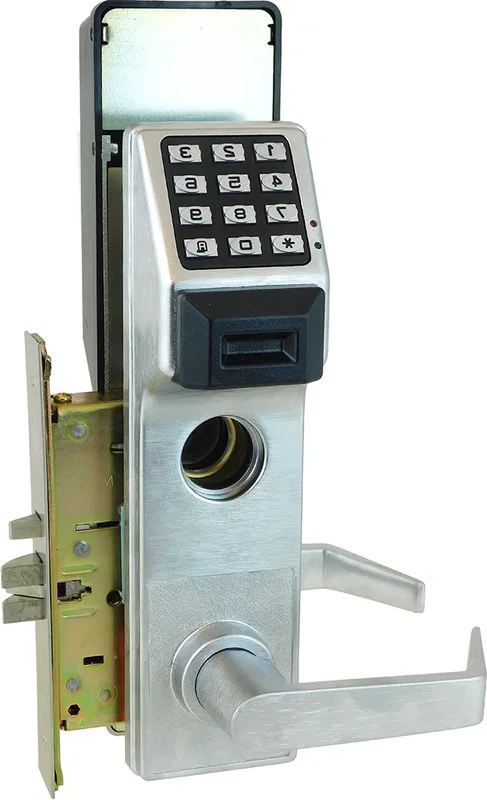

Alarm Lock PDL6600CRR/26D Networx Prox Reader Keypad Mortise Lock RH, Schlage C, 5000 Users, Satin Chrome

Alarm Lock Systems Inc PDL6600CRR/26D KIT is a cutting-edge Networx Prox Reader Keypad Mortise Lock designed for seamless access control. This right-hand, field-reversible lock boasts a Schlage C keyway and can accommodate up to 5,000 users, ensuring robust security for any environment. With a remarkable 35,000 event audit trail, detailed tracking of access is effortless. The PDL6600CRR series eliminates the hassle of door-to-door programming and audit trail retrieval by utilizing wireless communication via Ethernet or 802.11B/G. This innovative lock requires no hardwiring, making installation straightforward and economical. Users can easily enter access codes ranging from 3 to 6 digits or utilize HID proximity cards for convenience. Built with Grade 1 durability, this lock features a stainless steel latchbolt and deadlocking latch for added security. It includes a weatherproof construction that endures temperatures from -31°F to +151°F, ensuring reliable performance in various conditions. The visual and audible indicators provide immediate feedback on entry status, while the ADA-compliant levers enhance accessibility. With up to 500 scheduled automatic lock/unlock events, the PDL6600CRR/26D is perfect for both residential and commercial applications, combining advanced technology with a sleek satin chrome finish for a professional look.

KIT – Networx Prox ReaderKeypad Mortise Lock RH (Right Hand, Field Reversible), Schlage C Keyway, 5000 Users, 35,000 Audit Trail, Supports 802.11 or Ethernet, No Hardwiring, 626/US26D Satin Chrome

Notice: The info below is not item specific.

The Trilogy PDL6600CRR Series Networx Locks eliminate door-to-door programming and audit trail retrieval by communicating wirelessly via Ethernet or 802.11B/G, while providing all original Trilogy standalone lock’s functionality. It provide a quick, easy and economical access system with advanced features and functions like various automatic schedules, event logs and support for up to 5000 users with 3-6 digit numeric PIN codes and Prox ID card users. However, this lock has no wires to run and no access panels or power supplies to buy or install.

Features:

• PDL6600- Request to exit (REX); When used on Networx; sound at door, will record on audit trail. Must pull audit log to view
• Right hand straight lever classroom function Mortise Prox/Pin Lock
• 1-1/4″ x 4-7/8″ strike included as always
• 1-3/8″ (3.5cm) mortise cylinder supplied
• Classroom function feature stainless steel latchbolt with 3/4″ (1.91cm) projection and deadlocking latch
• Product comes with 2-3/4″ backset as standard
• Rugged clutch mechanism and Grade 1 durability ensure long life
• 4 C-cell batteries included as always
• Alarm Lock can have up to 5000 different user codes (3-6 digits) and HID Proximity cards
• Standard ANSI A115 Mortise prep that is modified by adding additional through-bolt holes
• 35,000 event audit log
• Weatherproof -31 degree to +151 degree F (-35 degree to +66 degree C)
• Visual and audible entry indicators on front of lock
• UL listed hardware
• Cylinder: Classroom function supplied with straight cam
• ADA compliant levers
• 500 scheduled automatic lock/unlock events
• It easily fits into the door with thickness from 1-3/8″ to 1-7/8″ (4.46cm) wide dimensions

Attributes

Access Type: Keypad, Proximity Reader

Alternate Codes: PDL6600CRR/26D, PDL6600CRR26D

Audit Trail: 35000 Events

Backset: 2-3/4″

Battery Type: 5x, AA

Category: Access Control, Wireless

Certifications: ADA, FCC, UL 10C

Code Length: 3-6

Communication Technology: HID prox

Cylinder Type: Mortise Cylinder

Door Application: Access Management

Door Bore Prep: ANSI A115 Series Prep

Door Thickness: 1-5/8″-1-7/8″

Feedback: Audible Low Battery Alert, Audible & Visible Entry Indicator

Finish: Brushed Chrome

Finish Code: US26D

Fire Rated: Yes

Fire Rating: 180 min

Function: Classroom

Grade: Grade 1

Handing: Right Handed

Keypad Type: 12 Button

Latch Throw: 3/4″

Latchbolt Type: Deadlatch

Lever Design: Standard

Lock Category: Mortise Lockset

Manufacturer: Alarm Lock Systems Inc

Power Supply Type: Battery

Series: P/DL6600, Trilogy

Strike Type: ASA Strike

Users: 5000 User Codes
