KIT – Narrow Rim Exit Device, Electric Latch Retraction, Adams Rite

Description

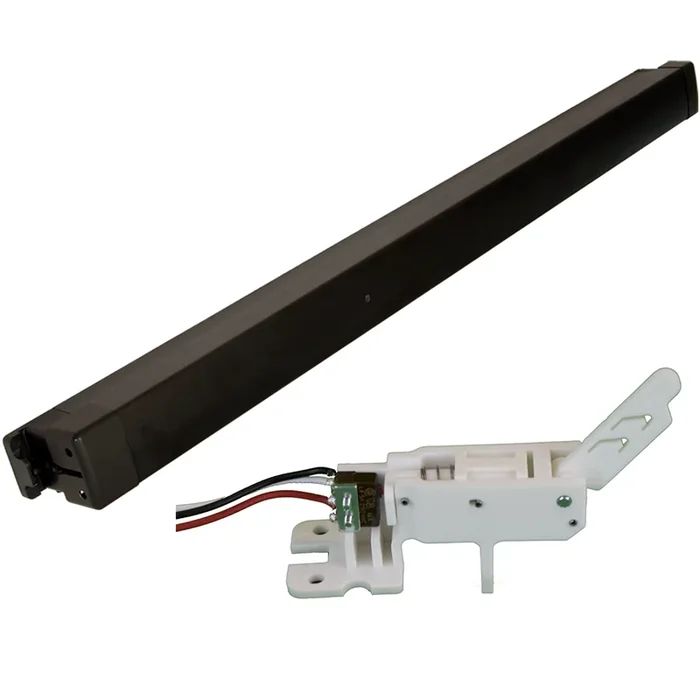

Adams Rite 8803EL-M-36-24V Narrow Rim Electric Exit Device, Solenoid Latch, Fits Aluminum Doors, 36in

Adams Rite Manufacturing 8803EL-M-36-24V KIT is a cutting-edge narrow rim exit device designed for both security and convenience. This electric solenoid latch retraction device is perfect for narrow and wide stile aluminum doors, ensuring compliance in various applications, including single doors and pairs with a mullion. With a robust push bar crafted from extruded aluminum, it comes clad or anodized in various finishes, including black anodized for a sleek look. This non-handed device accommodates door thicknesses of up to 2-1/4 inches and a minimum stile width of 2 inches, making it versatile for different installations. The standard push bar length of 36 inches is ideal for most entryways and can be field cut to suit smaller openings. Featuring standard dogging options with hex key or an electric dogging option, it ensures reliable security and functionality. The 8803EL-M-36-24V KIT is equipped with a switch monitor for door and lock sensing, enhancing security by providing real-time feedback on access. Suitable for panic devices and exit alarms, this exit device is certified for use on aluminum doors and combines durability with modern electric latch retraction technology, making it an ideal choice for building professionals and knowledgeable homeowners alike.

KIT – Narrow Rim Exit Device, Electric (Solenoid) Latch Retraction (EL), Single Switch (M), Fits Narrow and Wide Stile Aluminum Doors, 36in, 711/335 Black Anodized

Notice: The info below is not item specific.

The 8800 Series, Narrow Stile, Starwheel Rim Exit Devices are designed for narrow stile aluminum, hollow metal and wood applications requiring an exit device with a Starwheel interlocking latching solution. Designed for use in applications with single doors or pairs of doors with a mullion.

Features:

• Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
• Handing: Device is non-handed.
• Push bar Length: Standard sizes: dimensioned for 30″[762.0 mm], 36″ [914.4 mm], 42″ [1,066.8mm], and 48″ [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
• Door Thickness: Suits 1-3/4″ [44.5 mm] standard, up to 2-1/4″ [57.2 mm].
• Stile Width: Minimum 2″ [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
• Projection: 2-5/8″ [66.7 mm] when fully projected,1-5/8″ [41.3 mm] when dogged.
• Dogging: Standard dogging with hex key or optional cylinder dogging. Electric dogging option also available.
• Fasteners: Standard machine screws.
• Cylinders: Select any standard 1-5/32″ [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately.
• Cylinder x Fixed Pull Functions: For function 03 (Night latch – key releases latch) select any standard1-5/32″ [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
• Entry Trim Functions: For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1″ [25.4 mm] length, 1-5/32″ [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1″ [25.4mm] to 1-1/4″ [31.8 mm]. Available separately.
• Strike: Standard strike and narrow versions for centering doors in 4″jamb (both strikes included).
• Removable Mullion: Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices. 3890 Aluminum Mullion available separately. Select for use with doors up to 8′ [2.44 m] or 10′ [3.05 m]. Available in 313 Dark bronze anodized or 628 Clear anodized finish.

Finishes:

• US3 – Bright Brass
• US4 – Satin Brass
• US32 – Bright Stainless
• US32D – Satin Stainless

Attributes

Alternate Codes: 8803EL-M-36-24V, 8803ELM-3624V, 8803ELM3624V, ADR8803ELM-3624V

Category: Electrified Panic Devices, Panic Devices & Exit Alarms

Dogging: HD – Hex Dogging

Door And Lock Sensor: Switch Monitor

Door Application: Panic Devices & Exit Alarms

Door Type: Aluminum

Door Width: 36″

Electrical Option: Electric Latch Retraction

Exit Device Category: Narrow Stile Rim Exit, Starwheel Rim Exit

Finish Code: 335, 605, US3

Finish Color: Anodized Aluminum, Black, Bright Brass, Polished Brass

Handing: Non-Handed

Series: 8800

Stile Width: 2in minimum

Voltage: 24

Voltage Type: VDC – Direct

Resources

• Cut Sheet
