KIT – Mag-Stripe Stand Alone Apartment Cylindrical Lock by Schlage Electronic Security

Description

Schlage AD200-CY60MS-SPA626-RD C 8B Mag-Stripe Stand Alone Apartment Lock, Sparta Lever, Schlage IC Core, Satin Chrome

Schlage Electronic Security AD200-CY60MS-SPA626-RD C 8B KIT is a cutting-edge Mag-Stripe (Swipe Card) standalone cylindrical lock designed for modern apartment security. Featuring a sleek Sparta lever and a Schlage Large Format IC Core, this lock combines aesthetics with robust functionality. The brushed chrome finish (Satin Chrome 626) adds a contemporary touch, ensuring it complements any door style. This modular electronic lock supports up to 5,000 users and offers an audit trail for tracking access events, enhancing security management. The lock can be upgraded to a networked solution without needing removal, making it an excellent choice for evolving security needs. With features like request-to-exit and enter sensors, an interior cover tamper guard, and a door position switch, the AD200 is equipped for seamless integration into future access control systems. The AD200 operates effectively in a range of conditions, with an impressive operating temperature from -31°F to 151°F. It supports various power supply options, ensuring flexibility in installation. Certified to ANSI/BHMA Grade 1 standards, this durable lock is built for reliability and peace of mind in commercial and residential applications alike. Invest in the security of your property with Schlage’s innovative locking solution.

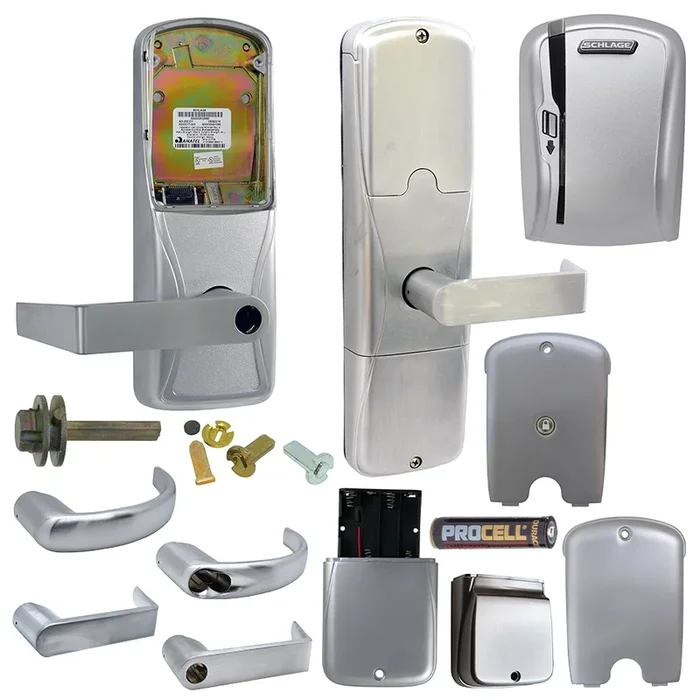

KIT – Mag-Stripe (Swipe Card) Stand Alone Apartment Cylindrical Lock, Sparta Lever, FSIC Prep, Schlage Large Format IC Core Included, 6-Pin C Keyway (1-Bitted Brushed Chrome Cylinder 626), Satin Chrome 626, US26D

Notice: The info below is not item specific.

AD Series electronic locks from Schlage are designed to be modular and provide more options to choose from, more functionality in the lock and more compatibility with existing systems. Its patent-pending modular design allows the lock to be customized to fit the needs of an application now, and can change to meet future needs without removing it from the door. Factory orderable options include choices of credential readers, chassis type, locking functions, power options, lever styles and finishes. It also offers a wide selection of features that can be configured in the field to customize your openings. The AD-200 is a simple, economical solution if no access control system currently exists in facility, or for openings that don’t require the control of a networked solution. The AD-200 is easily upgradable to a networked lock if requirements change in the future. On all AD series standalone locks, Schlage has built in many of the incremental features needed in a networked system such as request-to-exit and -enter sensors, interior cover tamper guard, as well as the door position switch. This way, if the customer chooses to network this opening in the future, all the components will be there to make the transition an easy one.

Features:

• Security that’s more intelligent and convenient than traditional mechanical locking devices
• Audit trail reports that allow you to track usage and events
• Update users and access rights at the lock using the keypad or handheld device
• The ability to upgrade to a networked solution without removing the lock from the door
• Available in cylindrical, mortise, mortise deadbolt and exit trim
• Compatible with major brands of master key systems and exit devices
• Hardwired remote push button release capability
• Programmable option for lighted occupancy indication. Available on privacy function locks manufactured after May 2019 with firmware version AD.A.126 or higher.

AD-200 Electronic Lock Specifications:

• Users: Up to 5000
• Audits: Up to 5000
• Credential verification time: ≤ 1 second
• Visual/audible communications: Tri-colored LEDs and audible indicators (field configurable)
• System interface: Handheld device (HHD)
• Power supply: 4AA, 8AA, 12 VDC or 24 VDC
• Voltage range: 4 VDC to 26 VDC
• Max current requirement: Up to 250 mA
• Battery life: Up to 2 yrs with 4AA
• Operating temperature: exterior -31° to 151°F (-35° to 66°C)
• Operating temperature: interior 32° to 120°F (0° to 49°C) (battery)
• Operating humidity: 0 – 100 non-condensing
• Certifications: ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS
• Accessories: Handheld device (HHD)

Mechanical Specifications:

• Handing: Handed to order, field reversible
• ANSI standard (meets or exceeds):
• Cylindrical: A156.25 locked outdoor A156.2 series 4000 grade 1
• Mortise: A156.25 locked outdoor A156.13 series 1000 grade 1
• Exit Trim: A156.25 locked outdoor A156.3 grade 1
• Door thickness: 1-3⁄4″ standard, 1-3⁄8″ to 2-3⁄4″ optional (available in 1⁄8″ increments)
• Backset:
• Cylindrical: Standard: 2-3⁄4″. Optional: 2-3⁄8″, 3-3⁄4″, 5″
• Mortise: 2-3⁄4″ only
• Exit Trim: Defined by exit device
• Latch bolt:
• Cylindrical: Standard: 1⁄2″ throw. Optional: 3⁄4″ throw
• Mortise: Standard: 3⁄4″ throw. Optional: 1″ throw on mortise deadbolt
• Exit Trim: Provided by exit device
• Levers: Pressure cast zinc, plated
• Strike: Standard: 1-3⁄16″ lip, ANSI, 1-1⁄4″ x 4-7⁄8″.
• Cylinder and keys: 6-pin Everest 29 S123 keyway conventional cylinder with two patented keys standard.

Functions:

• 40: Privacy
• 50: Office/classroom
• 60: Apartment
• 70: Storeroom

Reader:

• KP: Keypad
• MG: Magnetic stripe (insertion)
• MGK: Magnetic stripe + keypad (insertion)
• MS: Magnetic stripe (swipe)
• MSK: Magnetic stripe + keypad (swipe)
• MT: Multi-technology (125 kHz, 13.56 MHz, NFC)
• MTK: Multi-technology + keypad (125 kHz, 13.56 MHz, NFC)
• Si: HID support
• SiK: HID support + keypad
• DT: Dummy trim

Chassis:

• CY: Cylindrical
• MS: Mortise
• MD: Mortise deadbolt
• 993R: Exit trim – Rim/CVC/CVR
• 993S: Exit trim – SVR
• 993M: Exit trim – mortise
• 993DT: Non-functioning dummy trim for exit

Levers:

• ATH: Athens
• BRK: Boardwalk
• BRW: Broadway
• LAT: Latitude
• LON: Longitude
• RHO: Rhodes
• SPA: Sparta
• TLR: Tubular

Finishes:

• 626 – Satin chrome
• 605 – Bright brass
• 606 – Satin brass
• 612 – Satin bronze
• 619 – Satin nickel
• 625 – Bright chrome
• 643e – Aged bronze
• 626AM – Satin chrome antimicrobial

Attributes

Access Type: Hardwired, Magnetic Stripe, Rights On Lock, Standalone

Alternate Codes: AD200-CY60MS-SPA626-RD-8B, AD200CY60MSSPA626RD8B, AD200-CY60MS-SPA626-RD C 8B, AD200CY60MSSPA626RDC8B

Battery Type: 8x, AA, Alkaline

Category: Access Control, Commercial Electric Locks, Electric Locks, Lock Sets, Standalone, Standalone Locks, Standalone/Pushbutton Locks

Cylinder Type: 6-Pin, FSIC – Schlage

Door Application: Commercial Electric Locks

Door Bore Prep: Cylindrical Lockset 2.125in Prep

Door Thickness: 1-3/4″

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Function: Apartment

Grade: Grade 1

Keyway: Schlage C

Lever Design: Sparta

Lock Category: Cylindrical Lockset – Lever

Manufacturer: Schlage Electronic Security

Power Supply Type: Battery, Dual Voltage

Series: AD Networked

Voltage: 12, 24

Voltage Type: VDC – Direct
