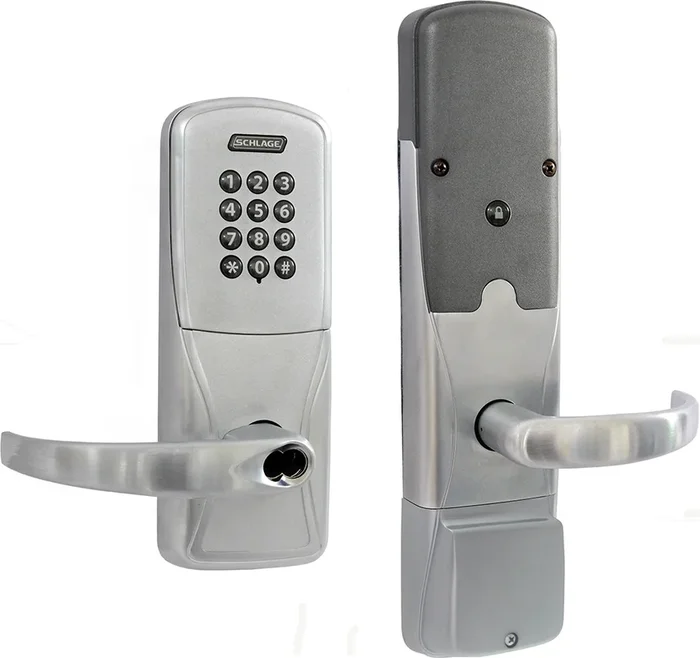

KIT – Keypad Networked Wireless Office Mortise Lock with Sparta Lever by Schlage

Description

Schlage AD400-MS50KP-SPA626-BD-8B KIT – Wireless Keypad Mortise Lock, Sparta Lever, SFIC, Grade 1, Satin Chrome

Schlage Electronic Security AD400-MS50KP-SPA626-BD-8B KIT is a state-of-the-art keypad networked wireless office mortise lock designed for robust security and ease of use. This Grade 1 lock features a stylish Sparta lever and is compatible with Small Format IC, providing flexibility in credential management. The integrated design combines essential components-such as an electrified lock, credential reader, and various sensors-into one cohesive unit, simplifying installation and enhancing functionality. With a 2-3/4 inch backset and field-reversible handing, this lock adapts to various door setups. The dual battery system, powered by 8 AA batteries, ensures a long-lasting performance of up to two years. It supports a range of credential technologies, including Schlage MiFare and NFC mobile, and allows for seamless integration with existing access control systems through its open architecture platform. The lock boasts secure encrypted data transmission, configurable dynamic channel switching to avoid RF interference, and a communication range of up to 200 feet. Designed for commercial applications, the AD400 excels in environments where traditional wiring is impractical, making it an ideal solution for both modern and historic buildings. Elevate your security with the advanced features and reliability of the Schlage AD400 electronic lock.

KIT – Keypad Networked Wireless Office, Mortise Lock, Sparta Lever, SFIC (Small Format IC), Less Core, 8AA Battery Kit, 2-3/4in Backset, UL, ANSI Strike, Field Reversible Handing, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

AD Series electronic locks from Schlage are designed to be modular and provide more options to choose from, more functionality in the lock, and more compatibility with existing access control systems. Its patented modular design allows the lock to be customized to fit the needs of an application now and changed to meet future needs without removing it from the door. To simplify installation, the AD series combines all the hardware components required at the door for a complete access control system into one integrated design that includes the electrified lock, credential reader, request-to-exit, and request-to-enter sensors, door position switch, tamper switch, and more. The AD-400 wireless networked lock gives you many of the key benefits of a hardwired access control system—without the wires. This allows you to secure doors that were traditionally difficult to run wires to in the past and increase the security throughout your facility.

Features:

• Open architecture platform – integrated into most popular physical access control systems through our PACS Alliance program
• Multi-technology credential compatibility includes Schlage MiFare, NFC mobile, and proximity
• Optional support for HID smart and NFC mobile credentials
• Panel interface options ensure seamless communication with the access control system
• Secure encrypted data transmission
• Unique communication protocols won’t interfere with other wireless networks
• ‘Wake up on Radio’ feature enables centralized lockdown in less than 10 seconds while still optimizing battery life up to 2 years
• Non-invasive wireless installation for historic buildings and sensitive areas
• Wireless accessories available for remote, gate, elevator, and portable or temporary (mustering) applications

AD-400 Electronic Lock Specifications:

• Modulation: 900 MHz spread spectrum, direct sequence, 10 channels
• Frequency range: 902-928 MHz
• Transmission/encryption: AES-128 bit key
• Credential verification time: < 1 second
• Wake-Up on Radio: Responds to lock/unlock command from host in less than 10 seconds in battery powered applications (per field configuration)
• Communication range: Up to 200 ft with obstructions (normal building construction), up to 1000 ft clear line of sight
• RF interference avoidance: Configurable dynamic channel switching
• Data rate: RF: 40 kbps
• Visual/audible communications: Tri-colored LED’s and audible indicators (field configurable)
• System interface: RS-485, Wiegand, or Clock & Data via PIM400 to host
• Power supply: 4AA, 8AA, 12 VDC or 24 VDC
• Voltage range: 4 VDC to 26 VDC
• Max current requirement: Up to 250 mA
• Battery life: Up to 2 yrs with 4AA
• Operating temperature: exterior 31° to 151°F (-35° to 66&edg;C)
• Operating temperature: interior 32° to 120°F (0° to 49°C) (battery)
• Operating humidity: 0 – 100% non-condensing
• Certifications: ANSI/BHMA A156.25, ANSI/BHMA grade 1, UL 294, UL10 C, FCC Part 15, ADA, RoHS
• Accessories: Panel interface module (PIM400), handheld device (HHD), remote antennas for PIM400 to extend range, Dry Contact Relay Board (RLBD) may be required for supervised inputs (Wiegand systems)

Mechanical Specifications:

• Handing: Handed to order, field reversible
• ANSI standard (meets or exceeds):
• Cylindrical: A156.25 locked outdoor A156.2 series 4000 grade 1
• Mortise: A156.25 locked outdoor A156.13 series 1000 grade 1
• Exit Trim: A156.25 locked outdoor A156.3 grade 1
• Door Thickness: 1-3⁄4″ standard, 1-3⁄8″ to 2-3⁄4″ optional (available in 1⁄8″ increments)
• Backset:
• Cylindrical: Standard: 2-3⁄4″. Optional: 2-3⁄8″, 3-3⁄4″, 5″
• Mortise: 2-3⁄4″ only
• Latch Bolt:
• Cylindrical: Standard: 1⁄2″ throw. Optional: 3⁄4″ throw
• Mortise: Standard: 3⁄4″ throw. Optional: 1″ throw on mortise deadbolt
• Levers: Pressure cast zinc, plated
• Strike: Standard: 1-3⁄16″ lip, ANSI, 1-1⁄4″ x 4-7⁄8″
• Cylinder and keys: 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys standard.

Functions:

• 40: Privacy
• 50: Office/classroom
• 60: Apartment
• 70: Storeroom

Reader:

• KP: Keypad
• MG: Magnetic stripe (insertion)
• MGK: Magnetic stripe + keypad (insertion)
• MS: Magnetic stripe (swipe)
• MSK: Magnetic stripe + keypad (swipe)
• MT: Multi-technology (125 kHz, 13.56 MHz, NFC)
• MTK: Multi-technology + keypad (125 kHz, 13.56 MHz, NFC)
• FMK: FIPS 201-1 compliant multi-technology + keypad (125 kHz and 13.56 MHz)
• Si: HID support
• SiK: HID support + keypad
• DT: Dummy trim

Chassis:

• CY: Cylindrical
• MS: Mortise
• MD: Mortise deadbolt
• 993R: Exit trim – Rim/CVC/CVR
• 993S: Exit trim – SVR
• 993M: Exit trim – mortise
• 993DT: Non-functioning dummy trim for exit

Levers:

• ATH: Athens
• BRK: Boardwalk
• BRW: Broadway
• LAT: Latitude
• LON: Longitude
• RHO: Rhodes
• SPA: Sparta
• TLR: Tubular

Finishes:

• 605 – Bright brass
• 606 – Satin brass
• 612 – Satin bronze
• 619 – Satin nickel
• 625 – Bright chrome
• 626 – Satin chrome
• 643e – Aged bronze
• 626AM – Satin chrome antimicrobial

Attributes

Access Type: Keypad, Networked, Wireless

Alternate Codes: AD400-MS50KP-SPA626-BD-8B, AD400MS50KPSPA626BD8B

Battery Type: 8x, AA, Alkaline

Category: Access Control, Wireless, Wireless Locks

Cylinder Type: Less Core, SFIC

Door Application: Commercial Electric Locks

Door Bore Prep: Cylindrical Lockset 2.125in Prep

Door Thickness: 1-3/4″

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Function: Classroom, Office

Grade: Grade 1

Keyway: Schlage S123

Lever Design: Sparta

Lock Category: Mortise Lock Trim

Manufacturer: Schlage Electronic Security

Power Supply Type: Battery, Dual Voltage

Series: AD Networked

Voltage: 12, 24

Voltage Type: VDC – Direct
