KIT – Grade 1 Electric Lock/Unlock (EL/EU) Storeroom, Cylindrical Lock, Satin Chrome

Description

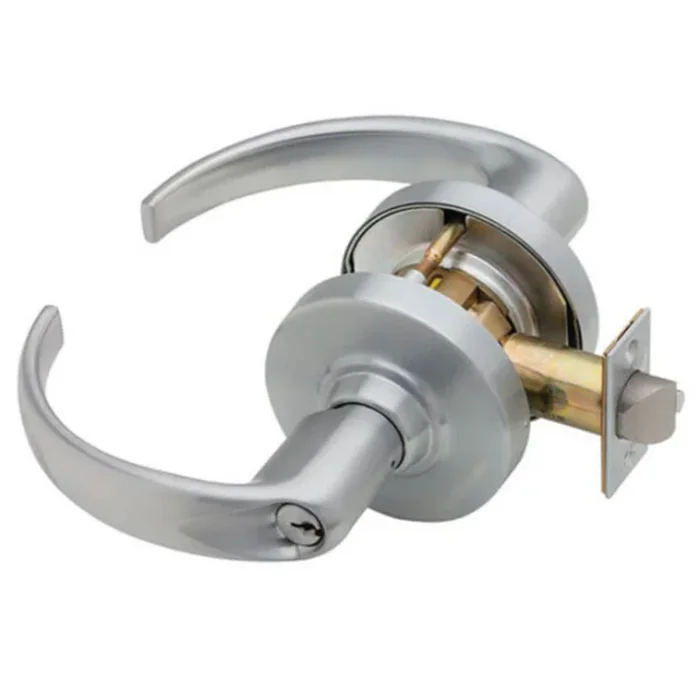

Schlage ND80EU-RD-SPA-626 S123 Grade 1 Electric Lock/Unlock Storeroom, Cylindrical, Satin Chrome, 12/24VDC

Schlage Lock Company ND80EU-RD-SPA-626 S123 KIT is a robust Grade 1 electric lock designed for storeroom applications, combining strength and advanced functionality. This cylindrical lock features a sleek Sparta lever and operates on a 12/24V DC power supply, ensuring versatile installation options. With the Schlage Full Sized IC and S123 keyway, it offers enhanced security with a 1-bitted satin chrome core. Engineered to exceed ANSI/BHMA Grade 1 certification, this lock withstands up to 3,100 in-lbs of abusive lever torque and 1,600 lbs of offset lever pull, protecting against pry-bar attacks. The ND series locks are built for durability, displaying near-zero droop or wobble even after 16 million cycles. Its modular design accommodates various door preparations and is ideal for both new construction and retrofit projects. The ND80EU also provides multiple functionalities: it features a fail-safe operation, ensuring the outside lever unlocks during a power failure, while the inside lever remains free for immediate egress. With certifications that meet stringent fire and hurricane standards, this lock is designed for reliability and performance. Available in a stylish satin chrome finish, the Schlage ND80EU-RD-SPA-626 S123 KIT is a smart choice for professionals seeking superior security solutions for commercial environments.

KIT – Grade 1 Electric Lock/Unlock (EL/EU) Storeroom, Cylindrical Lock, Sparta Lever, 12/24VDC, FSIC (Schlage Full Sized IC), S123 Keyway (1-Bitted Satin Chrome Core 626), 2-3/4in Backset, UL, ANSI Strike, 626/US26D Satin Chrome

Notice: The info below is not item specific.

ND series is ANSI/BHMA grade 1 certified and performs beyond the grade 1 standards. The lock withstands 3,100 in-lb. of abusive lever torque, as well as 1,600 lbs. of offset lever pull for protection against pry bar attacks. The lock is not only strong from attacks, but it also shows nearly zero droop or wobble after 16 million cycles. ND series locks come in 10 finishes, nine lever designs and use an ANSI 161 door preparation, commonly used with cylindrical locks. They are ideal for all new construction and retrofit applications.

Features:

• Improved strength and security:
• No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse).
• No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks).
• No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks).
• Improved performance:
• Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) – without the use of set screws or O-rings.
• Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors.
• Improved reliability:
• Cast steel spindle construction exceeding 16 million cycles.
• Withstood aggressive Schlage development testing including lever-snap and abusive cycling.
• Functionality:
• 31 mechanical functions.
• 6 wired functions with:
• Autodetecting 12-24V DC input.
• Switch-selectable EL/EU operation.
• Modular request to exit (RX).
• 0.230A max/0.010A holding current.
• Available in 10 finishes, 5 lever designs, and 2 rose designs.
• Multiple key systems available – open, patented, restricted, geographic exclusive, UL437.
• Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale.
• Certifications:
• Exceeds BHMA A156.2 requirements for grade 1 cylindrical locks.
• Exceeds BHMA A156.25 requirements for indoor electrified locks.
• UL10C listed for 3-hour fire doors up to 4’ 0″ x 10’ 0″.
• Meets Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) requirements for hurricanes.

Specifications:

• Lever styles: Rhodes (RHO).
• Lever Width: 4 9⁄16″.
• Lever Projection: 2 15⁄16″.
• Rose Diameter: 3-7/16″ (Standard).
• Mechanical keyed function:
• Schlage: ND80EU.
• Outside lever continuously locked (EL) or unlocked (EU) by 12-24V DC.
• EL is fail safe (power fail unlocks outside lever).
• EU is fail secure (power fail locks outside lever).
• Key outside serves as mechanical override
• Inside lever always free for immediate egress.
• Available with Request to Exit (RX) function.
• Conventional cylinder:
• P: 6-pin Conventional (standard).
• Z: SL 7-pin Conventional (A2 pinning).
• L: Less Conventional.
• C: Less 6-pin Conventional double cylinder.
• Full size interchangeable core (FSIC):
• R: 6-pin FSIC.
• M: SL 7-pin FSIC (A2 pinning).
• J: Less FSIC.
• T: Refundable FSIC construction core.
• Small format interchangeable core (SFIC):
• G: 7-pin SFIC (A2 pinning).
• B: Less SFIC.
• BDC: Disposable SFIC construction core.
• H: Refundable SFIC construction core.
• Chassis:
• Material: Modular design of zinc and steel components plated for corrosion protection.
• Door thickness: Standard: 1-5/8″ x 2-1/8″. Optional: 1-3/8″ – 6″ EE, EO, EI, ED configurations.
• Trim:
• Handing: Non-handed.
• Levers: Pressure cast zinc, plated to match product finish specification.
• Roses: Wrought brass, bronze, or zinc, plated to match product finish specification.
• Latch:
• Backset: Standard: 2-3/4″. Optional: 2-3/8″, 3-3/4″, 7-3/4″.
• Faceplate: Standard: 1-1/8″ x 2-1/4″. Optional: 1″ x 2-1/4″ for 2-3/8″ backset doors.
• Latch: Standard: 1/2″ throw via Oil Impregnated Stainless Steel. Optional: 3/4″ throw anti-friction bolt available for pairs of doors.
• Strike: Standard: ANSI Curved Lip 1-1/4″ x 4-7/8″ x 1-3/16″. Optional: T Strike, ANSI strikes with alternative lip lengths, dust box options.
• Keying:
• Cylinder format: 6-pin Conventional (standard); also available in FSIC, SFIC and 7-pin SL cylinder formats plus less cylinder options designed to fit competitive cores from Sargent, Corbin Russwin, Yale and Medeco.
• Keyway: Patented Everest 29 S123 (standard); also available in open, restricted, and Primus XP security levels with available master keying and construction keying.
• Wired electrified:
• Input Voltage: Autodetecting 12-24V DC, + 10%.
• Operating mode: Fail Safe or Fail Secure via switch on chassis.
• Current draw: 0.23 amps maximum; 0.01 amps holding.
• Request to Exit: Modular – 3A @ 125VAC / 2A @ 30VDC.
• Warranty:
• 10 years mechanical, 1 year wired electrified.

Finishes:

• 605/US3 – Bright Brass
• 606/US4 – Satin Brass
• 612/US10 – Satin Bronze
• 613/US10B – Oil Rubbed Bronze
• 619/US15 – Satin Nickel
• 622/US19 – Matte Black
• 625/US26 – Bright Chrome
• 626/US26D – Satin Chrome
• 626AM – Satin Chrome, Antimicrobial
• 643e/716 – Aged Bronze

Attributes

Alternate Codes: ND80EU-RD-SPA-626 S123, ND80EURD-SPA626 S123, ND80EURDSPA626S123, SCHND80EURD-SPA626 S123

Category: Commercial Electric Locks, Cylindrical Electric Locks, Deadbolts, Electric Locks, Lock Sets, Standalone/Pushbutton Locks

Cylinder Type: 6-Pin, FSIC – Schlage

Door Application: Cylindrical Levers

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Fire Rated: Yes

Fire Rating: 180 min

Function: Electric Unlocked

Keying: 1-Bitted

Keyway: Schlage S123

Lever Design: Sparta

Series: ND
