Description

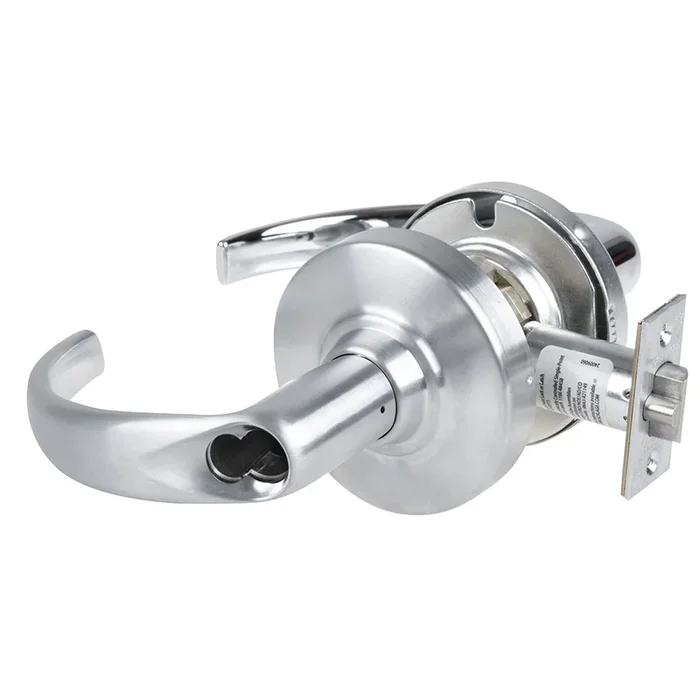

Schlage ND98JD SPA 626 Cylindrical Lock
Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
- No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse)
- No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks)
- No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks)
- Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) – without the use of set screws or O-rings
- Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors
- Cast steel spindle construction exceeding 16 million cycles
- Withstood aggressive Schlage development testing including lever-snap and abusive cycling
- 31 mechanical functions
- 6 wired functions with:
- Autodetecting 12-24V DC input
- Switch-selectable EL/EU operation
- Modular request to exit (RX)
- 0.230A max/0.010A holding current
- Available in 10 finishes, 5 lever designs, and 2 rose designs
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
- Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale
- Certifications: Exceeds BHMA A156.2 requirements for grade 1 cylindrical locks. Exceeds BHMA A156.25 requirements for indoor electrified locks.
Attributes
Manufacturer surcharge: 4.5%
Alternate Codes: ND98-JD-SPA-626, ND98JDSPA626, SCHND98JDSPA626
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F110
Application: Vandlgard
Bolt Projection: 1/2″
Cam Number: N123-098
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Commercial Residential: Commercial
Country of Origin: Mexico
Country of origin: Mexico
Cylinder Type: Schlage FSIC Prep, Less Core
Door Thickness: 1-5/8″ to 2-1/8″
Finish: 626/US26D
Finish : Satin Chrome
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 98-Classroom Security (180-degree lockdown)
Grade: Grade 1
Handing: Non-Handed
Installation: Commercial
Leverknob Design: SPA – Sparta Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Years
Lock Face Size: 2-1/4″ x 1-1/8″
Origin: Mexico
Pack Qty: 1
Pins: 6
Projection: 3-1/2″
Roseescutcheon Design: Rose
Roseescutcheon Dimensions: 3-7/16″
Screws: Wood/Machine Screws
Series: ND Series Lever Locks
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 13-247
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Resources
- Everest 29 S Keyway Family Diagram
- Everest Keyways Diagram
- ND Series Electrified Functions Installation Instructions
- ND Series Electrified Functions Installation Instructions (solenoid, mfg before 3-14-2016)
- ND Series Hollow Metal Door Spacer Installation Instructions
- ND Series Lever Locks Cut Sheet
- ND Series Locks & Latches Catalog
- ND Series Locks & Latches Warranty
- ND Series Mechanical Grade 1 Cylindrical Locks Catalog
- ND Series Template
- ND170 Installation Instructions (locks manufactured after 8-15-2012)
- ND170 Installation Instructions (locks manufactured before 8-15-2012)
- ND25 Installation Instructions (locks manufactured after 8-15-2012)
- ND25 Installation Instructions (locks manufactured before 8-15-2012)
- Observe Keyways for Classic Conventional Cylinders Diagram
- Observe Keyways for Classic Primus XP Cylinders Diagram
- Schlage ND Series Electrified Cylindrical Locks Sell Sheet
- Schlage ND Series Indicator Pricing Addendum
- Schlage ND Series Sell Sheet
- Schlage ND Series Service Manual
- Schlage ND-Series Standard Installation Instructions (locks manufactured after 8-15-2012)
- Schlage ND-Series Standard Installation Instructions (locks manufactured before 8-15-2012)
- Video: AL Lock Installation
- Von Duprin Finishes Chart
