Description

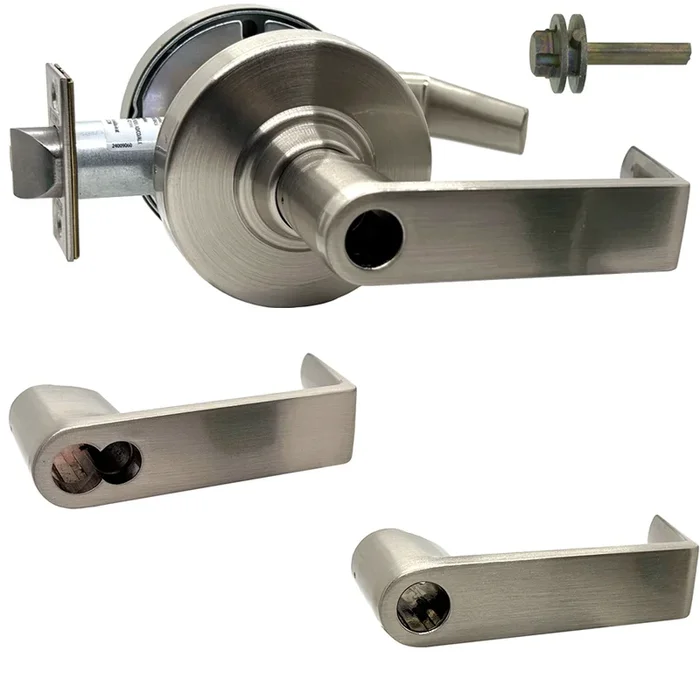

Schlage ND70JD RHO 619 Lock Cylindrical Lock
The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.
- Classroom, Outside Lever Locked and Unlocked by Key, Inside Lever Always Unlocked for Immediate Egress
- ANSI/BHMA Certified A156.2-2011
- 1-5/8″ to 2-1/8″ Door Range
- Commercial Grade 1
- UL Listed for 3 Hour Fire Door
Attributes
Alternate Codes: ND70JD-RHO619, ND70JDRHO619, SCHND70JD-RHO619
Ansi Function: F84 – Classroom
Ansi Function : Classroom
Baa Qualified: Yes
Backset: 2-3/4″ Backset
Bolt Protection: 1/2″
Bore Hole Diameter: 2-1/8 In.
Category: Commercial Locks, Cylindrical Levers, Lock Sets
Country of Origin: Mexico
Cylinder Type: Schlage FSIC Less Core
Cylinders Present: Single Cylinder
Design: Rhodes
Door Thickness: 1-5/8″ – 2-1/8″
Finish: 619/US15
Finish : Satin Nickel Plated Clear Coated
Fire Rated: 3 Hours {A}
Function: 70-Classroom Lock
Function Family: Classroom
Grade: Grade 1
Hand: Not Handed
Latch Backset Dim: 2-3/4 In.
Latch Bore Diameter: 1 In.
Latch Number: 13-247
Latch Type: Dead Latch (Guarded)
Lever Knob: Lever
Lever Knob Design: RHO – Rhodes
Lever Knob Design Family: Straight Return Lever
Lever Knob Design Name: Rhodes
Limited Warranty: 3 Years
Lock Face Size: 2-1/4 In. x 1-1/8 In.
Manufacturer Function: Classroom Lock
Manufacturer Function : Outside lever locked and unlocked by key. Inside lever always unlocked for immediate egress.
Maximum Door Thickness: 2-1/8 In.
Minimum Door Thickness: 1-5/8 In.
Num Pins: 6
Projection: 2-15/16 In.
Rose Escutcheon: Rose
Rose Escutcheon Design: 3-7/16 In. Diameter
Rose Escutcheon Dimensions: 3-7/16″
Screws: Combination
Series: ND Series Lever Locks
Strike: ASA Strike
Strike Dimensions: 1-1/4 In. x 4-7/8 In.
Strike Height: 4-7/8″
Strike Number: 10-025
Strike Type: ASA
Strike Width: 1-1/4″
Structure Cylinder: J
Structure Function: 70
Structure Latch: D
Structure Latch Number: 13-247
Structure Outside Finish: 619
Structure Outside Trim: RHO
Structure Series: ND
Structure Strike Number: 10-025
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
