KIT – Fire-Rated QEL CVR Smooth Exit Device with 996L-17 Lever Trim

Description

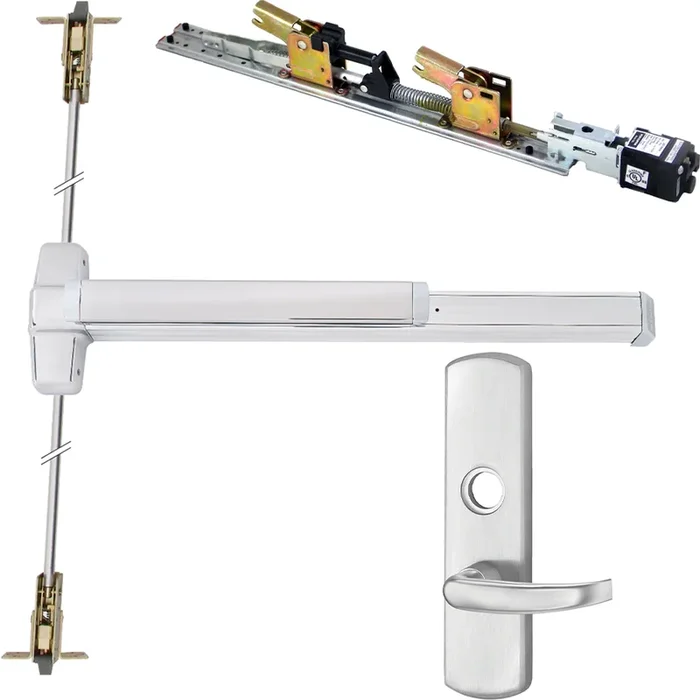

Von Duprin QELA-9847L-F-626-48-RHR-17 KIT – Fire-Rated QEL CVR Smooth Exit Device, 996L-17 Lever Trim, RHR, 48-96in

Von Duprin QELA-9847L-F-626-48-RHR-17 KIT combines advanced security technology with a sleek design, making it an ideal choice for fire-rated applications. This Quiet Electric Latch Retraction (QEL) exit device features a concealed vertical rod (CVR) mechanism, ensuring smooth and reliable operation while maintaining a clean aesthetic. Designed for doors ranging from 48 inches to 96 inches, it meets the highest standards with ANSI/BHMA A156.3 Grade 1 certification and UL listing for fire exit hardware. The device boasts a deadlocking latch bolt with a 5/8-inch throw, providing added security. Its mechanism case dimensions of 2-1/4 inches square and an adjustable centerline height from 35-5/8 inches to 49-5/8 inches enhance versatility for various installations. The round, two-piece adjustable vertical rods allow for easy customization, accommodating door heights up to 8 feet 4 inches, with extension rod kits available for taller doors. Finished in durable satin chrome (626), the QELA-9847L is not only functional but also stylish, seamlessly integrating into any architectural style. With options for electric locking, monitoring, and request to exit, this exit device is a reliable solution for both commercial and residential settings, ensuring safety and convenience during emergencies.

KIT – Fire-Rated, QEL (Quiet Electric Latch Retraction), CVR (Concealed Vertical Rod) Smooth Exit Device, 996L-17 Lever Trim (Requires Rim Cylinder), RHR Right Hand Reverse/Reversible Handing (Snap Ring Tool Required), 48in x Up to 96in, No Dogging, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

9847-F/9947-F Fire exit concealed vertical rod device are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. The 9847-F device has a smooth mechanism case and the 9947-F device has a grooved case. The concealed vertical rod device is non-handed except when the following device option is used: SS (signal switch) devices.

Specifications:

• Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
• Device Lengths:
• 2″ – 2″ (610 mm) Door size (shipped less UL label)
• 3″ – 2″4″ to 3″ (711mm to 914 mm) Door size
• 4″ – 2″10″ to 4″ (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor: 39 5/8″ (1006 mm) Standard adjustable from 35 5/8″ (905mm) to 49 5/8″ (1260mm)
• Center Case: 8″ x 2-3/4″ x 2-3/8″ (203mm x 70mm x 60mm)
• Mechanism Case: 2-1/4″ x 2-1/4″ (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16″ (97 mm)
• Push bar depressed – 3-1/16″ (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5/8″ (16mm) throw
• Door undercut: 1/4″ (7mm) recommended
• Top and Bottom Latch Case: 3-3⁄4″ x 1-1⁄2″ x 1″ (95mm x 38mm x 25mm)
• Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6’8″ (2027mm) to 8’4″(2533mm). Bottom rod adjustable 35 5/8″ (905 mm) to 49 5/8″ (1260 mm). Extension rod kits available for doors over 8’4″ (2533mm).
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal doors. Optional 425 SNB available.
• Electrical Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• GBK: Glass bead kit
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic latch retraction
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging options: No mechanical dogging; QEL options available
• Strikes:
• Top – 338 – Unfinished
• Bottom – 385A – Unfinished

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4″ mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4″ mortise cylinder

Finishes:

• 605 – Bright brass
• 606 – Satin brass
• 612 – Satin bronze
• 613 – Satin bronze-oil rubbed
• 625 – Bright chrome
• 626 – Satin chrome
• 626-AM – Satin chrome, antimicrobial coating
• 643e – Aged bronze
• 693 – Painted black
• 721 – Bright brass
• 728 – Satin brass

Features

• Projection:
• Top and Bottom Latch Case: 3-3⁄4″ x 1-1⁄2″ x 1″ (95mm x 38mm x 25mm)
• Top – 338 – Unfinished
• RX: Request to exit
• GBK: Glass bead kit
• 4″ – 2″10″ to 4″ (864 mm to 1219 mm) Door size
• ALK: Alarm exit kit
• -2SI: Double cylinder with security indicator
• Push bar neutral – 3-13/16″ (97 mm)
• EL: Electric latch retraction
• SNB: Sex bolts
• CON: Allegion Connect
• -2: Double cylinder
• PN: Pneumatic latch retraction
• QEL: Quiet electric latch retraction
• Latch bolt: Deadlocking top & bottom bolt, 5/8″ (16mm) throw
• Mechanical Options:
• Mechanism Case: 2-1/4″ x 2-1/4″ (57mm x 57mm)
• Center Case: 8″ x 2-3/4″ x 2-3/8″ (203mm x 70mm x 60mm)
• WP-RX: Waterproof request to exit
• PL: Pullman latch
• Device Lengths:
• E: Electric locking and unlocking trim
• SS: Signal switch
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal doors. Optional 425 SNB available.
• ESL: Emergency secure lockdown
• CX: Chexit delayed exit
• Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
• Dogging options: No mechanical dogging; QEL options available
• Push bar depressed – 3-1/16″ (78 mm)
• LX: Latch bolt monitor switch
• 2″ – 2″ (610 mm) Door size (shipped less UL label)
• Device Centerline from Finished Floor: 39 5/8″ (1006 mm) Standard adjustable from 35 5/8″ (905mm) to 49 5/8″ (1260mm)
• Electrical Options:
• Strikes:
• Bottom – 385A – Unfinished
• SEC: Security screws
• Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6’8″ (2027mm) to 8’4″(2533mm). Bottom rod adjustable 35 5/8″ (905 mm) to 49 5/8″ (1260 mm). Extension rod kits available for doors over 8’4″ (2533mm).
• 3″ – 2″4″ to 3″ (711mm to 914 mm) Door size
• LBR: Less bottom rod
• Door undercut: 1/4″ (7mm) recommended
• RX2: Double request to exit
• WH: Weep holes

Attributes

Ship via: No UPS – Common Carrier Only

Alternate Codes: QELA-9847L-F-626-48-RHR-17, QELA9847LF62648RHR17

Category: Electrified Panic Devices, Panic Devices & Exit Alarms

Certifications: A156.3, ANSI, ANSI/UL 10C, ANSI/UL 305, BHMA, CAN/ULC-S104

Device Width: 48″

Door Application: Panic Devices & Exit Alarms

Electrical Option: Electric Latch Retraction, Quiet

Exit Device Category: Concealed Vertical Rod Exit CVR

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Fire Rated: Yes

Fire Rating: 180 min

Function: Classroom, Lever

Grade: Grade 1

Handing: Right Handed Reverse

Lever Design: 17

Manufacturer: Von Duprin

Series: 98/99

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
