KIT – Fire-Rated CVR Smooth Exit Device with 996L-03 Lever Trim by Von Duprin

Description

Von Duprin 9847L-F-626-36-RHR-03 Fire-Rated CVR Smooth Exit Device, 996L-03 Lever Trim, RHR, 36in-96in, Grade 1

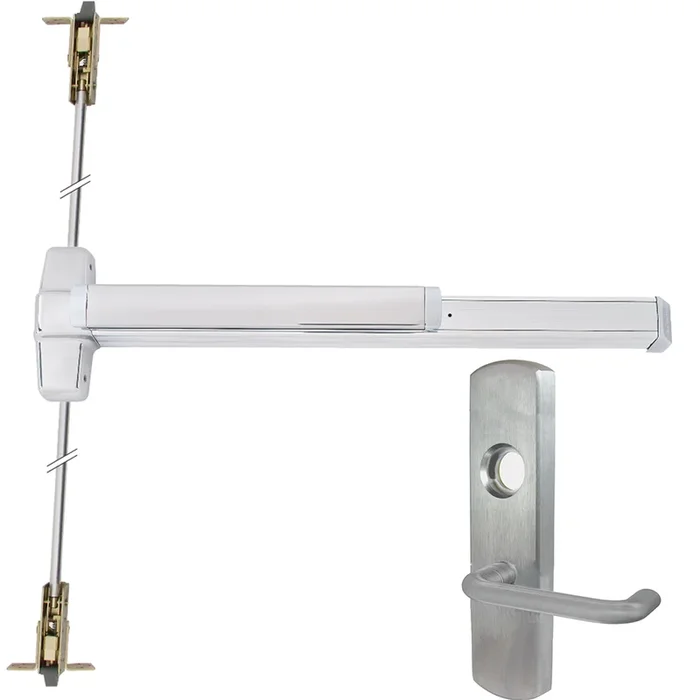

Von Duprin 9847L-F-626-36-RHR-03 KIT is a fire-rated concealed vertical rod exit device designed for commercial applications requiring reliable access and security. This Grade 1 device meets ANSI/BHMA A156.3 2014 standards and is UL listed for fire exit hardware, ensuring safety and durability under critical conditions. With a sleek satin chrome finish (626/US26D), the 9847L features a smooth mechanism case that blends seamlessly with modern interiors. The device accommodates door sizes from 36 inches up to 96 inches and offers easy, field-selectable functions, including exit only, dummy trim, and night latch options. Its non-handed design simplifies installation and adaptability across various door types. This model includes a deadlocking top and bottom latch bolt, providing a 5/8-inch throw for enhanced security. The vertical rods are adjustable, accommodating heights from 6’8″ to 8’4″, making it versatile for different applications. Additionally, the device supports a range of electrical options, such as request-to-exit features and electric locking mechanisms, ensuring flexibility for security needs. Perfect for hollow metal doors, the Von Duprin 9847L-F-626-36-RHR-03 KIT combines functionality and aesthetics, making it a top choice for building professionals and knowledgeable homeowners alike.

KIT – Fire-Rated, CVR (Concealed Vertical Rod) Smooth Exit Device, 996L-03 Lever Trim (Requires Rim Cylinder), RHR Right Hand Reverse/Reversible Handing (Snap Ring Tool Required), 36in x Up to 96in, No Dogging, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

9847-F/9947-F Fire exit concealed vertical rod device are certified to ANSI/BHMA A156.3 2014, grade 1 and UL listed for fire exit hardware. The 9847-F device has a smooth mechanism case and the 9947-F device has a grooved case. The concealed vertical rod device is non-handed except when the following device option is used: SS (signal switch) devices.

Specifications:

• Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
• Device Lengths:
• 2: 2″ (610 mm) Door size (shipped less UL label)
• 3: 2″4″ to 3″ (711mm to 914 mm) Door size
• 4: 2″10″ to 4″ (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor: 39 5/8″ (1006 mm) Standard adjustable from 35 5/8″ (905mm) to 49 5/8″ (1260mm)
• Center Case: 8″ x 2-3/4″ x 2-3/8″ (203mm x 70mm x 60mm)
• Mechanism Case: 2-1/4″ x 2-1/4″ (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16″ (97 mm)
• Push bar depressed – 3-1/16″ (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5/8″ (16mm) throw
• Door undercut: 1/4″ (7mm) recommended
• Top and Bottom Latch Case: 3-3⁄4″ x 1-1⁄2″ x 1″ (95mm x 38mm x 25mm)
• Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6’8″ (2027mm) to 8’4″(2533mm). Bottom rod adjustable 35 5/8″ (905 mm) to 49 5/8″ (1260 mm). Extension rod kits available for doors over 8’4″ (2533mm).
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal doors. Optional 425 SNB available.
• Electrical Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• GBK: Glass bead kit
• LBR: Less bottom rod
• PN: Pneumatic latch retraction
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging options: No mechanical dogging; QEL options available
• Strikes:
• Top – 338 – Unfinished
• Bottom – 385A – Unfinished

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4″ mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4″ mortise cylinder

Finishes:

• 605 – Bright Brass
• 606 – Satin Brass
• 612 – Satin Bronze
• 613 – Satin Bronze-Oil Rubbed
• 625 – Bright Chrome
• 626 – Satin Chrome
• 626-AM – Satin chrome, Antimicrobial coating
• 643e – Aged Bronze
• 693 – Painted Black
• 721 – Bright Brass
• 728 – Satin Brass

Features

• Projection:
• Top and Bottom Latch Case: 3-3⁄4″ x 1-1⁄2″ x 1″ (95mm x 38mm x 25mm)
• Top – 338 – Unfinished
• RX: Request to exit
• GBK: Glass bead kit
• ALK: Alarm exit kit
• -2SI: Double cylinder with security indicator
• Push bar neutral – 3-13/16″ (97 mm)
• EL: Electric latch retraction
• SNB: Sex bolts
• CON: Allegion Connect
• -2: Double cylinder
• 4: 2″10″ to 4″ (864 mm to 1219 mm) Door size
• PN: Pneumatic latch retraction
• QEL: Quiet electric latch retraction
• Latch bolt: Deadlocking top & bottom bolt, 5/8″ (16mm) throw
• Mechanical Options:
• Mechanism Case: 2-1/4″ x 2-1/4″ (57mm x 57mm)
• Center Case: 8″ x 2-3/4″ x 2-3/8″ (203mm x 70mm x 60mm)
• WP-RX: Waterproof request to exit
• Device Lengths:
• 3: 2″4″ to 3″ (711mm to 914 mm) Door size
• E: Electric locking and unlocking trim
• SS: Signal switch
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal doors. Optional 425 SNB available.
• ESL: Emergency secure lockdown
• CX: Chexit delayed exit
• Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
• Dogging options: No mechanical dogging; QEL options available
• Push bar depressed – 3-1/16″ (78 mm)
• LX: Latch bolt monitor switch
• Device Centerline from Finished Floor: 39 5/8″ (1006 mm) Standard adjustable from 35 5/8″ (905mm) to 49 5/8″ (1260mm)
• Electrical Options:
• Strikes:
• Bottom – 385A – Unfinished
• 2: 2″ (610 mm) Door size (shipped less UL label)
• SEC: Security screws
• Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6’8″ (2027mm) to 8’4″(2533mm). Bottom rod adjustable 35 5/8″ (905 mm) to 49 5/8″ (1260 mm). Extension rod kits available for doors over 8’4″ (2533mm).
• LBR: Less bottom rod
• Door undercut: 1/4″ (7mm) recommended
• RX2: Double request to exit
• WH: Weep holes

Attributes

Ship via: No UPS – Common Carrier Only

Alternate Codes: 9847L-F-626-36-RHR-03, 9847LF62636RHR03

Category: Commercial Electric Locks, CVR Panic Devices, Electric Locks, Glass Aluminum Hardware, Lock Sets, Narrow Style Electric Locks, Narrow Style Panic Devices, Panic Devices, Panic Devices & Exit Alarms, Standalone/Pushbutton Locks

Center Line: 3′ 3-5/8″

Certifications: A156.3, ANSI, ANSI/UL 10C, ANSI/UL 305, BHMA, CAN/ULC-S104

Device Width: 36″

Door Application: Panic Devices & Exit Alarms

Door Frame Type: Hollow Metal Frame

Door Thickness: 1-3/4″

Door Type: Hollow Metal

Exit Device Category: Concealed Vertical Rod Exit CVR

Finish Code: 626

Finish Color: Brushed Chrome, Satin Chrome

Fire Rated: Yes

Fire Rating: 180 min

Function: Classroom, Lever

Grade: Grade 1

Handing: Right Handed Reverse

Lever Design: 3

Manufacturer: Von Duprin

Series: 98/99

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
