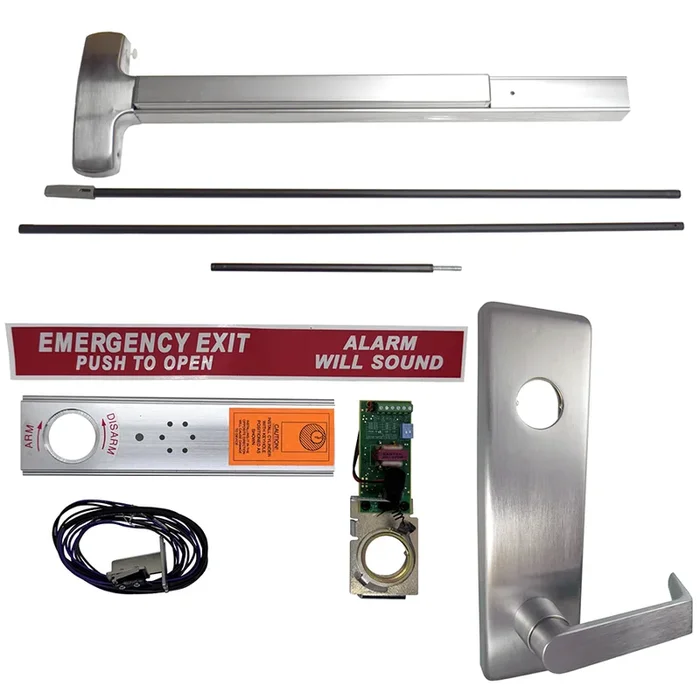

KIT – Exit Alarm, CVR Concealed Vertical Rod Exit Device, Satin Chrome

Description

Falcon Lock EA-25C-L-DAN-US26D-36X96-RHR KIT – Exit Alarm CVR Concealed Vertical Rod Device, Satin Chrome, Grade 1

Falcon Lock EA-25C-L-DAN-US26D-36X96-RHR KIT is an advanced exit alarm system designed for optimal security and safety in commercial settings. This concealed vertical rod exit device features a robust Dane lever trim and is ideal for doors measuring 36 inches by 96 inches. The exit alarm operates on a battery-powered system with a 110 dB alarm, providing a reliable alert when the touchbar is engaged. A standard 1 1⁄4″ mortise cylinder with an “A” cam is required for resetting the alarm. The device supports various configurations, including rim, mortise, and surface vertical rod types, and is UL listed for assurance of quality and performance. With a standby battery life of up to six months and an external inhibit for card readers, this system is both user-friendly and efficient. The LED indicators provide clear status updates for armed, disarmed, and low battery conditions. Designed to meet rigorous standards, the EA-25C is Grade 1 rated, ensuring durability and reliability. The satin chrome finish (US26D) not only enhances its aesthetic appeal but also adds to its longevity. Whether for panic devices or exit alarms, this Falcon Lock kit offers a comprehensive solution for securing exits without compromising safety.

KIT – Exit Alarm, CVR Concealed Vertical Rod Exit Device, Escutcheon x Dane Lever Trim 510L, 36in x 96in, Less Dogging, RHR Right Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

The (EA) feature provides a battery powered exit alarm to allow for a simple and effective means of monitoring the use of exits while still maintaining means of egress (for code requirements). When the touchbar is depressed the alarm will sound continuously, indicating that the exit has been engaged. The exit alarm can only be reset by way of a standard 1 1⁄4″ mortise cylinder with standard “A” cam (5⁄16″ wide x 3⁄4″ long). The design of the unit will allow the single 9V battery to last for at least six months (on standby mode).

Features:

• 110 dB alarm
• 24 Volt hardwire option
• 9V Battery input
• External inhibit for card reader
• LED indication
• Armed
• Disarmed
• Low battery
• EAK retrofit kit avialable for your existing devices

Specifications:

• Works with rim, mortise, concealed, surface vertical rod
• UL listed
• The EA feature can be used in conjunction with FSA/FSE (Fail safe/Fail secure trim) and security monitoring (DM, LM, RX) features.
• PS902: The series PS902 power supply is the recommended power supply for use with the exit alarm (EA) option. The series PS902 power supply is designed for electric locking or monitoring on single or double door applications.

Stock Sizes:

Device	Door Size	Door Strike	Min. Door Opening Width
EA-25-R	3′	299	2′ 9 1⁄4″
EA-25-R	3′	264	2’ 9 1⁄8″
EA-25-R	3′	1439	2’ 8 3⁄8″
EA-25-R	3′	1606	2’ 8 7⁄8″
EA-25-R	4′	299	3′ 3 1⁄4″
EA-25-R	4′	264	3’ 3 1⁄8″
EA-25-R	4′	1439	3’ 3 7⁄8″
EA-25-R	4′	1606	3’ 3 7⁄8″
EA-25-C	3′	All	2’ 8 7⁄8″
EA-25-C	4′	All	3’ 2 7⁄8″
EA-25-M	3′	All	2’ 9 1⁄4″
EA-25-M	4′	All	3’ 3 1⁄4″
EA-25-V	3′	All	2’ 8 7⁄8″
EA-25-V	4′	All	3’ 2 7⁄8″

Finishes:

• US3/605 – Brass, Bright
• US4/606 – Brass, Satin
• US10/612 – Bronze, Satin
• US11/643e – Bronze, Aged
• US15/619 – Nickel, Satin
• US19/622 – Black, Matte
• US26/625 – Chromium, Bright
• US26D/626 – Chromium, Satin
• US28/628 – Anodized, Aluminum
• US32/629 – Stainless Steel, Bright
• US32D/630 – Stainless Steel, Satin
• 313AN/710 – Anodized Duranodic

Attributes

Ship via: No UPS – Common Carrier Only

Access Type: Alarmed Exit

Alternate Codes: EA-25C-L-DAN-US26D-36X96-RHR, EA25CLDANUS26D36X96RHR

Category: Exit Alarms, Panic Devices & Exit Alarms

Certifications: A156.3, ANSI, UL 305

Device Width: 36″

Dogging: HD – Hex Dogging

Door Application: Panic Devices & Exit Alarms

Electrical Option: Exit Alarm

Exit Device Category: Concealed vertical rod

Finish Code: US26D

Finish Color: Brushed Chrome

Function: Dane Standard, Lever

Grade: Grade 1

Handing: Right Handed Reverse

Lever Design: Dane

Manufacturer: Falcon Lock

Rod Extension: 12″

Series: 25

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike

Trim Option: Lever Trim
