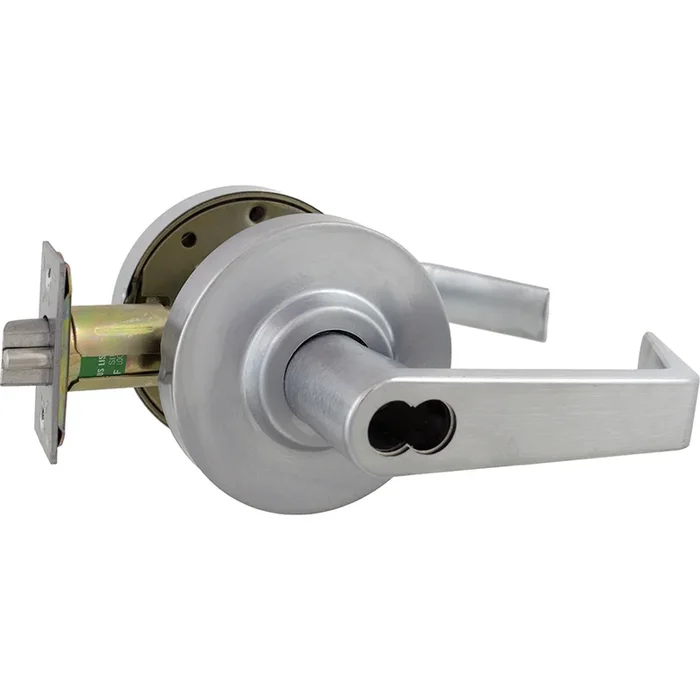

KIT – Entry Clutched Sierra Lever, SFIC Less Core, Grade 2 Satin Chrome

Description

Arrow Lock RLX81SR26D-IC-2 3/8 BS Sierra Lever Entry Kit, SFIC Less Core, 2-3/8in Backset, Grade 2, Satin Chrome

Arrow Lock Company RLX81SR26D-IC-2 3/8 BS KIT features an entry clutched Sierra lever that combines durability and style in a Grade 2 cylindrical lockset. Designed for commercial applications, this lockset boasts a freewheeling lever action, enhancing resistance to abuse and wear. The RLX Series is an ideal choice for upgrading or replacing locksets, ensuring both security and aesthetic appeal. This model accommodates door thicknesses of 1-3/8″ to 1-3/4″, making it versatile for a variety of installations. It includes a 2-3/4″ latch with a square corner face type, and its ANSI strike measures 1-1/4″ x 4-7/8″. The cylinder is prepared for a 6-pin solid brass configuration and comes with two nickel-plated brass keys.Notably, the RLX81SR26D-IC-2 is non-handed, allowing for easy installation regardless of door orientation. It is UL Listed and certified to BHMA A156.2, Series 4000, ensuring its reliability and performance. With a robust 10-year warranty, you can trust in the longevity of this lockset. Available in a sleek satin chrome finish, it complements a range of decor styles while providing secure access control for your commercial spaces.

KIT – Entry Clutched Sierra Lever, SFIC Less Core, 2-3/8in Backset, Grade 2, 626/US26D Satin Chrome

Notice: The info below is not item specific.

RLX Series is a robust Grade 2 lockset with a freewheeling lever operation for enhanced abuse resistance. The RLX is an Arrow Professional Replacement Product featuring removable through bolts and a variety of designs, finishes and functions. The RLX Series cylindrical locksets are a perfect solution for replacing or upgrading locksets in commercial applications.

Specifications:

• Certification:
  BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Freewheeling Lever Action:
  Standard.
• Door Thickness:
  Fits 1-3/8″ to 1-3/4″, factory set for 1-3/4″
• Strike:
  ANSI 1-1/4″ x 4-7/8″
• Latch:
  2-3/4″ backset, 1-1/8″ front
• Cylinder:
  Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Handing:
  Non-Handed.
• Case Quantity:
  6 per case.
• Average Case Weight:
  26 lbs.
• Warranty:
  10 Years.

Functions:

• RLX01-SR: Passage
• RLX08-SR: Single Dummy
• RLX72-SR: Privacy
• RLX81-SR: Entrance/Office
• RLX82-SR: Storeroom
• RLX87-SR: Classroom
• RLX08-SR: Rigid trim for one side of door only. Used as pull or to match active trim.

Parts:

• RLX-201A:
  Screw pack for chassis, rose, & thru-bolts.

Finishes:

• 03/605/US3 – Bright Brass
• 613E/US10BE – Dark Oxide Satin Bronze, Equivalent
• 26D/626/US26D – Satin Chromium Plated

Features

• Cylinder: Standard: 6-Pin, solid brass, 2 nickel-plated brass keys; IC prep available.
• Average Case Weight: 26 lbs.
• Freewheeling Lever Action: Standard.
• Door Thickness: Fits 1-3/8″ to 1-3/4″, factory set for 1-3/4″
• Latch: 2-3/4″ backset, 1-1/8″ front
• Warranty: 10 Years.
• Handing: Non-Handed.
• Certification: BHMA A156.2, Series 4000, Grade 2, UL Listed.
• Case Quantity: 6 per case.
• Strike: ANSI 1-1/4″ x 4-7/8″

Attributes

Alternate Codes: ARRRLX81SR26D-IC38, ARRRLX81SR-IC38, RL11SR26D, RL11SR26D-38, RL11SR26D38, RLX81SR26D, RLX81SR26D-IC-2 3/8 BS, RLX81SR26DIC238BS, RLX81SR26D-IC38, RLX81SR26DIC38

Backset: 2-3/8″

Category: Commercial Locks, Cylindrical Levers, Lock Sets

Certifications: A117.1, A156.2, A156.41, ADA, ANSI, BHMA, ICC, UL/cUL Listed 3 Hour

Cylinder Included: No

Cylinder Type: SFIC Cylinder

Door Application: Cylindrical Levers

Door Bore Prep: Cylindrical Lockset 2.125in Prep

Door Bore Size: 2-1/8″

Door Thickness: 1-3/8″-1-3/4″

Door Thickness Max: 1-3/4″

Door Thickness Min: 1-3/8″

Finish: Satin Chrome

Finish Code: 26D

Finish Color: Satin Chrome

Function: Entry

Grade: Grade 2

Handing: Non-Handed

Key Quantity: 2

Knob/ Lever Design: Sierra

Knob/ Lever Style: Lever

Latch Bolt Face Type: Square Corner

Latch Bolt Faceplate Size: 2-1/4″ x 1″

Latch Bolt Throw: 1/2″

Latch Bolt Type: Deadlatch

Latchbolt Type: 2-3/8″ Deadlatch

Lever Design: Sierra

Lock Category: Cylindrical Lock

Manufacturer: Arrow Lock Company

Rose/ Escutcheon: Rose

Rose/ Escutcheon Size: 3-11/32″

Rose/ Escutcheon Style: Rose

Series: RLX Series

Strike Size: 4-7/8″ x 1-1/4″

Strike Type: Default ANSI
