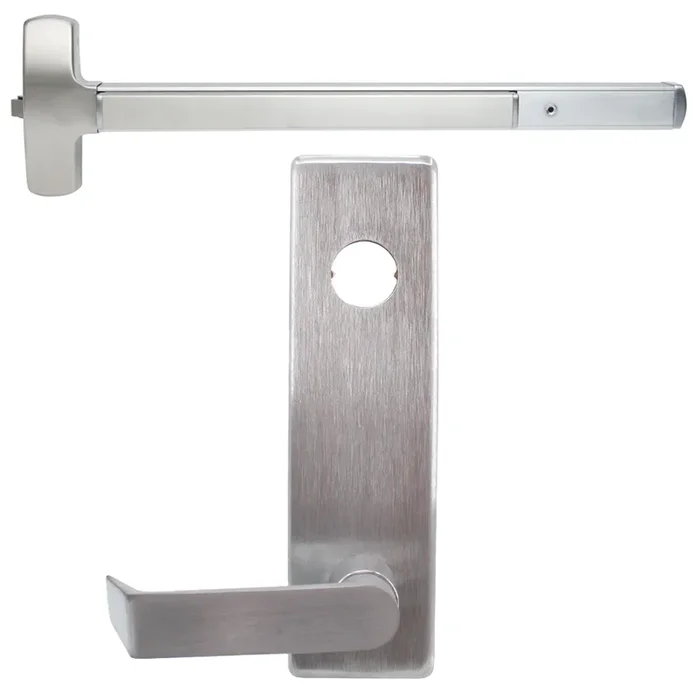

KIT – Electrified Trim, Rim Exit Device, Escutcheon x Dane Lever Trim 510L-FSE

Description

Falcon Lock 25R-L-FSE-DAN-US26D-48-LHR Electrified Rim Exit Device w/ Dane Lever Trim 510L-FSE, Satin Chrome, Grade 1

Falcon Lock 25R-L-FSE-DAN-US26D-48-LHR KIT offers a robust solution for high traffic areas, combining the functionality of an electrified trim with a rim exit device and the elegant Dane lever trim. Designed for both convenience and security, this exit device features a streamlined touch bar design that allows for seamless operation, making it ideal for busy commercial environments. Constructed from extruded aluminum, the 25-R Series ensures superior strength and impact resistance while maintaining a sleek appearance, with no exposed screws or rivets. Its stainless steel push pad cover is scratch-resistant, ensuring longevity. The device accommodates various trims thanks to its single trim input design, making it versatile for diverse applications. Designed for 1-3/4″ thick wood or metal doors, the Falcon Lock exit device is non-handed and features a 3/4″ throw stainless steel latchbolt. The half-turn hex dogging ensures reliability without wear-prone threaded parts. Mounting at a height of 40-1/4″ from the finished floor, it’s compatible with building security systems, enhancing safety through features like motorized electric latch retraction and security monitoring. With a Grade 1 certification and available in a sophisticated satin chrome finish, the Falcon Lock 25R-L-FSE-DAN is a trusted choice for professionals seeking durable and secure exit solutions.

KIT – Electrified Trim, Rim Exit Device, Escutcheon x Dane Lever Trim 510L-FSE, 48in, Hex Dogging, LHR Left Hand Reverse/Reversible, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

The 25-R Series rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This device can also be electrified for maximum ease of use and accessibility.

Features:

• Extruded aluminum construction delivers greater strength and impact resistance.
• No exposed screws or rivets on the back of the device for a streamlined design and clean lines for a more attractive installation.
• One trim input design provides maximum versatility and ability to use various trims.
• Stainless steel push pad cover provides a scratch-resistant pushing surface.
• Flush-end caps help prevent them from being destroyed or knocked off in abusive situations.
• Narrow stile center case is ideal for storefront applications with narrow stile aluminum doors.

Specifications:

• Hand: Non-handed.
• Strikes: 299 strike standard.
• Latchbolt: Stainless steel, 3⁄4″ throw.
• Deadlocking Latchbolt: Standard.
• Dogging Feature: Half turn hex dogging standard. No threaded parts to wear out.
• Cylinder Dogging: Specify “CD” prefix. Uses 1-1⁄8″ long mortise cylinder with standard cam.
• Doors: 1-3⁄4″ thick, wood or metal. Specify thickness if other than 1-3⁄4″.
• Projections: 2-3⁄4″ maximum, 2″ dogged.
• Mounting Height: 40-1⁄4″ from CL to finished floor.
• Electric Functions: Can be interfaced with building security systems. Motorized electric latch retraction (fail secure only), FSA/FSE trim, security monitoring, delayed egress and exit alarm available.
• Fasteners: All mounting screws are concealed, sheet metal screws and machine screws standard.
• Sex Bolts: Recommended when device is used with hollow core wood, composite or light gauge hollow metal doors. For EO device, specify 8 – 425 (#I0-24) SNB. For devices with trim, specify 2 – 425 (#IO-24) SNB.
• ANSI: Certified ANSI A156.3-2001 grade 1 standards.
• Center Case and Working Parts: Center case is heavy wrought and sintered metal parts.
• Shim kits: For glass lite applications; 1⁄4″ thick, specify SK25-RM.

Stock Sizes:

• Single Door Application

Device	Door Size	Door Strike	Door Stile (in)	Min. Door Opening Width
25-R	3’	299	4″	2′ 7 1⁄2″
25-R	3’	264	3 7⁄8″	2′ 7 3⁄8″
25-R	3’	1439	3 1⁄4″	2′ 6 3⁄4″
25-R	3’	1606	3 5⁄8″	2′ 7 1⁄8″
25-R	4′	299	4″	3′ 1 1⁄2″
25-R	4′	264	3 7⁄8″	3′ 1 3⁄8″
25-R	4′	1439	3 1⁄4″	3′ 3⁄4″
25-R	4′	1606	3 5⁄8″	3′ 1 1⁄8″

• Double Door Application

Device	Door Size	Strike x Mullion	Door Stile (in.)	Min. Door Opening Width
25-R	3’	299 x 2923	4 1⁄8″	2′ 7 1⁄2″
25-R	3’	299 x 4023	4 3⁄8″	2′ 7 1⁄2″
25-R	3’	264 x 2923	4″	2′ 7 3⁄8″
25-R	3’	264 x 4023	4 1⁄4″	2′ 7 3⁄8″
25-R	3’	1439 x 2923	3 7⁄8″	2′ 7 1⁄4″
25-R	3’	1439 x 4023	4 1⁄8″	2′ 7 1⁄4″
25-R	3’	1606 x 2923	4 1⁄4″	2′ 7 1⁄8″
25-R	3’	1606 x 4023	4 1⁄2 “	2′ 7 1⁄8″
25-R	4’	299 x 2923	4 1⁄8″	3′ 1 1⁄2″
25-R	4’	299 x 4023	4 3⁄8″	3′ 1 1⁄2″
25-R	4’	264 x 2923	4″	3′ 1 3⁄8″
25-R	4’	264 x 4023	4 1⁄4″	3′ 1 3⁄8″
25-R	4’	1439 x 2923	3 7⁄8″	3′ 1 1⁄4″
25-R	4’	1439 x 4023	4 1⁄8″	3′ 1 1⁄4″
25-R	4’	1606 x 2923	4 1⁄4″	3′ 1 1⁄8″
25-R	4’	1606 x 4023	4 1⁄2 “	3′ 1 1⁄8″
25-Vx 25-R	3’	1609	3 1⁄2″	2′ 7 5⁄8″ for 3 1⁄2″ Min stile
25-Vx 25-R	4’	1609	3 1⁄2″	3’ 1 5⁄8″ for 3 1⁄2″ Min stile

Finishes:

• US3/605 – Bright Brass
• US4/606 – Satin Brass
• US10/612 – Satin Bronze
• US11/643e – Aged Bronze
• US15/619 – Satin Nickel
• US19/622 – Matte Black
• US26/625- Bright Chrome
• US26D/626 – Satin Chrome
• US28/628 – Anodized Aluminum
• US32/629 – Bright Stainless Steel
• US32D/630 – Satin Stainless Steel
• 313AN/710 – Anodized Duranodic

Attributes

Alternate Codes: 25R-L-FSE-DAN-US26D-48-LHR, 25RLFSEDANUS26D48LHR

Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices

Certifications: A156.3, ANSI, UL 305

Device Width: 48″

Dogging: HD – Hex Dogging

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Rim device

Fail Safe/ Fail Secure: FSE- Fail Secure

Finish Code: US26D

Finish Color: Brushed Chrome

Function: Dane Standard, Lever

Grade: Grade 1

Handing: Left Handed Reverse

Lever Design: Dane

Manufacturer: Falcon Lock

Series: 25

Strike Type: Rim Strike, Standard

Trim Option: Lever Trim
