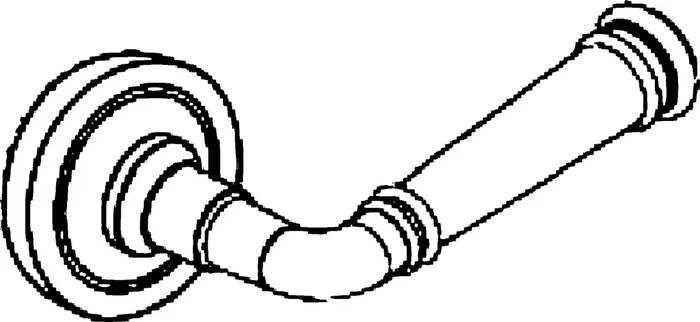

KIT – Apartment Mortise Lock with Stanhope Lever and Rose – Grade 1 Satin Nickel

Description

Marks Hardware 5RR44FD/15 KIT – Mortise Lock with Stanhope Lever, 2-3/4in Backset, Grade 1, Satin Nickel

Marks Hardware 5RR44FD/15 KIT is an exceptional apartment mortise lock designed to enhance security and durability for residential properties. Featuring the elegant Stanhope lever and rose, this lock boasts a 2-3/4 inch backset, a robust deadbolt, and an anti-friction latch, ensuring reliable performance in high-traffic environments. Built to meet ANSI Grade 1 specifications, the 5RR44FD/15 KIT is UL listed with a 3-hour fire rating, providing peace of mind during emergencies. Its stainless steel bolts and latches, along with independent lever support springs, contribute to its long-lasting functionality, making it an ideal choice for demanding applications. The lock’s sturdy stamped steel case, finished in a sleek satin nickel, not only enhances aesthetic appeal but also adds to its resilience. With a full 1-inch bolt throw and a 3/4-inch latch throw, this mortise lock ensures a secure closure. The adjustable bevel front measures 1-1/4 inches by 8 inches, accommodating various door configurations. Marks Hardware stands by the quality of their products, offering a lifetime mechanical warranty on this model. Elevate your property’s security with the reliable and stylish Marks Hardware 5RR44FD/15 KIT.

KIT – Apartment Mortise Lock with Stanhope Lever and Rose, 2-3/4in Backset, Deadbolt and Latch, Front 1-1/4 x 8in, Grade 1, 619/US15 Satin Nickel

Notice: The info below is not item specific.

Marks USA has been making mortise locks for over 30 years. From their introduction, our mortise locks have enjoyed a reputation for long life and their ability to excel in high traffic, high abuse areas. Marks USA mortise locks are engineered to provide years of maintenance-free performance. Our Nova series mortise locks exceed 6 million cycles of continuous use.

Features:

• Meets ANSI grade 1 specification: ANSI-A156.13
• Underwriters laboratories 3-hour fire rating
• BHMA Certified
• Lifetime mechanical warranty
• Available in 2-1/2″ and 2-3/4″ backset
• Stainless steel bolts, latches, independent lever support springs (on lever sets)

Specifications:

• Backset: 5 Series 2-3/4″; 55 series 2-1/2″
• Bolt throw: Stainless steel full 1″ throw
• Latch throw: 3/4″ (anti-friction)
• Auxiliary latch: 1/2″ throw
• Case: Stamped steel 090 thick, zinc dichromate finish
• Front: 1-1/4″ x 8″, adjustable bevel
• Hubs: Steel, 9/32″ on diamond 5/16″ on square w/security separator

Keyed Single Cylinder, No Deadbolt Functions:

• D: Office/vestibule
• DW: Vestibule
• E/Q/QH/K: Office, ANSI F04
• EW: Storeroom, ANSI F07
• J: Classroom, ANSI F05
• JM/JR: Hospital (holdback), ANSI F06
• GL: Inst. privacy, ANSI F26
• MT: ArchiTech
• EL: Electrically locked
• EU: Electrically unlocked

Keyed Single Cylinder, with Deadbolt Functions:

• A: Entrance, ANSI F08, F10
• B: Entrance, ANSI F21
• F: Dormitory, ANSI F12
• FS: Dormitory
• FW: Dormitory, ANSI F13
• FD: Apartment, ANSI F20
• H: Hotel, ANSI F15
• LH: Spec. privacy

Keyed Double Cylinder, No Deadbolt Functions:

• G: Entrance, ANSI F09
• GC: Intruder latchbolt, ANSI F32
• GG: Classroom security
• GR: Classroom security w/holdback
• WW: Institution, ANSI F30

Keyed Double Cylinder, with Deadbolt Functions:

• AC: Entrance, ANSI F35
• C: Storeroom, ANSI F14
• FC: Intruder deadbolt, ANSI F34
• FA: Dormitory, ANSI F11
• FX: Dormitory, ANSI F33

Keyless Functions:

• N: Passage
• L: Bathroom, ANSI F02
• LF/LJ: Privacy, ANSI F19
• EX: Exit, ANSI F31

Finishes:

• 3 – Bright brass
• 32D – Stainless steel
• 10B – Dark bronze
• 26D – Satin chrome

Attributes

Alternate Codes: 5RR44FD/15, 5RR44FD15

Backset: 2-1/2″-2-3/4″

Bolt Throw: 1″

Category: Lock Sets, Mortise Locks, Mortise Lock Sets

Certifications: A156.13, ANSI, UL Listed 3 Hour

Cylinder Type: Marks Conventional

Door Application: Mortise Locks

Finish Code: 619

Finish Color: Satin Nickel

Fire Rated: Yes

Fire Rating: 180 min

Function: Apartment, Keyed Single Cylinder, With Deadbolt

Grade: Grade 1

Keyway: Marks C

Lever Design: Stanhope

Manufacturer: Marks USA

Material: Steel, Zinc Plated

Rose/ Escutcheon: 2-9/16″ Round Ring Rose

Series: Series 5

Throw: 1/2″
