Corbin Russwin ML2067 LWA 626 LC V20 V01 Lustra Mortise Lock w/Deadbolt Indicators, Satin Chrome, Less Cylinder
Corbin Russwin ML2067 LWA 626 LC V20 V01 KIT is a top-tier apartment mortise lock designed for both security and convenience. Constructed from heavy-gauge steel, this ANSI/BHMA Grade 1 mortise lock is built to withstand the demands of high-traffic environments. The Lustra lever paired with an A Rose trim not only enhances the aesthetic appeal but also ensures a secure grip and smooth operation. This lock features dual indicators, with a V20 outside indicator signaling vacant/occupied status in vibrant green and red, while the V01 inside indicator clearly displays locked/unlocked status. The lock’s direct drive performance delivers consistent torque, and the lever return is designed to prevent sag, ensuring reliability over time.The ML2000 Series is versatile, offering a range of functions and trim options, and is compatible with existing Corbin Russwin key systems. Field reversible for easy installation, it accommodates door thicknesses from 1 3/8″ to 4″ and has a maximum backset of 2 3/4″.In addition to its robust construction, the lock incorporates EcoFlex®️ technology for energy efficiency, making it a sustainable choice. Backed by a 10-year limited warranty, the Corbin Russwin ML2067 is a dependable solution for enhancing security and functionality in any apartment setting.

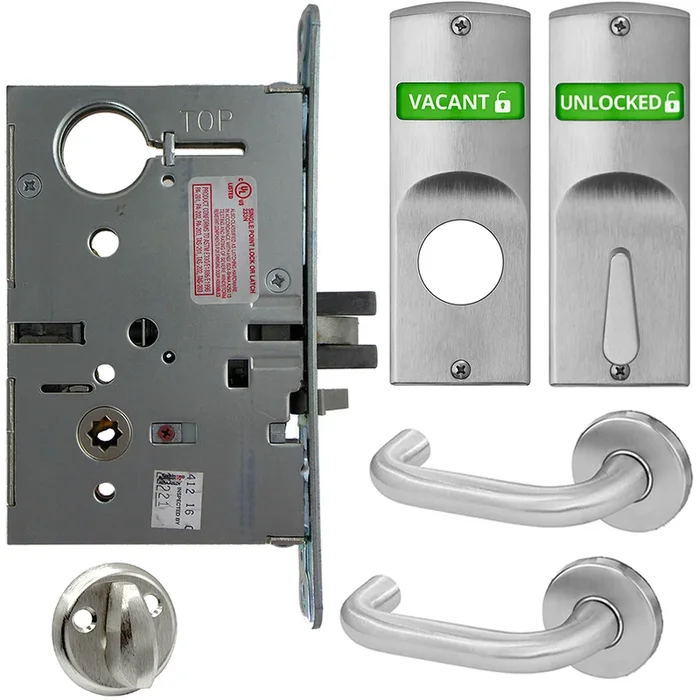

KIT – Apartment Mortise Lock w/DeadboltToggle, Lustra Lever with A Rose Trim, Less 1-1/8 Mortise Cylinder, V20 Outside Indicator (Vacant/Occupied, Green/Red), V01 Inside Indicator (Locked/Unlocked, Green/Red), ANSI Strike SS118, 626/US26D Satin Chrome
Notice: The info below is not item specific.
The ML2000 Series is an ANSI/BHMA Grade 1 mortise lock designed to meet the rigors of high-traffic, abusive environments. Constructed of heavy-gauge steel with unique, patented features and a full range of functions including status indicators and trim, the versatility and reliability of this lock complement any application. Corbin Russwin’s status indicator options offer a unique and highly visible window design and provides clarity on the locked/unlocked status of a door. Available for use with a wide range of trim options and with a variety of functions, the mortise lock status indicators are versatile for any application.
Features:
- Direct drive performance for consistent torque and force during lever rotation
- Lever return is crisp and firm – eliminating lever sag
- Available in 63 mechanical and electrified functions, including 2 vandal resistant and 4 behavioral health options, 61 standard and Muséo Line decorative lever designs and 16 finishes
- Integrates with new or existing Corbin Russwin key systems, including patented/high security Access 3® and Pyramid
- Integrates with access control platforms
- Utilizes EcoFlex®️ technology on all electromechanical functions, creating up to 89% energy savings
- Occupancy indicators available
- Ten-year warranty
Benefits:
- Innovative Design: Optimized torsion spring design and fewer moving parts give the lock extremely smooth and consistent operations
- Flexible: Field reversible latchbolt makes it easy to re-hand without disassembling the lock case
- Safe and Secure: Withstands intrusion attempts and abuse, featuring specialized security trim and components
- Lower Total Cost of Ownership: Far exceeds ANSI/BHMA Grade 1 requirements ensuring durability and longevity
- Sustainable: Environmental product declaration (EPD) in accordance with ISO14025
Specifications:
- ANSI/BHMA Code: A156.13
- Backset Depth (Standard): 2 3/4″
- Cylinder Format: Conventional, Large Format, Small Format
- Cylinder Pins: 6 pin, 7 pin
- Door Thickness (Standard): 1 3/4″
- Door Type: Bullet-Resistant Doors, Wood, Hollow Metal
- Handing: Field Reversible
- Latchbolt Throw: 3/4″
- Maximum Backset: 2 3/4″
- Maximum Door Thickness: 4″
- Minimum Backset: 2 3/8″
- Minimum Door Thickness: 1 3/8″
- Number of Keys: 2
- Strike Type (Standard): ANSI Straight Lip
- UL Listed: Yes
- Warranty: 10-year limited warranty
Finishes:
- 605 – Bright Brass
- 606 – Satin Brass
- 611 – Bright Bronze
- 612 – Satin Bronze
- 613 – Dark Oxidized Satin Bronze, Oil Rubbed
- 613E – Dark Oxidized Satin Bronze, Equivalent
- 613L – Dark oxidized satin bronze, clear coated
- 618 – Bright Nickel Plated
- 619 – Satin Nickel Plated
- 619C – Satin nickel plated with MicroShield
- 625 – Bright Chromium Plated
- 626 – Satin Chromium Plated
- 626C – Satin Chromium Plated with MicroShield
- 629 – Bright Stainless Steel
- 630 – Satin Stainless Steel
- 630C – Satin stainless steel with MicroShield
- 722 – Black Oxidized Bronze, Oil Rubbed
- BSP – Black suede powder coated/sprayed
- WSP – White suede powder coated/sprayed
Attributes
Alternate Codes: ML2067 LWA 626 LC V20 V01, ML2067LWA626LCV20V01
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Cylinder Type: Less Cylinder
Door Application: Mortise Locks
Door Indicators: Double Visual Indicator, Exterior Indicator – Green/Red, Exterior Indicator – Vacant/Occupied, Interior Indicator – Green/Red, Interior Indicator – Locked/Unlocked
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Function: Apartment
Lever Design: Lustra
Material: Wrought
Rose/ Escutcheon: A Rose
Series: ML2000
