KIT – Alarmed CVR Smooth Exit Device with 996L-06 Lever Trim by Von Duprin

Description

Von Duprin 9847L-626-36-LHR 06 ALK Alarmed CVR Smooth Exit Device with 996L-06 Lever Trim, Satin Chrome

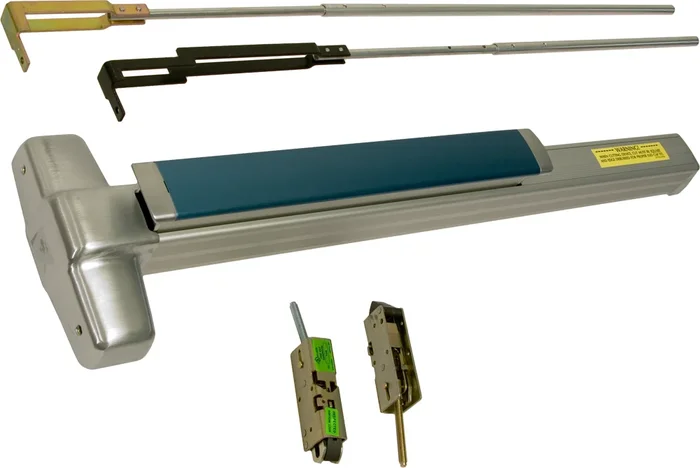

Von Duprin 9847L-626-36-LHR 06 ALK KIT is an advanced alarmed exit device designed for optimal security and functionality. This concealed vertical rod device is ideal for both single and double metal doors and is UL listed for panic exit hardware, ensuring compliance with safety standards. The device features a smooth mechanism case and is equipped with a 996L-06 lever trim, offering left-hand reverse/reversible handing. With a height of 36 inches and a grade 1 rating, the 9847L provides robust performance and durability. The deadlocking top and bottom bolts ensure secure closure with a 5/8-inch throw, while the adjustable vertical rods allow for customization based on door height, accommodating from 6’8″ to 8’4″. The device’s centerline can be adjusted from 35 5/8 inches to 49 5/8 inches from the finished floor, ensuring versatility in installation. This exit device also includes an alarm exit kit (ALK) for additional security, making it an excellent choice for high-traffic areas. Finished in satin chrome (626/US26D), it not only provides a sleek appearance but also enhances your building’s safety. Whether for commercial or institutional use, the Von Duprin 9847L is an essential component for any secure environment.

KIT – Alarmed (Requires 1-1/4in Mortise Cylinder) CVR (Concealed Vertical Rod) Smooth Exit Device, 996L-06 Lever Trim, LHR Left Hand Reverse/Reversible Handing (Snap Ring Tool Required), 36in x 84in, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 grade 1. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case. The concealed vertical rod device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch).

Specifications:

• Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
• Device Lengths:
• 2″ – 2″ (610 mm) Door size (shipped less UL label)
• 3″ – 2″4″ to 3″ (711mm to 914 mm) Door size
• 4″ – 2″10″ to 4″ (864 mm to 1219 mm) Door size
• Device Centerline from Finished Floor: 39 5/8″ (1006 mm) Standard adjustable from 35 5/8″ (905mm) to 49 5/8″ (1260mm)
• Center Case: 8″ x 2-3/4″ x 2-3/8″ (203mm x 70mm x 60mm)
• Mechanism Case: 2-1/4″ x 2-1/4″ (57mm x 57mm)
• Projection:
• Push bar neutral – 3-13/16″ (97 mm)
• Push bar depressed – 3-1/16″ (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5/8″ (16mm) throw
• Door undercut: 1/4″ (7mm) recommended
• Top and Bottom Latch Case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
• Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6’8″ (2027mm) to 8’4″(2533mm). Bottom rod adjustable 35 5/8″ (905 mm) to 49 5/8″ (1260 mm). Extension rod kits available for doors over 8’4″ (2533mm).
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal doors. Optional 425 SNB available.
• Electrical Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• RX2: Double request to exit
• E: Electric locking and unlocking trim
• EL: Electric latch retraction
• ESL: Emergency secure lockdown
• QEL: Quiet electric latch retraction
• SS: Signal switch
• CX: Chexit delayed exit
• ALK: Alarm exit kit
• WP-RX: Waterproof request to exit
• CON: Allegion Connect
• Mechanical Options:
• -2: Double cylinder
• -2SI: Double cylinder with security indicator
• GBK: Glass bead kit
• LBR: Less bottom rod
• PL: Pullman latch
• PN: Pneumatic latch retraction
• SNB: Sex bolts
• SEC: Security screws
• WH: Weep holes
• Dogging feature: Hex key dogging standard
• Dogging options:
• CD: Cylinder dogging
• CD-CX: Chexit cylinder dogging
• CDSI: Cylinder dogging with security indicator
• HDSI: Hex dogging with security indicator
• SD: Special center case dogging
• LD: Less dogging
• DI: Dogging indicator
• CI: Cylinder dogging indicator
• Strikes:
• Top – 338 – Unfinished
• Bottom – 385A – Unfinished

Standard Trim:

• EO: No outside trim. Exit only
• DT: Dummy trim. Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• NLOP: Night latch. Key retracts latchbolt, pull required
• TP: Thumbpiece
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• TPBE: Thumbpiece, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• K/L: Knob/Lever
• Key locks and unlocks
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• KDT/LDT: Knob/lever dummy trim. Pull when dogged
• KNL/LNL: Knob/lever, night latch
• Key retracts latchbolt
• Rim and 1-1/4″ mortise cylinder
• Handed, reversible lever
• KBE/LBE: Knob/lever, blank escutcheon. Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks (use with DT trim)
• 1-1/4″ mortise cylinder
• TLBE: Turn lever, blank escutcheon. Blank escutcheon always operable (no cylinder, use with DT trim)
• TLOP: Turn lever, optional pull
• HL: Hospital latch
• Key locks and unlocks
• 1-1/4″ mortise cylinder

Finishes:

• 605 – Bright Brass
• 606 – Satin Brass
• 612 – Satin Bronze
• 613 – Satin Bronze-Oil Rubbed
• 625 – Bright Chrome
• 626 – Satin Chrome
• 626-AM – Satin chrome, Antimicrobial coating
• 643e – Aged Bronze
• 693 – Painted Black
• 721 – Bright Brass
• 728 – Satin Brass

Features

• Top – 338 – Unfinished
• GBK: Glass bead kit
• -2SI: Double cylinder with security indicator
• DI: Dogging indicator
• -2: Double cylinder
• PN: Pneumatic latch retraction
• Latch bolt: Deadlocking top & bottom bolt, 5/8″ (16mm) throw
• CD-CX: Chexit cylinder dogging
• Center Case: 8″ x 2-3/4″ x 2-3/8″ (203mm x 70mm x 60mm)
• WP-RX: Waterproof request to exit
• E: Electric locking and unlocking trim
• SS: Signal switch
• CI: Cylinder dogging indicator
• Fasteners & Sex Bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal doors. Optional 425 SNB available.
• ESL: Emergency secure lockdown
• Device Functions: Device ships EO/DT/NL; Field selectable; For TP, K or L remove NL drive screw from device.
• Push bar depressed – 3-1/16″ (78 mm)
• LX: Latch bolt monitor switch
• 2″ – 2″ (610 mm) Door size (shipped less UL label)
• Electrical Options:
• Strikes:
• Bottom – 385A – Unfinished
• SEC: Security screws
• 3″ – 2″4″ to 3″ (711mm to 914 mm) Door size
• Door undercut: 1/4″ (7mm) recommended
• Projection:
• RX: Request to exit
• LD: Less dogging
• 4″ – 2″10″ to 4″ (864 mm to 1219 mm) Door size
• ALK: Alarm exit kit
• Push bar neutral – 3-13/16″ (97 mm)
• EL: Electric latch retraction
• SNB: Sex bolts
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• Mechanism Case: 2-1/4″ x 2-1/4″ (57mm x 57mm)
• PL: Pullman latch
• Device Lengths:
• CDSI: Cylinder dogging with security indicator
• CX: Chexit delayed exit
• Device Centerline from Finished Floor: 39 5/8″ (1006 mm) Standard adjustable from 35 5/8″ (905mm) to 49 5/8″ (1260mm)
• Top and Bottom Latch Case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
• HDSI: Hex dogging with security indicator
• SD: Special center case dogging
• Vertical Rods: Round 2-piece adjustable rods – Top rod adjustable from 6’8″ (2027mm) to 8’4″(2533mm). Bottom rod adjustable 35 5/8″ (905 mm) to 49 5/8″ (1260 mm). Extension rod kits available for doors over 8’4″ (2533mm).
• Dogging feature: Hex key dogging standard
• Dogging options:
• LBR: Less bottom rod
• CD: Cylinder dogging
• RX2: Double request to exit
• WH: Weep holes

Attributes

Access Type: Alarmed Exit, Request to Exit

Category: Electrified Panic Devices, Panic Devices & Exit Alarms

Certifications: A156.3, ANSI, ANSI/UL 305, BHMA

Device Width: 36″

Door And Lock Sensor: Pushbar Monitor

Door Application: Panic Devices & Exit Alarms

Exit Device Category: Concealed Vertical Rod Exit CVR

Finish Code: 626

Finish Color: Satin Chrome

Function: Classroom, Lever

Grade: Grade 1

Handing: Left Handed Reverse

Lever Design: 6

Manufacturer: Von Duprin

Series: 98/99

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Strike Type: Vertical Rod Bottom Strike, Vertical Rod Top Strike
