KIT – 78 Series Wide Stile Rim Exit Device by Von Duprin

Description

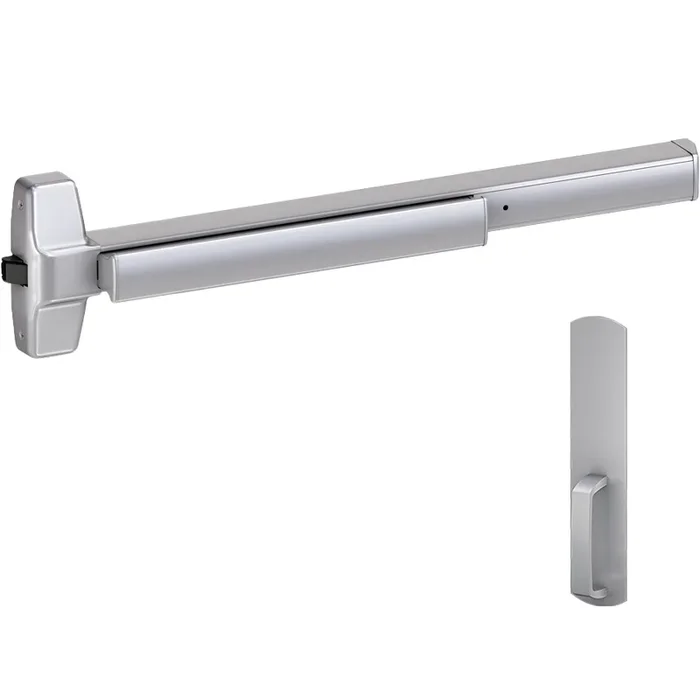

Von Duprin 78DT-626-36 KIT 78 Series Wide Stile Rim Exit Device, 785DT Dummy Pull Trim, Satin Chrome

Von Duprin 78DT-626-36 KIT is a highly reliable exit device designed for wide stile applications in various environments, including commercial real estate, retail, and industrial spaces. This Grade 1 certified unit features a satin chrome finish (626/US26D) that ensures durability and a modern aesthetic. The kit includes a 78 Series Wide Stile Rim Exit Device and a 785DT Dummy Pull Trim, making it an ideal choice for those seeking a combination of security and functionality. This exit device is engineered for versatility; it fits door sizes from 2′ 6″ to 4′, making it suitable for both single and double door installations. The hex key dogging feature allows for easy operation, while the deadlocking latch bolt with a 5/8″ throw enhances security. The device is field adjustable, enabling quick setup to meet various operational needs. Additionally, the Von Duprin 78DT-626-36 KIT supports a range of electrified options such as latch bolt monitoring and request-to-exit features, further enhancing its functionality. With its comprehensive screw pack included, installation is straightforward for both metal and wood doors. Choose this exit device for assured performance and peace of mind in any building setting.

KIT – 78 Series Wide Stile Rim Exit Device, 785DT Dummy Pull Trim, 36in, Hex Dogging, Grade 1, 626/US26D Satin Chrome

Notice: The info below is not item specific.

Enjoy the quality and trust you expect from Von Duprin at a mid-price option. Von Duprin 78 exit device is a wide stile device that provides reliable performance and peace of mind for applications like warehouse, industrial, office, multifamily, retail, and commercial real estate spaces. It’s available in a wide range of device types, lever designs, options, and finishes. Von Duprin’s 70 Series also can be configured with the quiet electric latch retraction (QEL) option, which provides electronic control of an exit device where limited operational noise is desired.

Features:

• ANSI/BHMA Grade 1 certified and backed by Allegion services and support
• Available in a wide range of device types, options, lever designs, and finishes
• Available in 3′ and 4′ lengths that are field sizeable for single and double door applications

Specifications:

• Device Functions: Device ships EO/DT/NL; field selectable
• Device lengths:
• 3′: 2′ 6″ to 3′ (762mm to 914mm) door size
• 4′: 3′ to 4′ (914mm to 1219mm) door size
• Device centerline from finished floor:
• 39-13/16″ (1011mm)
• 39-11/16″ (1008mm) with mullion
• Center Case: 7-7/8″ x 2-3/4″ x 2-3/8″ (200mm x 70mm x 60mm)
• Mechanism Case: 2-5/16″ x 2-1/8″ (59mm x 54mm)
• Projection:
• Pushbar neutral – 3-13/16″ (97mm)
• Pushbar depressed – 3-1/16″ (78mm)
• Latch bolt: Deadlocking, 5/8″ (15.875mm) throw
• Pushbar length:
• 3′: 18″ (457mm)
• 4′: 24″ (610mm)
• Fasteners and sex bolts (SNB): Includes screw pack for 1-3/4″ (4mm) and 2-1/4″ (57mm) thick metal or wood doors (Optional 425 SNB available)
• Electrified Options:
• LX: Latch bolt monitor switch
• RX: Request to exit
• E: Electric locking and unlocking trim; no cylinder override
• ALK: Alarm exit kit
• CON: Allegion Connect
• QEL: Quiet electric latch retraction
• Mechanical Options:
• AX: Accessible device
• GBK: Glass bead kit
• SNB: Sex bolts
• SEC: Security screws
• Dogging Feature: Hex key dogging standard
• Dogging Options:
• CD: Cylinder dogging
• LD: Less dogging
• QEL: QEL options available
• Strikes: 299 – Dull black

Trim Functions:

• EO: Exit only.
• No outside Trim
• DT: Dummy trim
• Pull when dogged (not recommended for fire device)
• NL: Night latch
• Key retracts latch bolt
• Rim cylinder
• NLOP: Night latch
• Key retracts latch bolt, optional pull required
• Rim cylinder
• L: Lever
• Key locks and unlocks
• 1-1/4″ mortise cylinder
• Handed, reversible lever
• Electrified lever operation available
• LDT: Lever, dummy trim
• Pull when dogged (not recommended for fire device)
• LNL: Lever, night latch
• Key retracts latch bolt
• 1-1/4″ mortise cylinder
• Handed, reversible lever
• LBE: Lever, blank escutcheon
• Always operable (no cylinder)
• TL: Turn lever
• Key locks and unlocks; or key unlocks, then relocks when key is removed (use with DT trim)
• 1-1/4″ mortise cylinder
• TLBE: Turn lever – blank escutcheon
• Blank escutcheon always operable (no cylinder, use with DT trim)

Finishes:

• 605 – Bright brass
• 606 – Satin brass
• 612 – Satin bronze
• 619 – Satin nickel
• 625 – Bright chrome
• 626 – Satin chrome
• 628 – Anodized aluminum
• 630 – Satin stainless steel
• 643e – Aged bronze
• 710 – Duranodic dark bronze

Attributes

Alternate Codes: 78DT-626-36, 78DT62636

Category: Panic Devices, Panic Devices & Exit Alarms, Rim Panic Devices

Center Line: 3′ 3-13/16″

Certifications: A156.3, ANSI, BHMA, UL 305

Device Width: 36″

Door Application: Panic Devices & Exit Alarms

Door Frame Type: Hollow Metal Frame

Door Thickness: 1-3/4″

Door Type: Hollow Metal

Exit Device Category: Rim Exit

Finish Code: 622, 626, 630

Finish Color: Black, Brushed Chrome, Flat Black, Flat Black Coated, Matte Black, Satin Chrome, Satin Stainless Steel

Function: Dummy Trim

Grade: Grade 1

Handing: Field Reversible

Manufacturer: Von Duprin

Series: 78

Stile Width: Wide Stile

Strike Type: Rim Strike
