Description

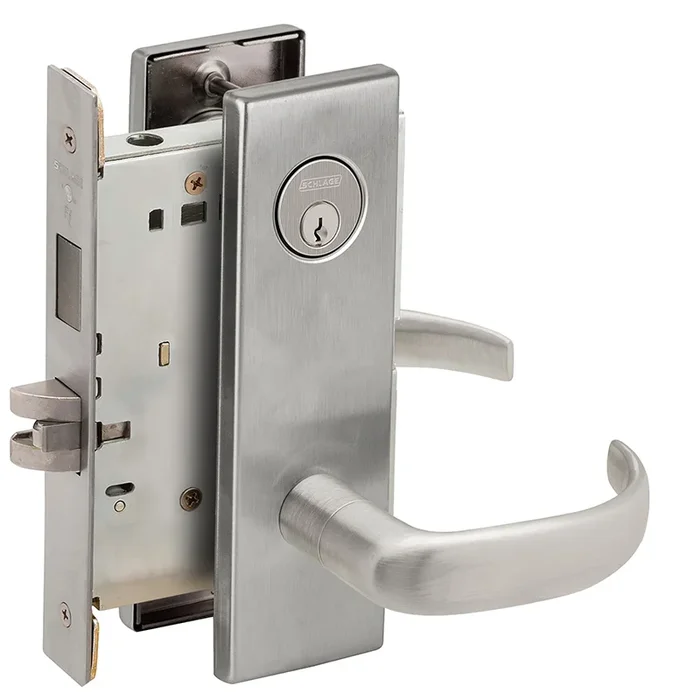

Schlage L9456P 17N 626 Lock Mortise Lock
Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
- Corridor – Latchbolt Retracted From Either Side, Deadbolt Thrown by Key or Thumbturn, Throwing Deadbolt Locks Outside Lever, Turning Inside Lever Retracts Deadbolt and Latchbolt and Unlocks Outside Lever, Inside Lever is Always Free for Immediate Egress,
- ANSI/BHMI Certified A156.13-2012
- Commercial Grade 1
- Lock Body Mortises Inside the Edge of the Door
- UL Listed for 3 Hour Fide Door
- Tested and certified to ANSI/BHMA grade 1 operational and security standards
- UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
- Deadbolt features include anti-saw pin in bolt to prevent cut-through
- Security blocking hub prevents lock access by removing levers
- Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
- Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
- Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
- Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
- Two piece anti-friction tongue in latch bolt reduces wear
- Breakaway spindle keeps door secured in the event of vandalism
- Field reversible latch bolt allows handing change without opening case
- Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
Attributes
Alternate Codes: L9456P17N626
Ansi Function: F13 – Dormitory
Baa Qualified: Yes
Backset: 2-3/4″
Bolt Protection: 3/4″ Latch, 1″ Deadbolt
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Country of Origin: Mexico
Cylinder Type: Conventional Cylinder
Design: 17 Lever and N Escutcheon
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: 626/US26D
Finish Code: 626
Finish Color: Brushed Chrome, Satin Chrome
Finish : Satin Chrome
Fire Rated: 3 Hours {A}
Function: 9456-Corridor Lock
Grade: Grade 1
Hand: Field Reversible
Keying: Keyed Different
Keys: Cut
Keyway: S123
Lever Design: 17
Lever Knob Design: 17 – Lever
Limited Warranty: 3 Years
Lock Category: Mortise Lockset – Latch and Deadbolt
Lock Face Size: 8″ x 1-1/4″
Num Of Keys: 2
Num Pins: 6
Rose Escutcheon Design: N – Escutcheon
Rose/ Escutcheon: N Escutcheon
Screws: Combination
Series: L Series
Strike: 10-072 Strike
Strike Height: 4-7/8″
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
