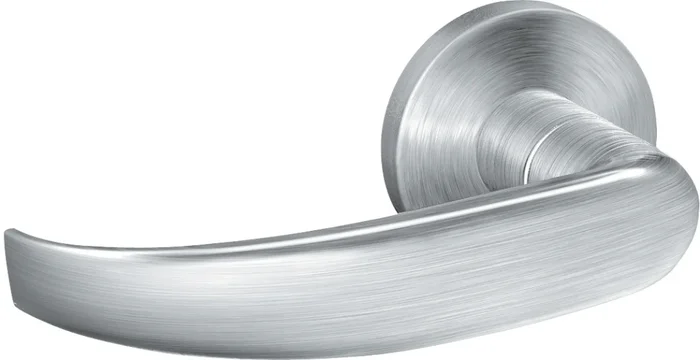

KIT – 17A Storeroom Mortise Lock with Deadbolt, Satin Chrome

Description

Schlage L9480P17A626 Lock Mortise Lock

Latchbolt retracted by knob/lever from either side unless outside is locked by key from either side. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.

• Handing:
• L9000 Series lock bodies are field-reversible without disassembly. L400 Series locks are non-handed.
• Door thickness: 1-3/4″ (44 mm) standard. 1-3/8″ (35 mm) to 2-1/2″ (64 mm) optional. Over 2-1/2″ (64 mm) door ranges vary by function. No escutcheon available for 1-3/4″ (44 mm) doors standard. 2″ to 2-3/8″ (51 mm to 60 mm) optional. Specify door thickness if other than 1-3/4″.
• Backset: 2-3/4″ (70 mm) only.
• Armored front:
• L9000 Series: 1-1/4″ x 8″ x 7/32″ (32 mm x 203 mm x 6 mm) standard. 1-1/16″ x 8″ x 1-7/32″ (27 mm x 203 mm x 6 mm) optional.
• L400 Series: 4-7/16″ x 3-5/8″ x 1″ (113 mm x 92 mm x 25 mm)
• Case size:
• L9000 Series: 4-7/16″ x 6-1/16″ x 1″ (113 mm x 154 mm x 25 mm)
• Spacing: Knob or lever to cylinder, 3-7/8″ (98mm); knob or lever to thumbturn hub, 2-11/16″ (68mm).
• Bolts: 1″ (25mm) throw stainless steel deadbolt and 3/4″ (19mm) throw stainless steel latch with anti-friction tongue.
• Exposed trim:
• Knobs: #41 and #42 heavy-duty wrought brass, bronze or stainless steel knobs match D Series knobs.
• Levers: Forged brass or bronze and cast stainless steel. Designs available to match D Series levers. 93 Lever design: Extruded brass, bronze or stainless steel. Mediterranean designs: Forged-brass lever and rose.
• Escutcheons: L escutcheons are cold-forged brass or bronze and stainless steel. N escutcheons are heavy wrought reinforced brass, bronze and stainless steel.
• Trim combinations: Available with knob both sides, lever both sides, or knob and lever with rose or escutcheon both sides.
• Strike: L9000 Series: ANSI curved lip strike 1-1/4″ x 4-7/8″ (32 mm x 124 mm) x 13/16″ (30 mm) lip to center with dust box standard. L400 Series: 1-1/8″ x 3-5/8″ (29 mm x 92 mm) with dust box.
• Cylinder & keys: 6-pin Everest C123 keyway cylinder with two patented keys standard.
• Storeroom Lock with Deadbolt, Latchbolt Retracted By Key or Lever, Outside Always Fixed, Deadbolt Thrown By Key or Thumbturn, Turning Inside Lever Retracts Both Dead and Latchbolt, Auxiliary Latch Deadlocks Latchbolt When Locked, Inside Lever Always Free
• ANSI/BHMI Certified A156.13-2012
• Commercial Grade 1
• Lock Body Mortises Inside the Edge of the Door
• UL Listed for 3 Hour Fide Door
• Tested and certified to ANSI/BHMA grade 1 operational and security standards
• UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
• Deadbolt features include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock access by removing levers
• Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
• Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
• Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Two piece anti-friction tongue in latch bolt reduces wear
• Breakaway spindle keeps door secured in the event of vandalism
• Field reversible latch bolt allows handing change without opening case
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Attributes

Manufacturer surcharge: 4.5%

Alternate Codes: L9480P17A626

Baa Qualified: Yes

Backset: 2-3/4″

Base Material: Brass or Bronze

Bolt Projection: 3/4″ Latch, 1″ Deadbolt

Bolt Protection: 3/4″ Latch, 1″ Deadbolt

Category: Lock Sets, Mortise Locks, Mortise Lock Sets

Commercial Residential: Commercial

Country of Origin: Mexico

Country of origin: Mexico

Cylinder Included: Yes

Cylinder Type: 6-Pin Cylinder

Design: 17 Lever and A Rose

Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets

Door Bore Size: 2-1/8″

Door Thickness: 1-3/4″

Door Thickness Min: 1-3/4″

Dust Box: Plastic

Finish: 626/US26D

Finish Code: 626

Finish Color: Satin Chrome

Finish : Satin Chrome

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 9480-Storeroom Lock w Deadbolt

Grade: Grade 1

Hand: Field Reversible

Handing: Field Reversible

Installation: Commercial

Keying: Keyed Different

Keys: Cut

Keyway: S123

Knob/ Lever Design: 17

Knob/ Lever Style: Lever

Latch Bolt Face Type: Square Corner

Latch Bolt Faceplate Size: 8″ x 1-1/4″

Latch Bolt Type: Deadbolt, Deadlatch

Lever Design: 17

Lever Knob Design: 17 – Lever

Leverknob Design: 17 Lever

Limited Warranty: 3 Years

Lock Category: Mortise Lock

Lock Face Size: 8″ x 1-1/4″

Num Of Keys: 2

Num Pins: 6

Of Keys: 2

Origin: Mexico

Pack Height: 5.63″

Pack Height 2: 5.63″

Pack Length: 10.38″

Pack Length 2: 10.38″

Pack Qty: 1

Pack Volume: 313.68 in³

Pack Volume 2: 313.68 in³

Pack Width: 5.38″

Pack Width 2: 5.38″

Pins: 6

Restricted Keyway: No

Rose Escutcheon Design: A – Rose

Rose/ Escutcheon: A Rose

Rose/ Escutcheon Size: 2-1/8″

Rose/ Escutcheon Style: Rose

Roseescutcheon Design: A Rose

Screws: Combination

Series: L Series

Ship Weight: 6.3 lbs.

Std Keyway: S123

Std Strike Height: 4-7/8″

Std Strike Number: 10-072

Std Strike Type: ASA

Std Strike Width: 1-1/4″

Strike: 10-072 Strike

Strike Height: 4-7/8″

Strike Number: 10-072

Strike Size: 4-7/8″ x 1-1/4″

Strike Type: ASA

Strike Width: 1-1/4″

Subtype: Mortise Lock

Supplier: Schlage

Type: LOCK SETS

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 6
