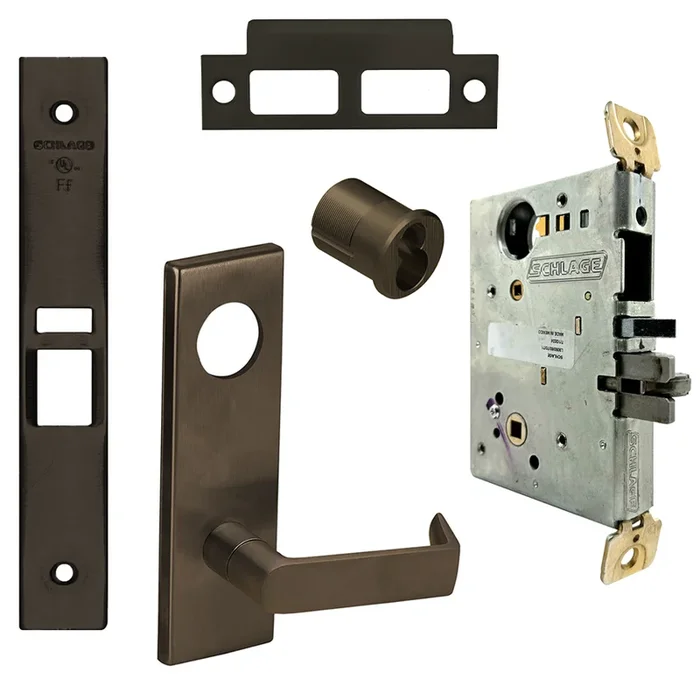

Schlage L9092EUJ 06N 613 Lock Electric Mortise Lock
The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.
- Tested and certified to ANSI/BHMA grade 1 operational and security standards
- UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
- Deadbolt features include anti-saw pin in bolt to prevent cut-through
- Security blocking hub prevents lock access by removing levers
- Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
- Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
- Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
- Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
- Two piece anti-friction tongue in latch bolt reduces wear
- Breakaway spindle keeps door secured in the event of vandalism
- Field reversible latch bolt allows handing change without opening case
- Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests
Attributes
Alternate Codes: L9092EUJ06N613
Amp Draw: 400mA
Backset: 2-3/4″
Bolt Protection: 3/4 In.
Category: Lock Sets, Mortise Locks, Mortise Lock Sets
Cylinder Type: Schlage FSIC Prep Less Core
Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets
Door Thickness: 1-3/4 In.
Dust Box: Plastic
Finish: 613/US10B
Finish Code: 613
Finish Color: Dark Bronze Anodized, Dark Bronze/Clear Coat, Dark Brown, Dark Oxidized Satin Bronze, Oil Rubbed Bronze
Finish : Dark Oxidized Satin Bronze Oil Rubbed
Fire Rated: 3 Hours {A}
Function: 9092EU-Fail Secure
Grade: Grade 1
Hand: Field Reversible
Lever Design: 6
Lever Knob Design: 06 – Lever
Limited Warranty: 1 Year
Lock Category: Mortise Lockset – Latch Only
Lock Face Size: 8 In. x 1-1/4 in.
Operating Voltage: 12VDC/24VDC
Power: Hard Wired
Rose Escutcheon Design: N – Escutcheon
Rose/ Escutcheon: N Escutcheon
Screws: Combination
Series: L Series
Strike Height: 4-7/8 In.
Strike Number: 10-072
Strike Type: ASA
Strike Width: 1-1/4 In.
Subtype: Electric Mortise Lock
Switch Type: None
Type: Electric Locks
