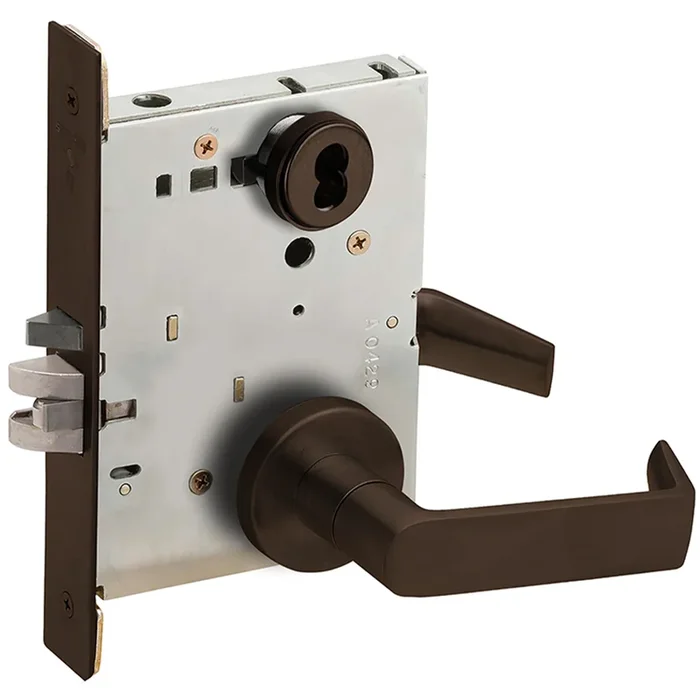

KIT – 06B Entry/Office Mortise Lock, Small Format IC (SFIC), Less Core, 613/US10B Oil Rubbed Bronze

Description

Schlage L9050B 06B 613 L9050BD 06B 613 Lock Mortise Lock

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.

• Tested and certified to ANSI/BHMA grade 1 operational and security standards
• UL listed for 3-hour fire door; spring-loaded fusible link inside lock case provides fail secure mode in case of fire
• Deadbolt features include anti-saw pin in bolt to prevent cut-through
• Security blocking hub prevents lock access by removing levers
• Vandlgard option allows the outside lever to rotate freely down to prevent damage from excessive force while in a locked state
• Lock monitoring options include request to exit (RX), latchbolt (LX), door position (DPS), and deadbolt (DM) (availability varies by function)
• Patented Everest 29 S123 keyway is provided standard which prohibits unauthorized key duplication
• Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security
• Two piece anti-friction tongue in latch bolt reduces wear
• Breakaway spindle keeps door secured in the event of vandalism
• Field reversible latch bolt allows handing change without opening case
• Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests

Attributes

Alternate Codes: L9050B06B613, SCHL9050B06B613

Ansi Function: F04 – Entry/Office

Baa Qualified: Yes

Backset: 2-3/4″

Bolt Protection: 3/4″

Cam Number: L583-255

Cam Type: Schlage L

Category: Lock Sets, Mortise Lock Sets, Mortise Locks

Country of Origin: Mexico

Cylinder Length: 1-3/8″

Cylinder Type: SFIC Prep Less Core

Door Application: Mortise Electric, Mortise Lock Body, Mortise Lock Sets

Door Thickness: 1-3/4″

Dust Box: Plastic

Finish: 613/US10B

Finish Code: 613

Finish Color: Dark Bronze Anodized, Dark Bronze/Clear Coat, Dark Brown, Dark Oxidized Satin Bronze, Oil Rubbed Bronze

Finish : Dark Oxidized Satin Bronze Oil Rubbed

Fire Rated: 3 Hours {A}

Function: 9050-Entrance Office Lock

Function Family: Entrance/Office

Grade: Grade 1

Hand: Field Reversible

Latch Backset Dim: 2-3/4″

Latch Type: Dead Latch (Guarded)

Lever Design: 6

Lever Knob Design: 06 – Lever

Lever Knob Design Family: Straight Return Lever

Limited Warranty: 3 Years

Lock Category: Mortise Lockset – Latch Only

Lock Face Size: 8″ x 1-1/4″

Manufacturer Function : Latchbolt retracted by knob/lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key outside or by knob/lever inside. Outside knob/lever remains locked until thumbturn is returned to vertical or unlocked by key. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.

Num Pins: 6 to 7

Pocket Dimensions: 6-5/8″ x 4-1/2″

Projection: 2-1/2″

Restrictions: None

Rose Escutcheon Design: B – Rose

Rose Escutcheon Dimensions: 2-9/16″

Rose/ Escutcheon: B Rose

Screws: Combination

Series: L Series

Strike Height: 4-7/8″

Strike Number: 10-072

Strike Type: ASA

Strike Width: 1-1/4″

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks
