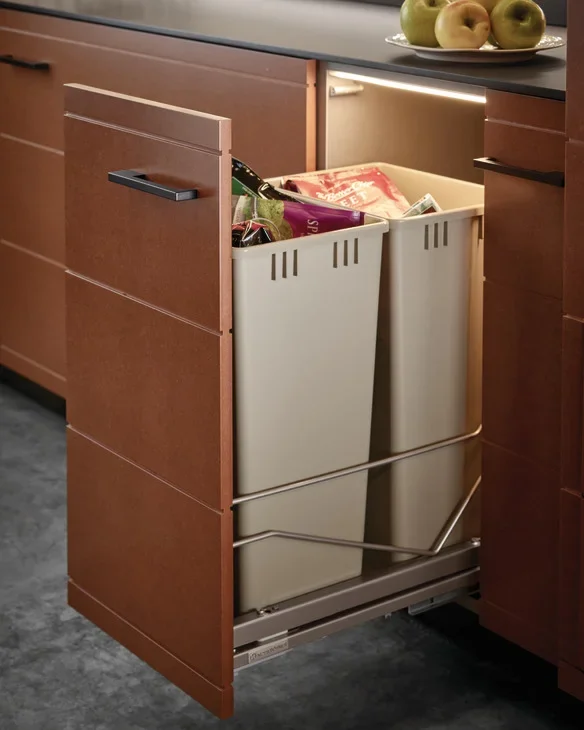

Hafele 502.56.940 Kessebohmer Double Pull-Out Waste Bin, Bottom Mounted

Hafele 502.56.940 Kessebohmer – Waste Bin Pull-Out, Double Bin, Bottom Mounted offers an efficient solution for managing waste within your kitchen or utility space. Designed for cabinets with a width of 18 inches, this system features two 36-quart bins that provide ample capacity while maintaining a sleek appearance with a silver frame and gray bins. Installation is quick and straightforward, thanks to the included drilling template for both the floor and door. The pull-out mechanism is equipped with reinforced “V-Rail” side rails, ensuring stability even with full-height doors. This unit is suitable for both overlay and inset cabinet doors, making it versatile for various cabinetry styles. With an installation depth of 568 mm and a load-bearing capacity of 45 kg, this waste bin pull-out can handle daily use with ease. It is designed to fit in both face frame and frameless cabinets, accommodating internal cabinet dimensions of 397 mm in width and a minimum height of 489 mm. The soft and silent operation enhances user experience, providing a quiet and efficient way to manage waste. For optimal performance, remember to order additional bins separately, as this product is supplied in bulk with 16 pieces.

Kessebohmer – Waste Bin Pull-Out, Double Bin, Bottom Mounted

for 18″ cabinet width, Silver, 2 x 36 qt

Quick installation with drilling template for floor and door Easy front adjustment in all directions With “V-Rail” reinforced side rails for more stability on full height doors

Attributes

Area of application: For cabinets with overlay or inset doors

Capacity: 2 x 36 qt

Color/finish: Frame: Silver, Bin: Gray

Depth (inch): 22 3/8″

For cabinet width: 381 – 397 mm

For internal cabinet height: 489.00 mm

For internal cabinet width: 397 mm

For internal cabinet width max.: 397.00 mm

For internal cabinet width min.: 397.00 mm

Height (inch): 10″

Installation depth: 568 mm

Load bearing capacity: 45.00 kg

Material/finish: Frame: Steel; Bin: Plastic

Number of bins: 2.00

Order reference: Bulk pack supplied with 16 pcs. Order bins separately.

Suitable for: For use in face frame or frameless cabinets

Supplied with: Frame 2 – 36 qt. bins

Version: Soft & silent Minimum height of opening: 489 mm (19 1/4″) for 36 qt and 610 mm (24″) for 52 qt Minimum width of opening: Face frame: 381 mm (15″) Frameless: 397 mm (15 5/8″) Actual width of sliding unit: 372 mm (14 5/8″)

Width (inch): 14″

Resources

• Double Waste Bin Drawing
• Installation instructions
• Installation instructions
• Installation instructions
• Kesse Product Information
• Kesse Pull-Out Waste Bin Brochure
• Kesse Waste Bin Double Mounting Instructions
• Manufacturer information
• Mounting Guideline Waste Bin Pull-Out
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 3.28
• Technical data sheet
