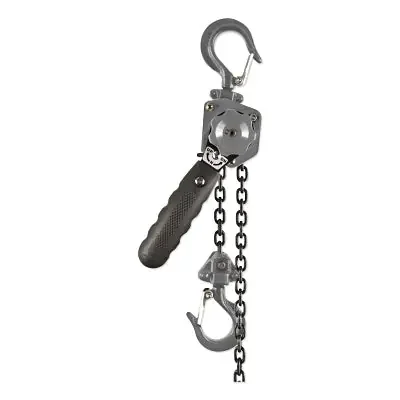

JLP-A Series Mini-Puller, 1/2 Ton, 10 ft Lift Height, 86 lbf

Description

Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security. Industrial rated alloy steel hooks rotate 360° for easy rigging. Hooks slowly stretch to indicate an overload situation increasing jobsite safety. Cast steel safety latches are secured with Allen screws and lock nuts. Needle bearing design increases efficiency and promotes smooth operation.
Features:

JLP-A Series Mini-Puller, 1/2 Ton, 10 ft Lift Height, 86 lbf

Specifications:

Handle Length [Nom]=8-1/2 in

Head Room [Nom]=10 in

Hook Opening=1-3/8 in

Lifting Height/Take-Up [Nom]=10 ft

Material=Steel; Grade 80 Black Oxide Coated Load Chain

Model=JLP-050A-10

Mounting=Hook

No. of Falls=1

Pull Force [Max]=86 lbf

Wt. Cap. [Nom]=1/2 ton

Quantity: 1
