Jackson 900 Series 105 Degree Hold Open Spring Power Adjustable Floor Mounted Closer Body and Cement Case Basic Package

Description

CRL J994H0D Jackson 900 Series 105 Hold Open Adjustable Floor Closer Body Case

C.R. Laurence J994H0D Jackson 900 Series 105 Degree Hold Open Spring Power Adjustable Floor Mounted Closer Body and Cement Case Basic Package is engineered for durability and versatility in both new and retrofit applications. With a remarkable capacity of 1,000 lbs. and the ability to accommodate doors up to 54 inches wide, this heavy-duty closer is perfect for high-traffic areas needing robust performance. Featuring multi-size spring power adjustment, this closer caters to a range of door sizes, ensuring compliance with A.D.A. standards by allowing opening forces of either 5 or 8.5 lbs. The innovative door centering adjustment simplifies alignment, making it ideal for double doors. Additionally, the unit’s thermal-sensitive valves and multi-viscosity fluid provide seasonal adaptability, particularly beneficial in areas experiencing extreme temperature fluctuations. This system is UL Listed and adheres to BS EN1154 – Classification 3.8.6/1.1.1.3 standards. The package includes the 990 closer body, a cement case, and an installation tool kit, ensuring a straightforward setup. Choose between hold open models at 90º, 120º, or 105º, to best suit your project’s needs. For a reliable, adjustable, and long-lasting door closing solution, trust the C.R. Laurence Jackson 900 Series.

Jackson 900 Series 105 Degree Hold Open Spring Power Adjustable Floor Mounted Closer Body and Cement Case Basic Package

• 1000 Lb. Capacity, 54″ (1.37 m) Doors
• Multi-Size Spring Power Adjustable
• Interchangeable Spindle Heights
• Leveling and Door Centering Adjustments
• 10 Year Limited Warranty
• UL Listed
• BS EN1154 – Classification 3.8.6/1.1.1.3

The
CRL Jackson® 900 Series Multi-Sized Floor Mounted Door Closer is a heavy-duty, fully adjustable closer designed for new and retrofit applications. Accessories are available for either double or single acting doors. With its 1,000 lbs. (453 kg) capacity, the 900 Series Door Closer can be used with larger and heavier interior or exterior doors for longer, maintenance-free performance. These Door Closers are available in dual 90º and 120º, or 105º only Hold Open and No Hold Open models.

This fully adjustable Door Closer meets A.D.A. requirements in that it can be set at 5 or 8.5 lbs. opening forces. The unique centering adjustment simplifies double door alignment. This Door Closer is ideal for areas with extreme temperature changes due to its multi-viscosity temperature stabilizing fluid with thermal sensitive valves providing seasonal adaptability. Packages for new and retrofit installations, as well as accessories for both Center-Hung and Offset door applications, are available.

NOTE: This Door Closer is designed to open to a maximum of 180 degrees. An auxiliary floor or overhead stop is required to stop the door at less than 180 degrees.

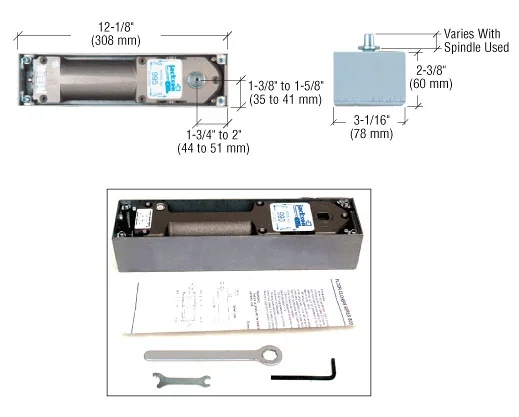

CONSISTS OF:
990 Closer Body
Cement Case
Installation Tool Package

SPECIFICATIONS:
Maximum Center-Hung Door: Weight = 1000 lbs. (454 kg), Width = 54″ (1.37 m)
Maximum 3/4″ Offset Door: Weight = 650 lbs. (295 kg), Width = 48″ (1.22 m)
Maximum 1-1/2″ Offset Door: Weight = 300 lbs. (136 kg), Width = 42″ (1.07 m)
Adjustable Spring Power: Multi-Size 1 – 6
Door Centering Adjustment: 6 Degree Range Adjustment to Align Door
Hold or No Hold Open Models: Hold Open at Both 90 Degrees and 120 Degrees, Hold Open at 105 Degrees Only

Jackson 900 closer cover plate accepts flat head screws M6 x 1.0 x Length TBD by the application

Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer’s video card and on how your monitor’s color is adjusted.

Attributes

Adjustable Spring Size: Yes

Americans with Disabilities Act: Yes

Body Height: 2-3/8

Body Length: 12-1/8

Body Widt: 3-1/6

Body Width: 3-1/6

Brand: Jackson

Closer Body With Box: Yes

Closer Type: Floor Closer

Compliance and Restrictions: Warning Reproductive Harm – www.p65warnings.ca.gov

Door Centering Adjustment: 6 Degree Centering Range

Door Opening: 180

Door Width 1 1/2 Offset: 42

Door Width 3/4 Offset: 48

Door Width Center Hung: 54

Handing: Double Acting

Height Adjustment: Yes

Hold Open: 105°

Includes: Installation Hardware, J9010, Tool Kit

Interchangeable Spindles: Yes

Interior Or Exterior Doors: Yes

Maximum Weight 1-1/2 Offset: 300 Pounds

Maximum Weight 3/4 Offset: 650

Maximum Weight Center Hung: 1000 Pounds

Opening Degree: 105

Recommended Door Type: Aluminum, Hollow Metal

Replacement Parts: J9010, J9015

Series: 900

Shipping Limitations: None

Similar: BTS80BF, BTS802

Spring Size: 1.2.3.4.5.6

UL Listed: Yes

Visible Bubble Port For Leveling: Yes

Resources

• Jackson 900 Series Floor Mounted Door Closers Center Hung and Offset Installation Instructions
• Jackson Door Control Products Limited Warranty and Liability Information
