Dormakaba RMB220G-26D Insync Mortise Lock Instructions

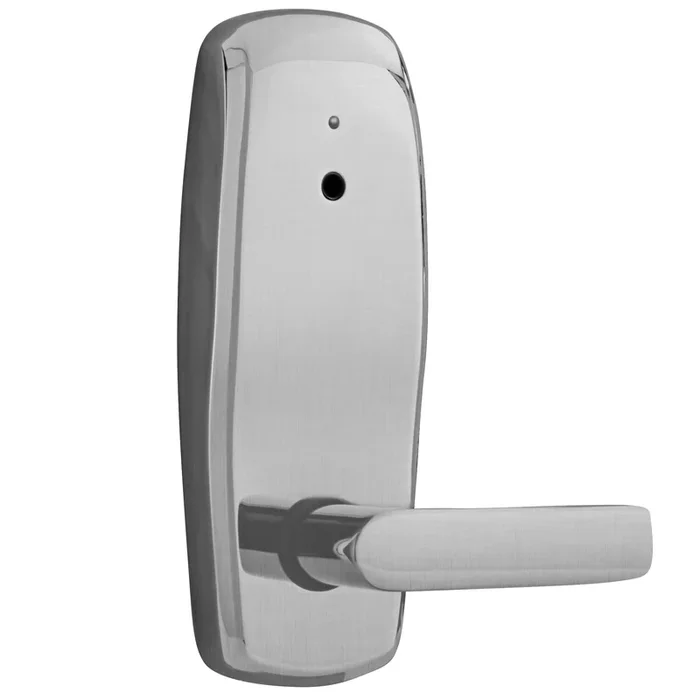

Kaba Access Dormakaba RMB220G-26D Insync Mortise Lock offers a seamless blend of security and convenience. This battery-operated ASM mortise lock is designed for utility applications and features a left-hand handing with a sleek Gala lever in a satin chrome finish. Its compatibility with SAM RF software allows it to manage both key and access control effortlessly at various entry points, including perimeter, amenity, and utility doors. The InSync system simplifies access management by requiring administrators to program the locks only once. Any updates regarding access privileges or tenant changes are automatically communicated to each lock via the InSync key, enhancing operational efficiency and user experience. This lock accommodates door thicknesses from 1-3/8 inches to 2 inches and has a latch backset dimension of 2-3/4 inches, making it versatile for different installations. With a fire-rated design, the RMB220G-26D ensures safety without compromising style, complementing modern architectural trends with its contemporary finish. Powered by four AA batteries, this reliable electric mortise lock also comes with a one-year limited warranty, making it a smart investment for building professionals and discerning homeowners alike.
Insync Mortise Lock
InSync Battery Operated ASM Mortise Lock, Utility Mortise, No Deadbolt, Common, Gala Lever, Left Hand, Satin Chrome
InSync locks work together with SAM RF software to create a single system that manages both key and access control at perimeter entries. These multihousing locks are developed to make access convenient.
InSync locks work together with SAM RF software to create a single system that manages both key and access control at perimeter entries, amenity and utility doors as well as apartment or bedroom doors. With the InSync system, administrators only need to program the locks once; the software continually manages critical informational changes such as access privileges and move ins/outs. This information is delivered automatically to each lock via the InSync key once the “New” version of the key is created and used in the locks. Only one key is required for use at multiple access points, creating a convenient and efficient “No Touring”user experience. InSync lock models accommodate virtually all door types and preparations, and common area/amenity applications. The locks feature contemporary finishes and lever options to complement today’s design trends.
Attributes
Manufacturer surcharge: 7.0%
Door Thickness: 1-3/8 In. to 2 In.
Finish: 626/US26D
Fire Rated: Yes {Variable}
Fire Rating: Yes {Variable}
Handing: Left Hand
Latch Backset Dim: 2-3/4 In.
Leverknob Design: G – Gala Lever
Limited Warranty: 1 Year
Pack Qty: 1
Power: 4 AA Batteries
Series: InSync Electric Locks
Ship Weight: 10 lbs.
Std Strike Height: 4-7/8 In.
Std Strike Width: 1-1/4 In.
Subtype: Electric Mortise Lock
Type: Electric Locks
Unit of Measure: Each
Resources
- InSync C Data Sheet
- InSync C Panic/Exit Device Template
- InSync CL Lock Usage Instructions
- InSync CL/SL Installation Instructions
- InSync CM/SM Installation Instructions
- InSync CP Installation Instructions
- InSync CR Installation Instructions
- InSync Cylindrical Deadbolt Adjustment Installation Instructions
- InSync Cylindrical Latch Template
- InSync D Data Sheet
- InSync D Installation Instructions
- InSync Deadbolt Template
- InSync I Data Sheet
- InSync I Installation Instructions
- InSync Interconnect Template
- InSync L Installation Instructions
- InSync L Lock Usage Instructions
- InSync Lock Series SAM RF Software Data Sheet
- InSync M Data Sheet
- InSync M Installation Instructions
- InSync M Lock Usage Instructions
- InSync Mortise 1.25 Template
- InSync Mortise Narrow Template
