I-Box 01 Frameless – Sliding Shower Door Solution by Richelieu

Description

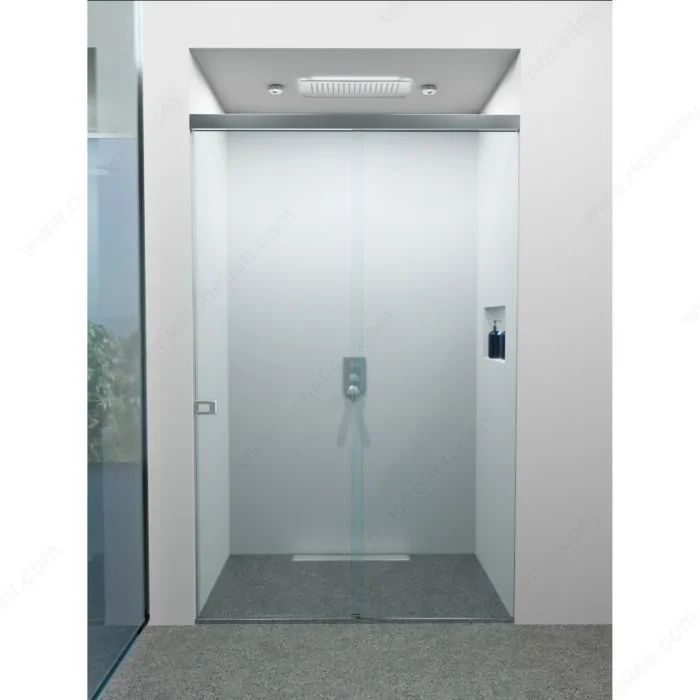

Richelieu 755IBOX01FL140 I-Box 01 Frameless Design

Richelieu 755IBOX01FL140 I-Box 01 Frameless brings a seamless elegance to your space with its advanced design and innovative features. Equipped with the patented “SOFTY” soft-close system, this sliding door requires minimal force for operation, allowing for smooth, constant, and silent movement without traditional latches or release points.The unique combination of the Softy system and a specially designed profile ensures complete sealing, effectively eliminating leaks from the shower cabin. With a self-adjusting floor guide integrated into the floor guard, it accommodates varying glass thicknesses, minimizing vibrations and noise during sliding.Designed for single sliding applications, the I-Box 01 can accommodate an enclosure width of up to 78 3/4 inches and supports glass thicknesses from 1/4 to 5/16 inches. It boasts a commendable load capacity of 110 pounds, making it suitable for robust installations.The polished chrome finish adds a touch of sophistication, while the recommended door height and width of 90 1/2 inches and 37 inches respectively ensure a perfect fit. With a recommended fixed panel width of 41 3/8 inches, this product is ideal for modern bathroom designs, combining functionality with aesthetic appeal.

I-Box 01 Frameless

Equipped with “SOFTY”, an innovative and patented soft-close system.
As opposed to traditional soft-close systems, minimal force is needed to release the damper and open/close the door
With no latch or release points, the motion of the door is smooth, constant, and silent.

Thanks to the combination of the Softy system and a patented profile applied to the thickness of the glass, complete sealing of the system can be achieved, resulting in no annoying leaks from the shower cabin.

The self-adjusting floor guide integrated into the floor guard automatically adjusts to the thickness of the glass, minimizing door oscillations and vibrations and eliminating noise caused by the glass movement during sliding.
The minimum distance between the sliding door and the fixed panel is 11 mm.

Attributes

Application: Single Sliding

Enclosure Width: Max. 78 3/4 in*

Finish: Polished chrome

Glass Thickness: 1/4 to 5/16 in*

Load Capacity: 110 lb*

Material: Aluminum

Max. Fixed Panel Height: 90 1/2 in*

Product #: 755IBOX01FL140

Product №: 755IBOX01FL140

Recommended Door Height: 90 1/2 in*

Recommended Door Width: 37 in*

Recommended Fixed Panel Width: 41 3/8 in*

Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84″ or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.

Resources

• Instructions
