Description

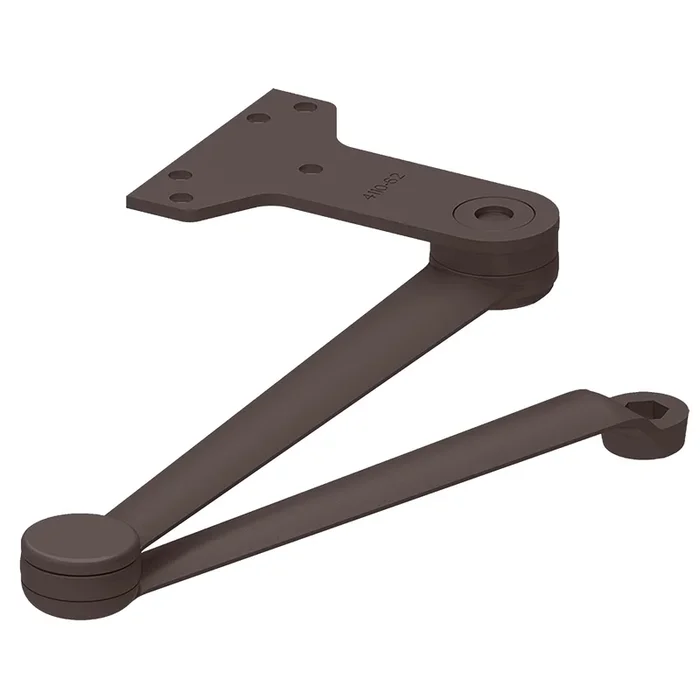

LCN 4040XP-3049EDA RH 695 Hold Open Extra Duty Arm – DKBRZ
LCN 4040XP-3049EDA RH 695 Hold Open Extra Duty Arm DKBRZ is the ideal solution for high-traffic environments that demand durability and reliability. This hold open extra duty arm features a robust parallel arm design crafted from forged solid steel, making it suitable for potentially abusive installations. The hold open function is conveniently adjustable at the shoe, allowing for customized operation.Designed for institutional and commercial applications, the LCN 4040XP series sets a new benchmark in heavy-duty closers. With an impressive 44% increased bearing load capacity and the strongest pinion ever at 3/4″ journal diameter, it provides exceptional performance that exceeds industry standards. The 5/8″ wide bearing and stronger pinion teeth further enhance its longevity. This non-handed closer is versatile, allowing installation on hinge side, top jamb, or parallel arm configurations for right or left swinging doors. It meets ADA requirements and is UL and cUL listed for self-closing doors without hold-open. Finished in a dark bronze paint, the 4040XP also offers a 30-year limited warranty, ensuring peace of mind for building professionals and homeowners alike. Experience the strength and reliability of LCN with the 4040XP-3049EDA.
Hold Open Extra Duty Arm DKBRZ
Hold Open Extra Duty Arm, Parallel Arm Features Forged Solid Steel Main and Forearm for Potentially Abusive Installations, Hold Open Function is Adjusted at the Shoe, Dark Bronze Painted Finish, Right-Handed
LCN’s most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCNbuilt the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
- 44% increased bearing load capacity
- Strongest pinion ever, at 3/4″ journal diameter
- Widest bearing ever,at 5/8″
- Stronger pinion teeth
- New V-shield™ seal with 20% longer life
- XP = eXtra Protection in real world applications
- Cast Iron
- Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- LCN® Fast™ Power Adjust
- Fast & Accurate Installation
- UL & cUL Listed
- Tested and certified under ANSI Standard A156.4, grade one
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0″
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Attributes
Manufacturer surcharge: 4.5%
Application: For 4040XP Series Door Closers
Baa Qualified: Yes
Base Material: Varies
Commercial Residential: Commercial
Country of origin: USA
Finish: 695
Finish Family: Dark Bronze
Grade: Grade 1
Handing: Right-Handed
Hold Open: Yes
Installation: Commercial
Limited Warranty: 30 Years
Mounting Style: Parallel Arm
Origin: USA
Pack Qty: 1
Series: 4040XP Series Surface Mounted Closers
Subtype: Door Closer Arms
Type: Door Closers and Operators
Unit of Measure: Each
Resources
- 4040XP Brochure
- 4040XP Feature Enhancements
- 4040XP Series Cut Sheet
- 4040XP Series Surface Mounted Closers Cut Sheet
- 4040XP/4041DA Installation Instructions
- LCN 4000 Series Catalog
- LCN 4040XP Closer Installation Video
- LCN 4040XP Series Infographic
- LCN 4040XP/4041 DA 120 Degree Top Jamb Push Side Mount Installation Guide
- LCN 4040XP/4041 DA CUSH 85-90-100-110 Degree Push Side Mount Installation Guide
- LCN 4040XP/4041DA 120 Degree & 180 Degree Pull Side Installation Guide
- LCN 4040XP/4041DA Drop Plate Installation Guide
- LCN 4040XP/4041DA EDA 110-180 Degree Installation Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- Von Duprin Finishes Chart
