Description

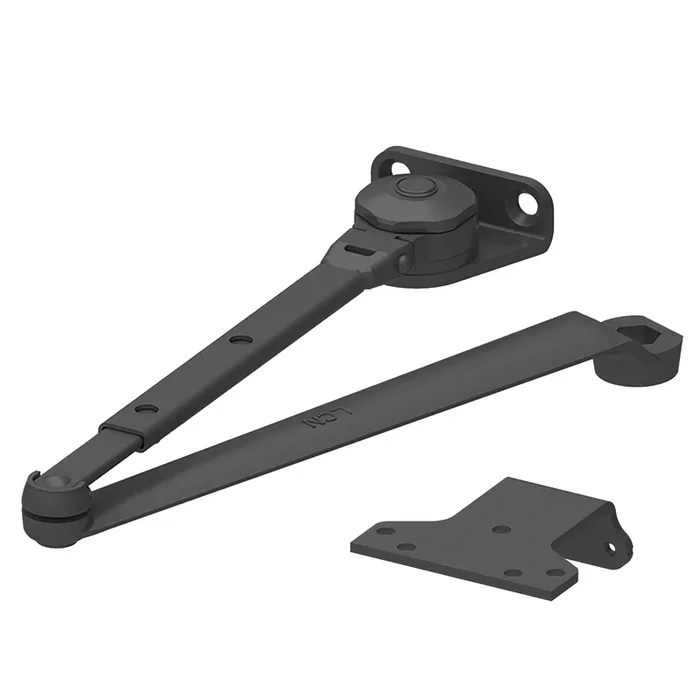

LCN 4040XP-3049/PA 693 Hold Open Arm – GLBLK
LCN 4040XP-3049/PA 693 Hold Open Arm GLBLK offers an exceptional combination of durability and flexibility, making it the ideal choice for high-traffic institutional environments. Designed as a non-handed, heavy-duty closer, this model excels in demanding applications where reliability is paramount. With a black painted finish, the hold open arm features a 62PA shoe that blends seamlessly with various door styles. This heavy-duty closer sets a new benchmark in performance, boasting a robust construction with a 3/4″ journal diameter pinion and a 5/8″ wide bearing for increased load capacity-44% more than its predecessors. The patented V-shield™ seal ensures longevity with a 20% extended lifespan. Installation is straightforward, thanks to the LCN® Fast™ Power Adjust feature, which allows for quick and accurate setup. The 4040XP is adaptable for various mounting styles-hinge side, top jamb, or parallel arm-on either right or left swinging doors. With a limited 30-year warranty, this closer is built to meet ADA requirements and is UL and cUL listed for self-closing doors. Whether for commercial or residential projects, the LCN 4040XP-3049/PA promises exceptional performance and peace of mind in any setting.
Hold Open Arm GLBLK
Hold Open Arm with 62PA Shoe, Black Painted Finish
LCN’s most durable and flexible heavy duty closer designed for institutional and other demanding high traffic applications.
Durable, non-handed, heavy duty closer designed for the most demanding, high-use and abuse applications.
The LCN 4040XP sets a new standard for reliability, longevity and value with a beefier design and extraordinary performance testing that goes far beyond industry requirements. LCNbuilt the 4040XP from the inside out, combining tougher, bolder construction with proven LCN technology. The result is a closer that’s stronger, smarter and delivers remarkable value in a variety of applications.
- 44% increased bearing load capacity
- Strongest pinion ever, at 3/4″ journal diameter
- Widest bearing ever,at 5/8″
- Stronger pinion teeth
- New V-shield™ seal with 20% longer life
- XP = eXtra Protection in real world applications
- Cast Iron
- Forged Steel Arm
- Double Heat Treated Steel Pinion
- All Weather Fluid
- Non-Handed
- LCN® Fast™ Power Adjust
- Fast & Accurate Installation
- UL & cUL Listed
- Tested and certified under ANSI Standard A156.4, grade one
- Non-sized cylinder is adjustable for interior doors to 5’0” and exterior doors to 4’0″
- Closer can mount hinge side, top jamb, or parallel arm (with PA bracket) on either right or left swinging doors
- Closers to meet ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- UL and cUL listed for self-closing doors without hold-open
- 4040XP can be used with all 4040 accessories
Attributes
Manufacturer surcharge: 4.5%
Application: For 4040XP Series Door Closers
Baa Qualified: Yes
Base Material: Varies
Commercial Residential: Commercial
Country of origin: USA
Finish: 693
Finish Family: Black
Grade: Grade 1
Handing: Non-Handed
Hold Open: Yes
Installation: Commercial
Limited Warranty: 30 Years
Mounting Style: Tri Mount
Origin: USA
Pack Qty: 1
Series: 4040XP Series Surface Mounted Closers
Subtype: Door Closer Arms
Type: Door Closers and Operators
Unit of Measure: Each
Resources
- 4040XP Brochure
- 4040XP Feature Enhancements
- 4040XP Series Cut Sheet
- 4040XP Series Surface Mounted Closers Cut Sheet
- 4040XP/4041DA Installation Instructions
- LCN 4000 Series Catalog
- LCN 4040XP Closer Installation Video
- LCN 4040XP Series Infographic
- LCN 4040XP/4041 DA 120 Degree Top Jamb Push Side Mount Installation Guide
- LCN 4040XP/4041 DA CUSH 85-90-100-110 Degree Push Side Mount Installation Guide
- LCN 4040XP/4041DA 120 Degree & 180 Degree Pull Side Installation Guide
- LCN 4040XP/4041DA Drop Plate Installation Guide
- LCN 4040XP/4041DA EDA 110-180 Degree Installation Guide
- LCN Closers & Auto Operators Installation Guide
- LCN Closers & Automatic Operators Parts Manual
- Von Duprin Finishes Chart
