Description

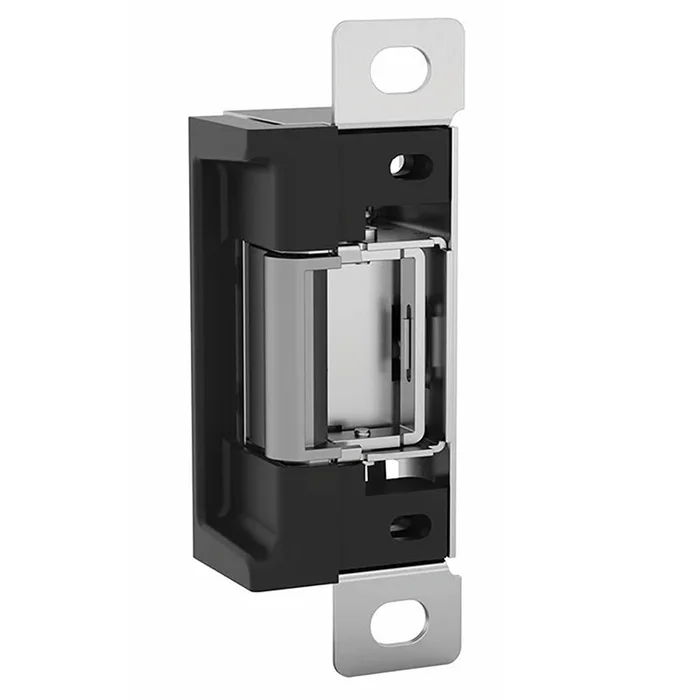

HES 7000-LBM Preload Electric Strike Body
HES 7000-LBM Preload Electric Strike Body is designed for seamless integration into both metal and wood frames, providing a reliable solution for pre-loaded doors. This electric strike operates under fail safe or fail secure modes, making it versatile for various security needs. With an operating voltage of 12/24 VDC, it accommodates cylindrical latchbolts up to 5/8″ throw and rim exit latchbolts up to 3/4″ throw, ensuring compatibility with a wide range of locking mechanisms. One of the standout features of the 7000 Series is its in-frame adjustable design, allowing for easy modifications to the electric strike opening. This is particularly beneficial in dealing with the horizontal positioning of the latchbolt post-installation. The pre-load release function expertly mitigates issues caused by air-conditioning pressure, weather changes, or door warping-ensuring smooth operation throughout the year. Certified to UL 1034 for burglary resistance and ANSI/BHMA Grade 1 standards, this electric strike is built for performance and longevity. With a limited 3-year warranty, you can trust the durability of this product. Ideal for commercial applications, the HES 7000-LBM is a robust addition to any security system, perfectly blending functionality with ease of installation.
Preload Electric Strike Body
Electric Strike Body Only, Fail Safe/Fail Secure, 12/24VDC, LBM
The 7000 Series offers two solutions to address pre-loaded doors. The in-frame adjustable feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after installation. The pre-load release function allows the electric strike to operate smoothly throughout the year under varying loads on the door caused by air-conditioning pressure, changes in the weather, warped doors or doors with weather stripping that often bind standard electric strikes. This unit accommodates cylindrical latchbolts up to 5/8″ throw and rim exit latchbolts up to 3/4″ throw.
The 7000 Series has both an in-frame adjustable feature as well as a pre-load release function.
The 7000 Series offers two solutions to address pre-loaded doors.This unit accommodates cylindrical latchbolts up to 5/8″ throw and rim exit latchbolts up to 3/4″ throw.
UL 1034, burglary-resistant listed
ANSI/BHMA A156.31, Grade 1 (791 and 792 options)
ANSI/BHMA A156.31, Grade 2 (783S, 786S and 789S options)
MEA New York City accepted
Patent #5,484,180
Attributes
Amp Draw: .45 Amps @ 12VDC, .25 Amps @ 24VDC
Baa Qualified: Yes
Commercial Residential: Commercial
Configuration: Centered
Country of origin: USA
Faceplate Shape: Flat Face, Square Corners
Fire Rated: No
For Use With: Cylindrical Locks
Frame Application: Metal or Wood
Function: Fail Safe/Fail Secure
Grade: Grade 1
Installation: Commercial
Keeper Size: 1/2″
Limited Warranty: 3 Years
Operating Voltage: 12/24 VDC
Origin: USA
Pack Qty: 1
Pre Load: 15 lbs.
Series: 7000 Series Electric Strikes
Subtype: Electric Strikes
Switch Type: Latchbolt Monitor
Type: Electric Strikes, Bolts, Magnets
Unit of Measure: Each
Upc: 7.4009E+11
Resources
- 2023 HES Price Book (effective 4.17.2023)
- 7000 Series Electric Strikes;7000 Series Faceplates Cut Sheet
- AA ESH Electric Strike Overview
- Electric Strike Selector Guide
- HES 7000 Series Dimensional Drawings
- HES 7000 Series Installation Guide
- HES 7000 Series Overview
- HES 7000 Series Sell Sheet
- HES Compatibility Chart
- HES Electric Strikes How to Order Guide
- HES Electric Strikes for Every Lockset Application
- HES Lock Cross Reference Chart
