Description

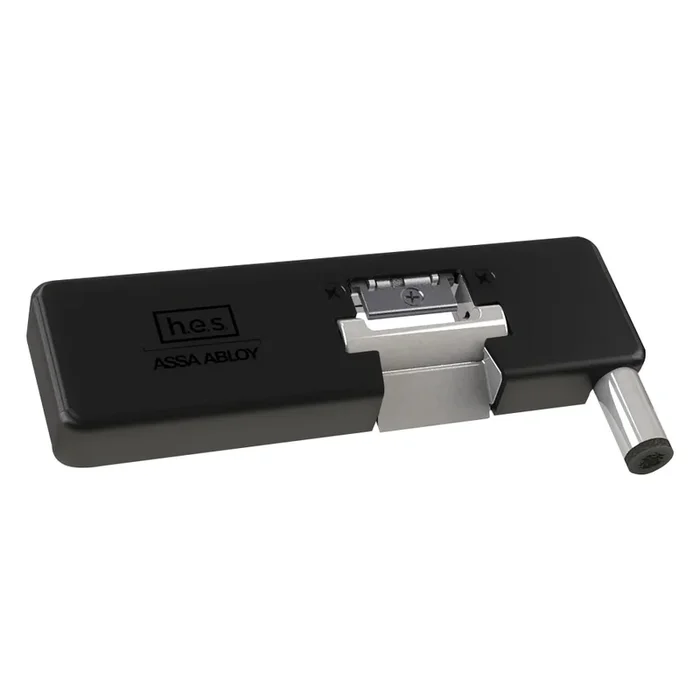

HES 9100L-BSP-LMS Electric Strike for Left Hand Tubular Rod Devices, BSP Black Suede
HES 9100L-BSP-LMS Electric Strike for Tubular Vertical Rod Devices combines innovative design with robust functionality, making it an ideal choice for single door applications. This electric strike features a sleek black suede powder coat finish, enhancing its aesthetic appeal while ensuring long-lasting durability. It is engineered for retro-mounting within existing mechanical prep, eliminating the need for frame cutting, which simplifies installation significantly. The 9100L model offers integrated adjustability for optimal latch positioning, accommodating latchbolts ranging from 5/8 to 3/4 inches. Its adaptable voltage sensing technology operates seamlessly within 12 to 24 volts, minimizing wiring complexities. Additionally, the strike supports field-selectable fail safe/fail secure functionality and provides latchbolt monitoring options for enhanced security. Constructed from stainless steel, the 9100L achieves impressive static strength of 1,500 lbs and dynamic strength of 70 ft-lbs, ensuring reliable performance even in high-demand environments. With a remarkable endurance rating of 1 million cycles, this electric strike meets the stringent ANSI/BHMA A156.31 Grade 1 standards and is UL outdoor rated, making it suitable for various settings. Backed by a five-year, no-fault warranty through SecuriCare, the HES 9100L-BSP-LMS is a smart investment for those seeking reliable and efficient access control solutions.
Electric Strike for Tubular Vertical Rod Devices, Latchbolt and Strike Monitoring, Left Hand, Single Door Application, BSP Black Suede Powder Coat
Notice: The info below is not item specific.
The innovative 9100 electric strike sets a new industry standard for glass openings with tubular, vertical rod exit devices. The low-profile 9100 offers simplified retro-mounted installation within the existing mechanical prep to provide fast and easy installation without the need to cut the frame. Integrated adjustability provides optimal latch positioning to accommodate demanding installations. The 9100 has adaptable voltage sensing technology which allows the product to function in ranges from 12 through 24 volts with no required wiring selection. Available with field selectable fail safe/ fail secure functionality and monitoring options for maximized versatility. The 9100 exceeds Grade 1 standards and is designed with the strength and durability to meet UL outdoor rating requirements.
Features:
- Retro-mount using existing header prep
- No cutting required
- Integrated adjustability
- Adaptable voltage sensing technology (12-24 VDC)
- Factory configured or field installable monitoring
- Static strength 1,500 lbs
- Dynamic strength to 70 ft-lbs
- Endurance 1 million cycles
- Field selectable fail secure/fail safe
- Quiet operation
- Stainless steel construction
- SecuriCare five-year, no-fault, no questions asked warranty
Specifications:
- Application:
- Adjustability : Fully Adjustable
- Surface Mounting : Yes
- Frame Material : Aluminum|Hollow Metal|Wood
- Shim Type : Field Adjustable
- Latchbolt Accommodation (in) : 5/8 – 3/4
- Lock Type : Exit Device
- Weights & Dimensions:
- Strike Body Depth : 0 5/8e
- Strike Body Height : 6e
- Strike Body Width : 1 7/8e
- Electrical:
- Voltage : 12/24
- Monitoring Installation : Factory Configured|Field Installable
- Monitoring Options : Latchbolt Monitoring
- Current 12v DC (mA) : 240
- Current 24v DC (mA) : 120
- Strength & Durability:
- Endurance : 1000000
- Dynamic Strength (lbs) : 70
- Tamper Resistant : Yes
- Fail Safe | Fail Secure : Field selectable fail safe/fail secure
- Static Strength : 1500
- Certifications: ANSI/BHMA A156.31, Grade 1
Finishes:
- 606 – Satin Brass, clear coated
- BSP – Black suede powder coat
- 629 – Bright stainless steel
- 613E – Dark oxidized satin bronze-equivalent
- 605 – Bright Brass, clear coated
- 630 – Satin stainless steel
- 612 – Satin bronze, clear coated
Attributes
Alternate Codes: 9100L-BSP-LMS, 9100LBSPLMS
Amp Draw: 240 mA @12V 120 mA @ 24V
Ansi: A156.31
Application: Glass Single Doors with Vertical Rods
Burglar Rated: Yes
Category: Access Control, Electric Strikes
Commercial Residential: Commercial
Finish: BSP
Finish Family: Black
Fire Rated: No
Fire Rating: No
For Use With: Tubular Vertical Rods for Glass Single Doors
Frame Application: Hollow Metal, Aluminum, or Wood
Function: Fail Safe/Fail Secure
Grade: Grade 1
Holding Force: 1500 lbs.
Installation: Commercial
Limited Warranty: 5 Years
Operating Voltage: 12/24 VDC
Pack Qty: 1
Series: 9100 Series Electric Strikes
Subtype: Electric Strikes
Switch Type: Latchbolt Strike Monitor
Type: Electric Strikes, Bolts, Magnets
Ul Listing: 1034, 294 & 305
Unit of Measure: Each
Resources
- 9100 Series Electric Strikes Cut Sheet
- 9100 Series Electric Strikes Installation Instructions
- 9100 Series Electric Strikes Sell Sheet
