HES 740 Series Electric Strike – Reliable Door Hardware

Description

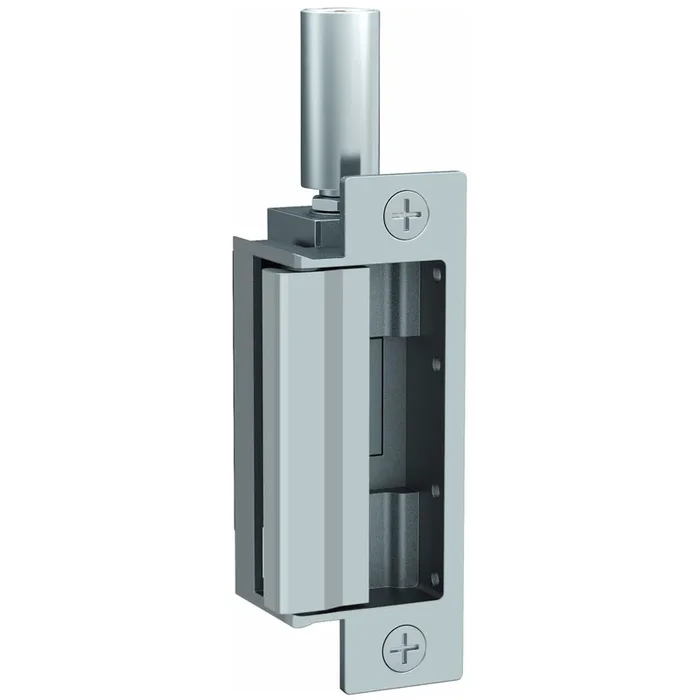

HES 7427512D630 75 12VDC Electric Strike Satin Stainless Steel Finish

Assa Abloy Electronic Security Hardware – Hes 7427512D630 75 12VDC Electric Strike Satin Stainless Steel Finish

• For Use With 1/2″**, 5/8″** Or 3/4″ Throw Latchbolts In Hollow Metal Frame Applications
• Ul 10C Fire-Rated, 3 Hour Single Door (Fail Secure Only)
• ANSI/BHMA A156.31, Grade 1
• Endurance 500,000 Cycles
• Non Handed

Attributes

Adjustability: Horizontal

Amp Draw: .29 Amps

Application: 3/4″ Latchbolt

Baa Qualified: Yes

Base Material: Stainless Steel

Commercial Residential: Commercial

Complete Pack Options: Complete Pack for 3/4″ throw latchbolt without deadbolt

Configuration: Universal

Country of origin: USA

Dynamic Strength (ft-lbs): 70

Endurance (cycles): 1,000,000

Faceplate Size: 4-7/8″ x 1-1/4″

Fail Safe | Fail Secure: Fail Safe/ Fail Secure

Finish: 630 Satin stainless steel

Finish Family: Matte Silver

Fire Rated: Yes

Fire Rating: 3 Hours {A}

For Use With: Cylindrical Locks, Mortise Exit and Latch Locks

Frame Application: Metal

Frame Material: Metal

Function: Fail Secure

Grade: Grade 1

Holding Force: 1500 lbs.

Installation: Commercial

Keeper Size: 3/4″

Latchbolt Accommodation: Up to 3/4″

Limited Warranty: 5 Years

Lock Type: Cylindrical Lock|Mortise Lock

Monitoring Installation: Factory Configured

Monitoring Options: Latchbolt and locking cam monitor with auxiliary switch|NA

Operating Voltage: 12 VDC

Origin: USA

Pack Height: 2.5″

Pack Length: 7.5″

Pack Qty: 1

Pack Volume: 112.5 in³

Pack Width: 6″

Series: 7000 Series

Shim Type: Field Adjustable

Ship Weight: 2 lbs.

Strike: 75 12VDC Electric Strike

Strike Body Depth (in): 1.9375

Strike Body Height (in): 4.875

Subtype: Electric Strikes

Surface Mounting: Cutting required

Tamper Resistant: Yes

Type: Electronics

Unit of Measure: Each

Upc: 740090055176

Voltage: 12/24

Warranty: SecuriCare five-year, no fault, no questions asked warranty

Resources

• AA ESH Electric Strike Overview
• EMS Electric Strike Selector Guide
• Electric Strike Compatibility Chart
• Electric Strike Selector Guide
• HES BP1312-19771208 UL Certificate of Compliance
• HES Electric Strike Overview Brochure
• HES Electric Strikes BHMA Grade 1 Certification
• HES FA 742 Series Electric Strike Catalog Page
• HES Folder Adam 742 Electric Strike Cal Fire Certificate of Compliance
• HES Folger Adam 700 Electric Strikes Installation Instructions
