Description

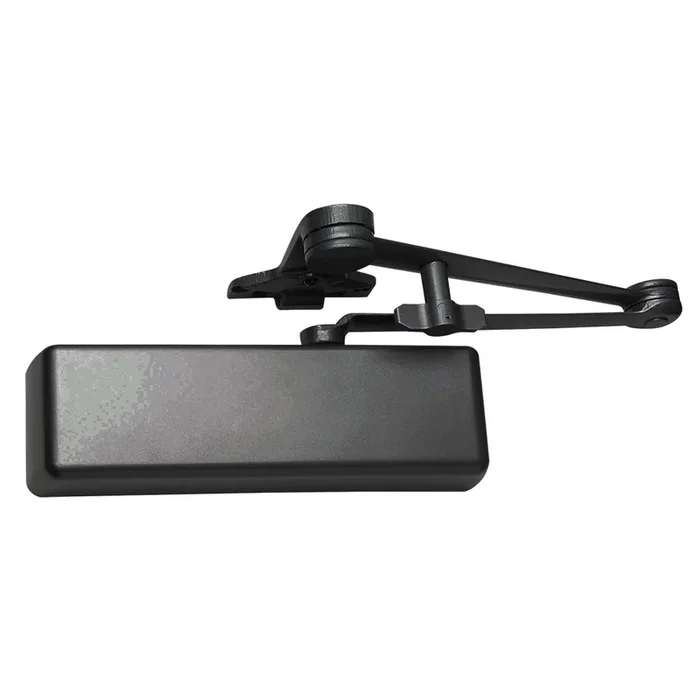

LCN 4111-SHCUSH LH 693 Heavy-Duty Surface Closer – GLBLK
LCN 4111-SHCUSH LH 693 Heavy Duty Surface Closer GLBLK is a Grade 1 surface door closer expertly engineered for institutional and high-traffic environments. This model features a spring hold open Cush-N-Stop arm with parallel arm mounting, allowing for a smooth operation with a swing of up to 110 degrees. Sized for doors ranging from 1 to 5, it is designed to accommodate both interior and exterior applications, making it versatile for various installations. The 4111 series closer is constructed with a robust cast iron body and an extra-duty forged steel arm, ensuring durability and long-lasting performance. Installation is quick and efficient, thanks to the self-reaming and tapping screws included in the package. The full plastic cover in a sleek black finish not only enhances its aesthetic appeal but also provides extra protection. With adjustable cylinders for different door sizes and a backcheck feature operating at 75 degrees, this closer meets ADA requirements, making it compliant and user-friendly. Additionally, it is UL and cUL listed for self-closing doors without hold-open functionality. Designed for commercial use, the LCN 4111-SHCUSH is the perfect solution for those seeking reliability and quality in door control hardware.
HeavyDuty Surface Closer GLBLK
Grade 1 Surface Door Closer, Spring Hold Open Cush-N-Stop Arm, Push Side Parallel Arm Mounting, 110 Deg. Swing, Size 1 to 5, Full Plastic Cover, Black Finish, Left-Handed
The 4110 is LCN’s best performing parallel arm mounted heavy duty surface door closer designed for institutional and other high traffic applications.
The 4110 Series is LCN’s best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.
The 4110 Series is a cast iron closer that features an extra duty forged steel standard arm. The fast and accurate installation is also a feature that always impresses as well as the all weather fluid.
- Standard 4110 series closer is shipped with extra duty arm, standard plastic cover, 4110-201 fifth screw spacer and self reaming and tapping screws
- Sized cylinders adjustable for interior doors to 5’0” and exterior doors to 4’0”
- Non-sized cylinder adjustable for interior doors to 4’6” and exterior doors to 3’6”
- Closer mounts parallel arm, specify right or left swinging door
- 4111 cylinder meets ADA requirements
- Standard or optional custom powder coat finish
- Optional plated finish on metal cover, arm and fasteners
- Optional SRI primer for installations in corrosive conditions is available with powder coat only
- The 4110 Series is UL and cUL listed for self-closing doors without holdopen
- Tested and certified under ANSI Standard A156.4, grade one
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.4
Arm Type: Spring Hold Open Cush Arm
Baa Qualified: Yes
Back Check: 75 Deg.
Closer Size: 1 to 5
Cold Weather Fluid: Yes
Commercial Residential: Commercial
Cover: Full Plastic
Degree Hold Open: 110 Deg.
Degree Swing: 110 Deg.
Finish: 693
Finish Family: Black
Grade: Grade 1
Handing: Left-Handed
Hold Open: Yes
Installation: Commercial
Limited Warranty: 30 Years
Mounting Group: Hydraulic
Mounting Location: Push Side
Mounting Style: Parallel Arm
Pack Qty: 1
Reveal Size: Less Than 2-3/4″
Series: 4110 Series Surface Mounted Closers
Ship Weight: 15 lbs.
Stop: Spring Stop
Subtype: Surface Closers
Type: Surface
Ul Listing: UL Listed
Unit of Measure: Each
Resources
- 4110 Series Surface Mounted Closers Cut Sheet
- LCN 4000 Series Catalog
- LCN 4010, 4020 & 4110 Door Closer w/ Fusible Link Arm Installation Guide
- LCN 4110 Drop Plates Installation Guide
- LCN 4110 Peel-N-Stick CUSH Installation Guide
- LCN 4110 Peel-N-Stick Installation Guide
- LCN 4110 Series Cut Sheet
- LCN Closers & Auto Operators Installation Guide
- LCN Drop Plates Installation Guide for 4110, 4110 CUSH, 4210, 4210 CUSH, 4110T, 4210T
- Von Duprin Finishes Chart
